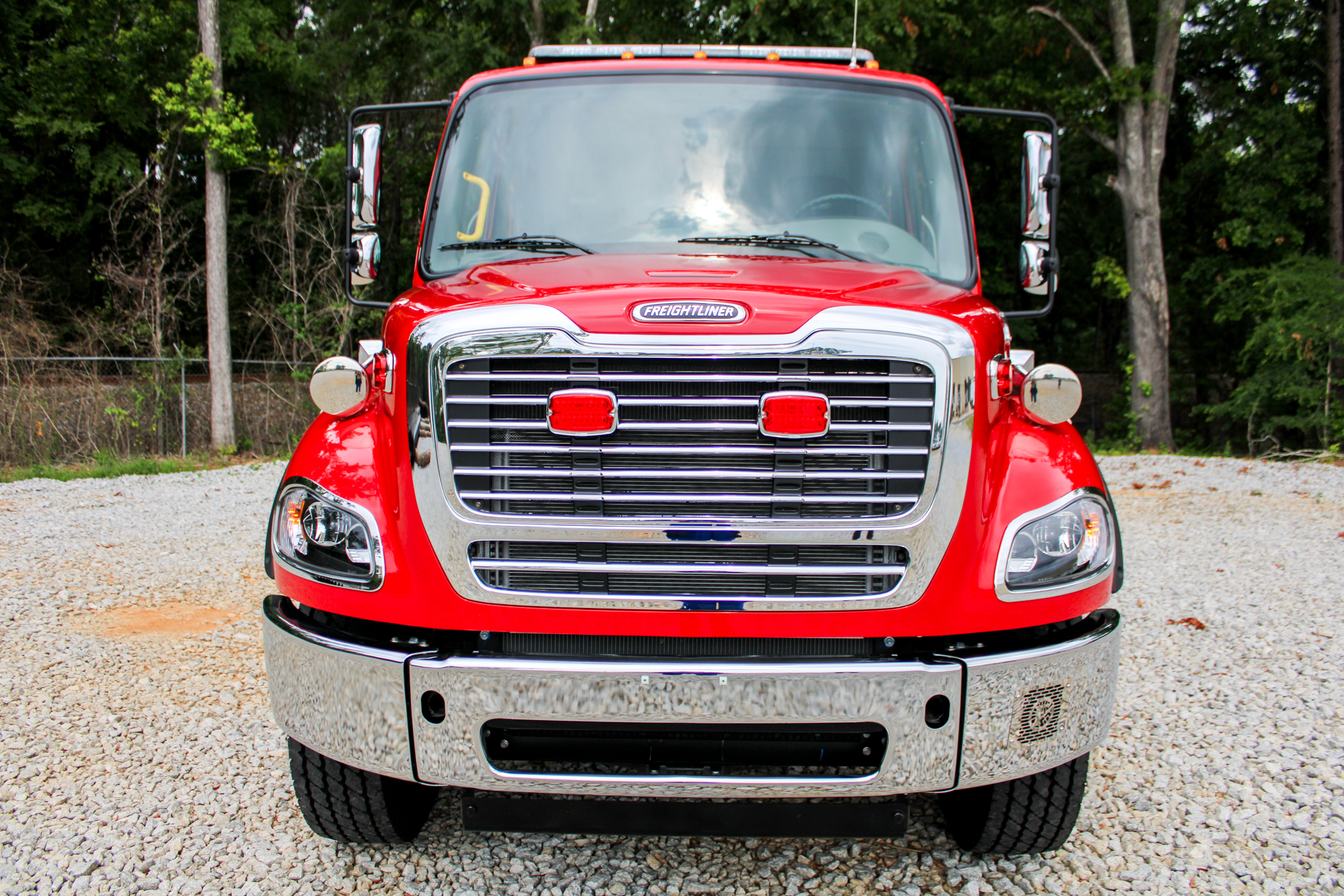

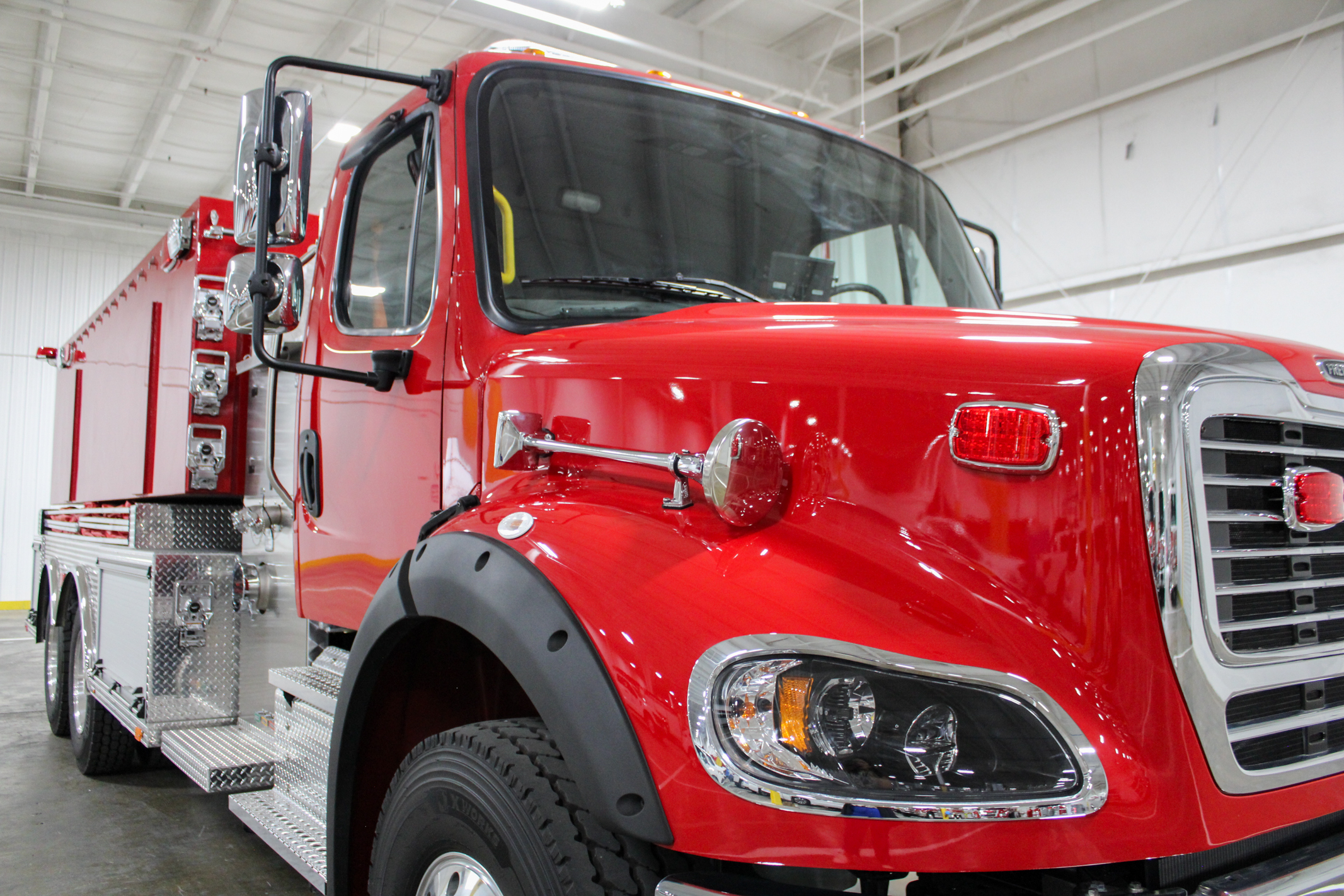

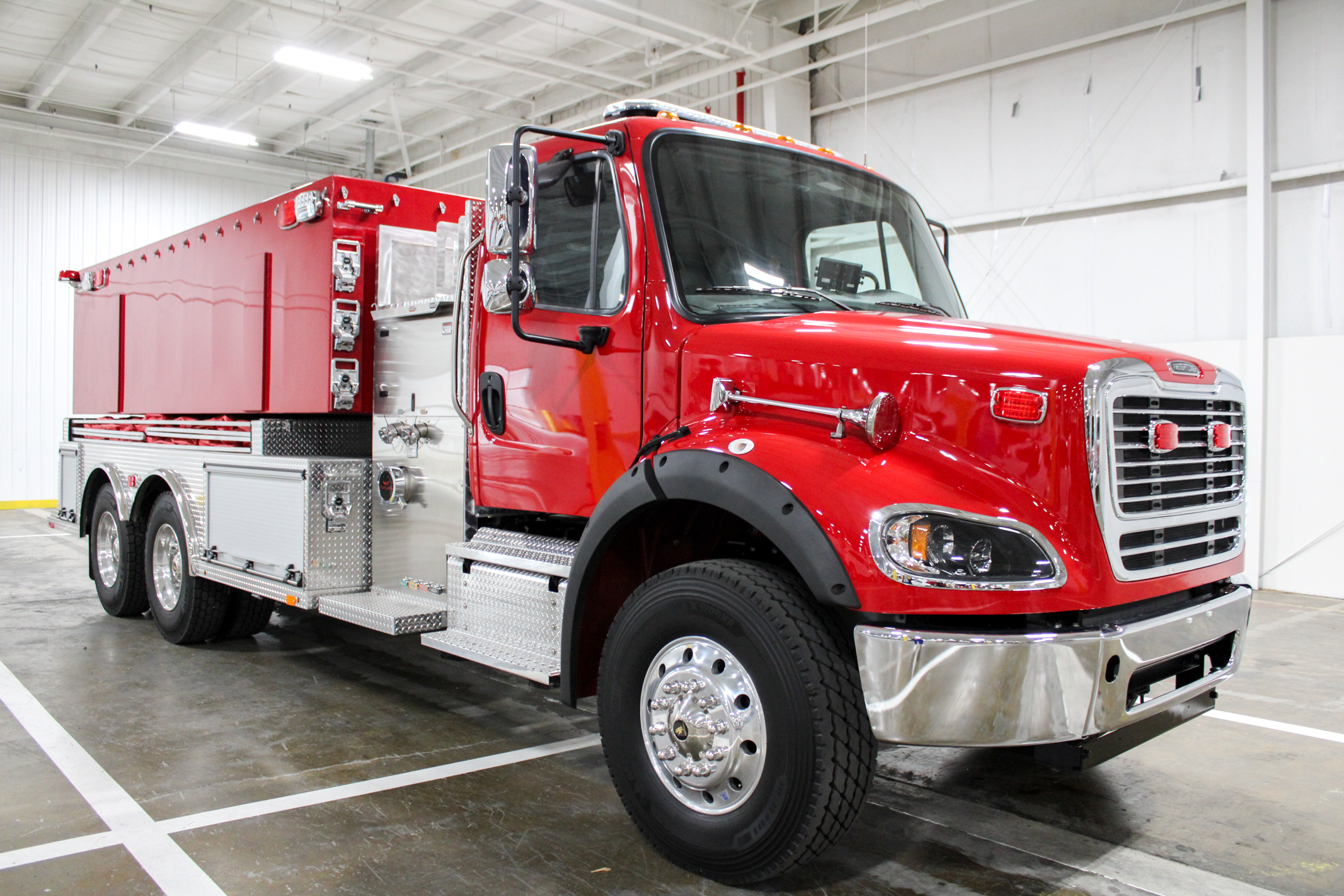

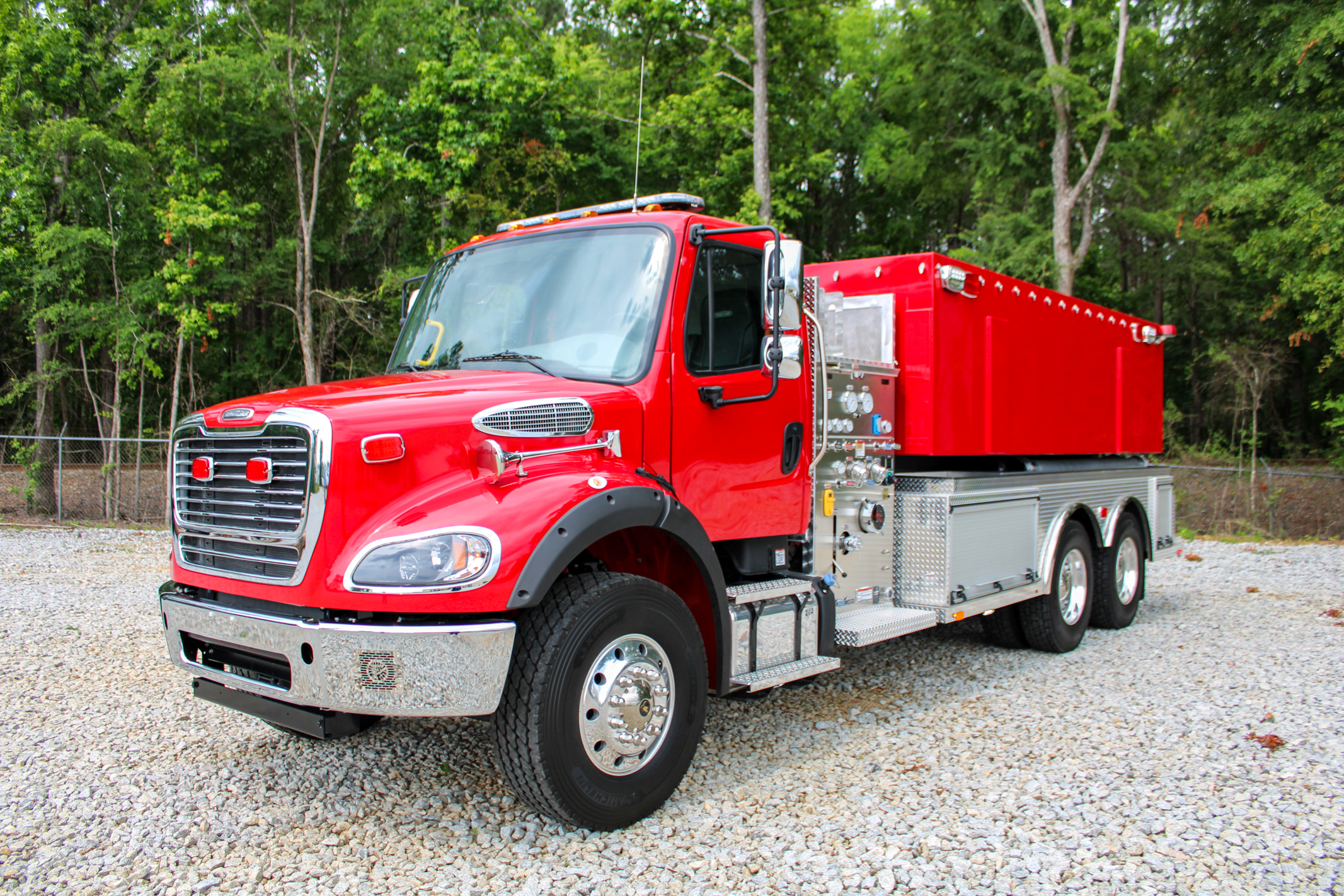

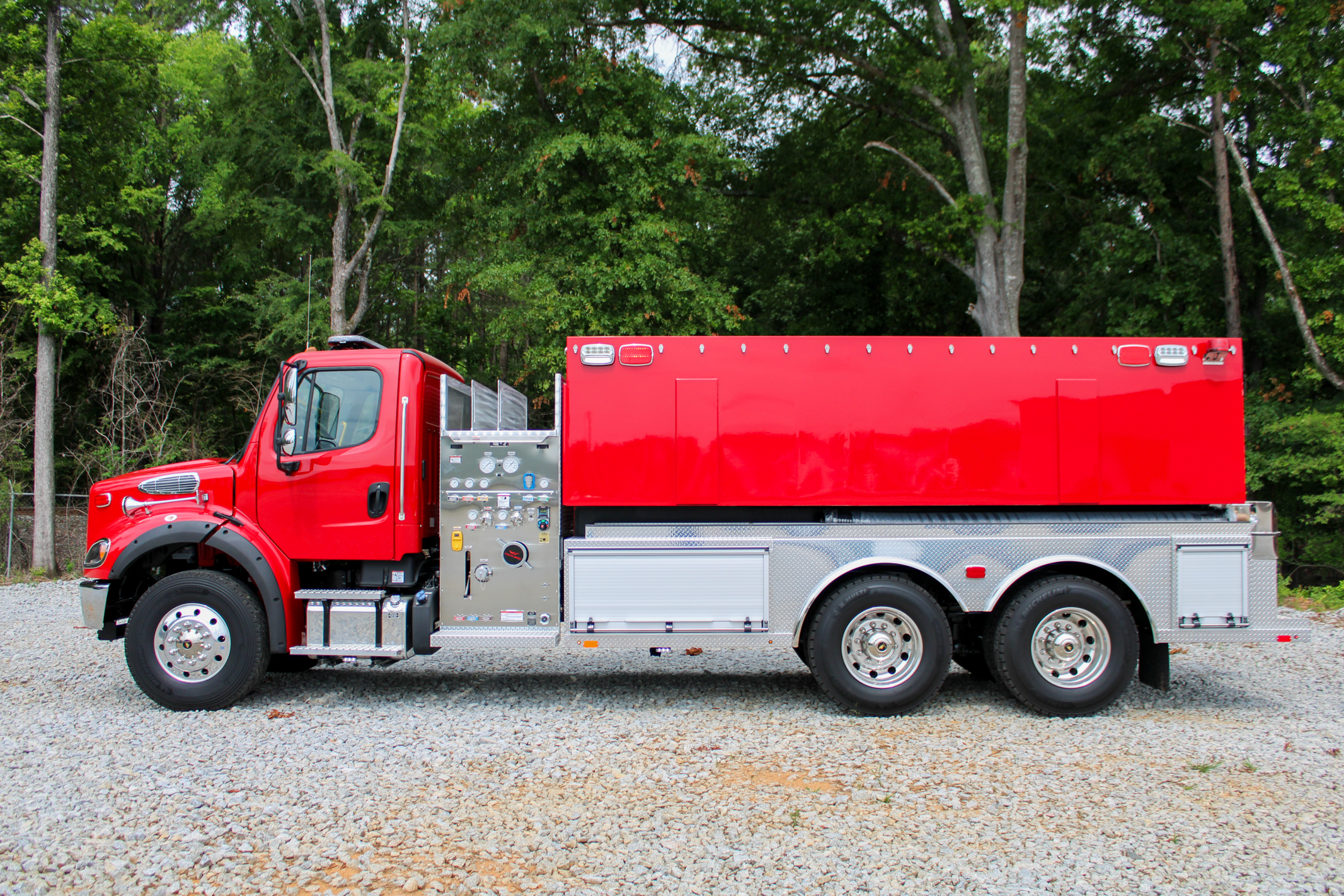

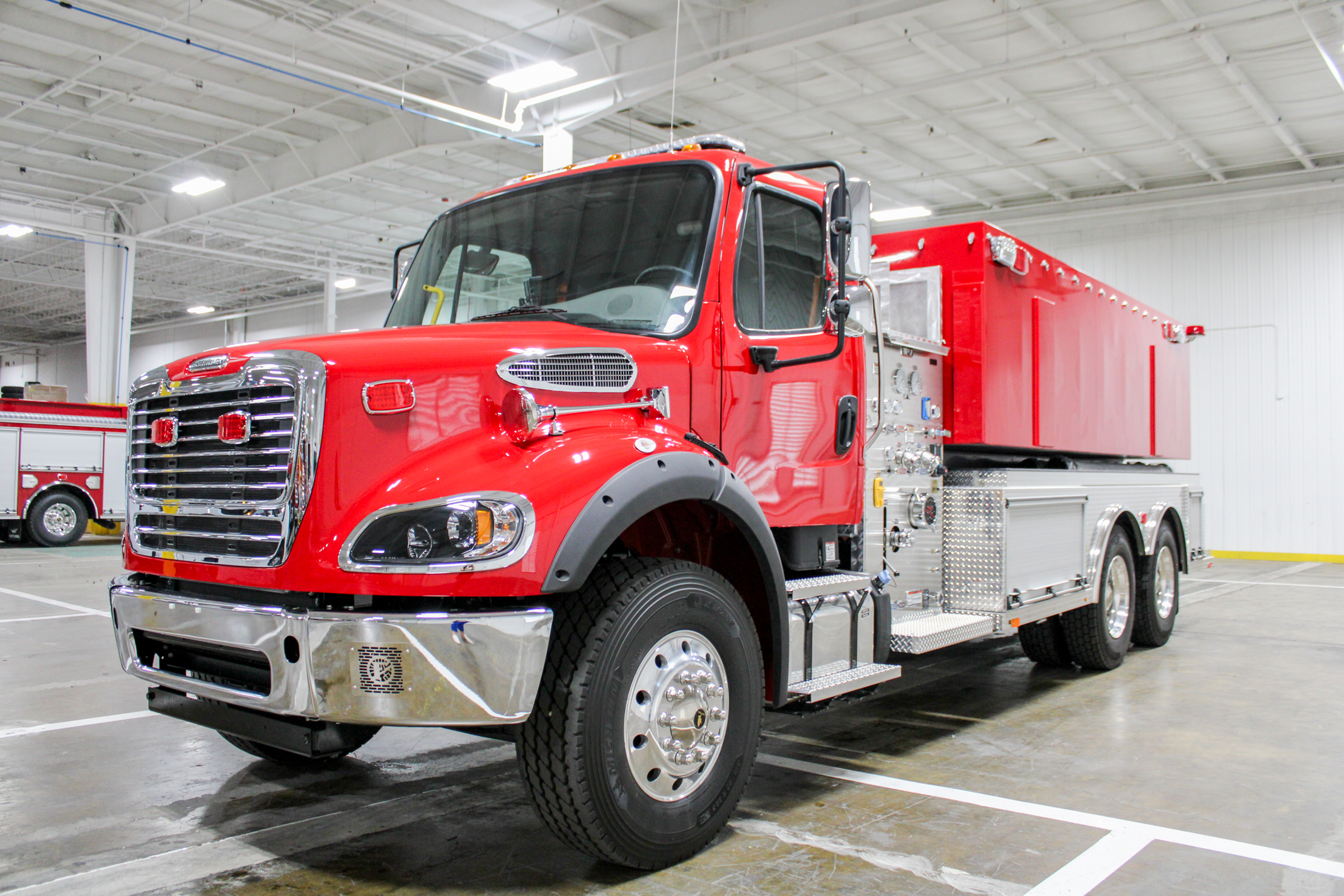

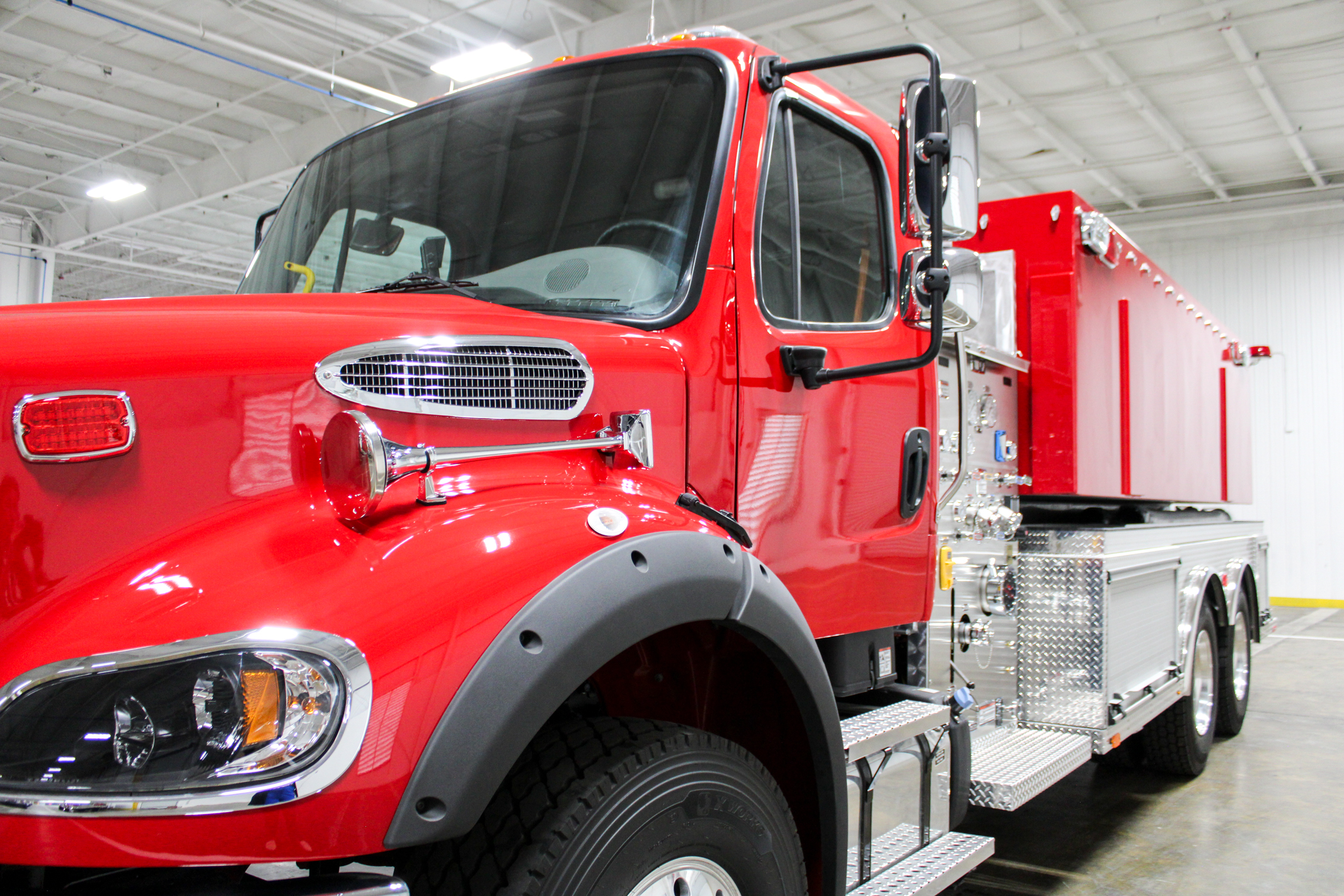

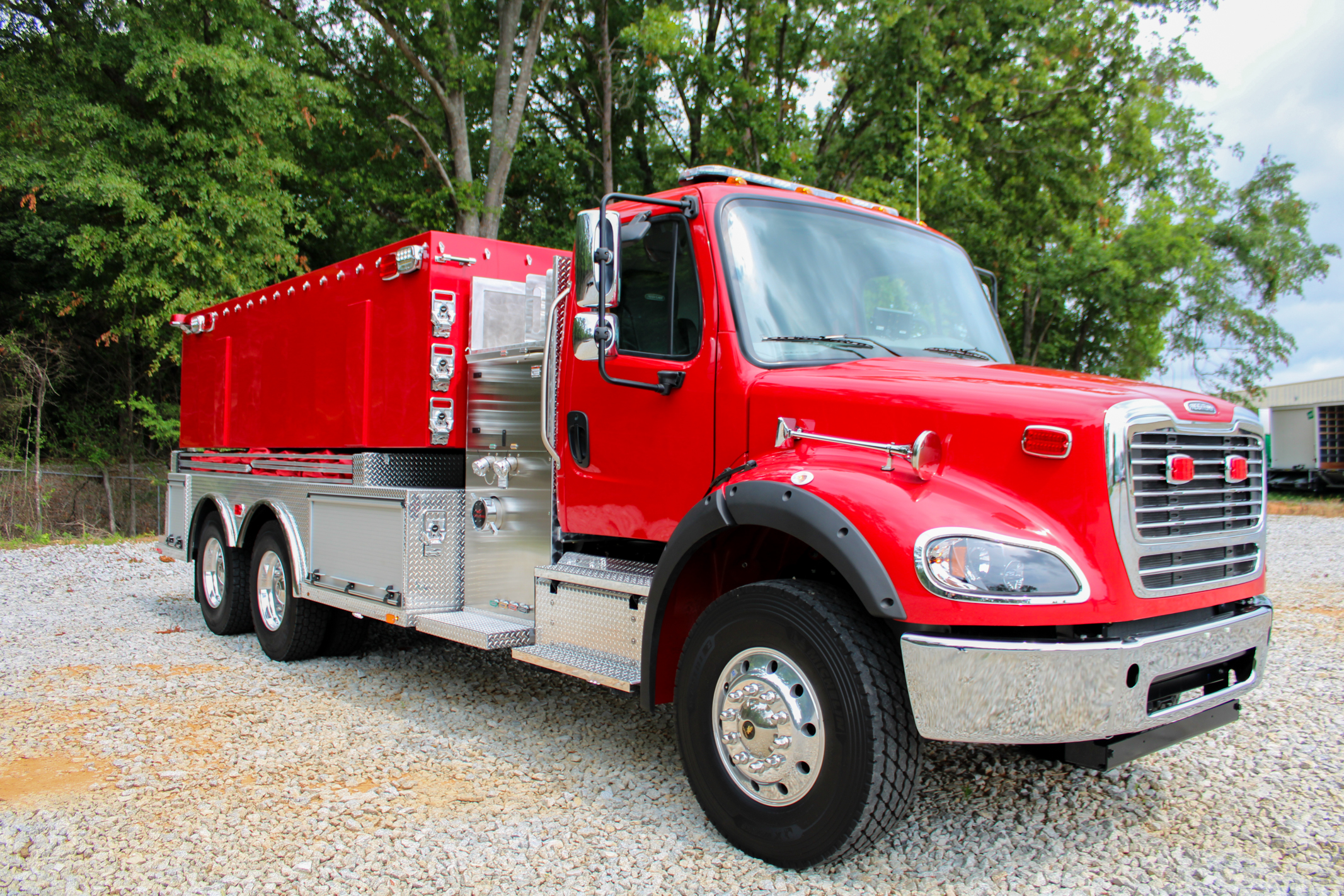

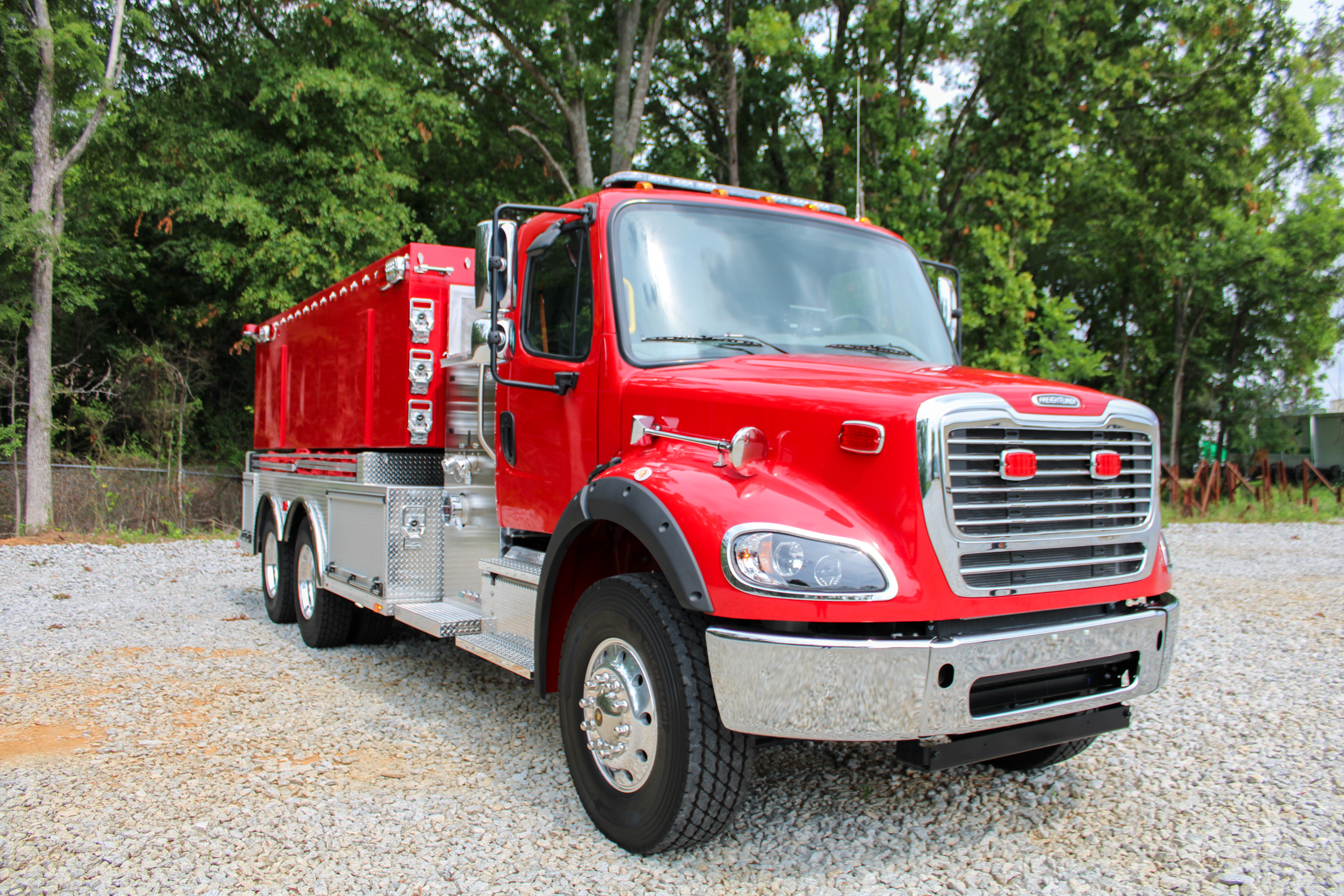

CHASSIS INFO:

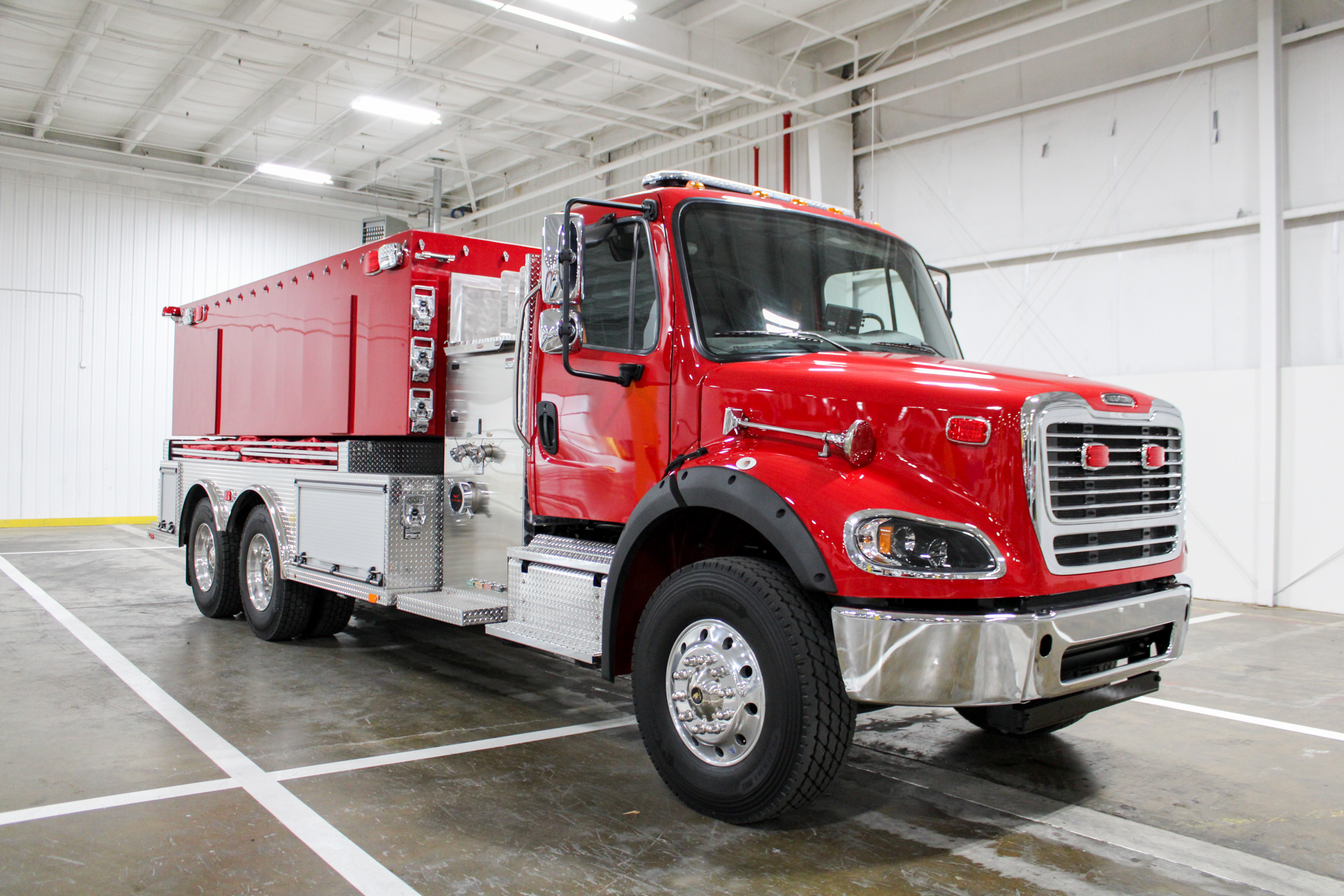

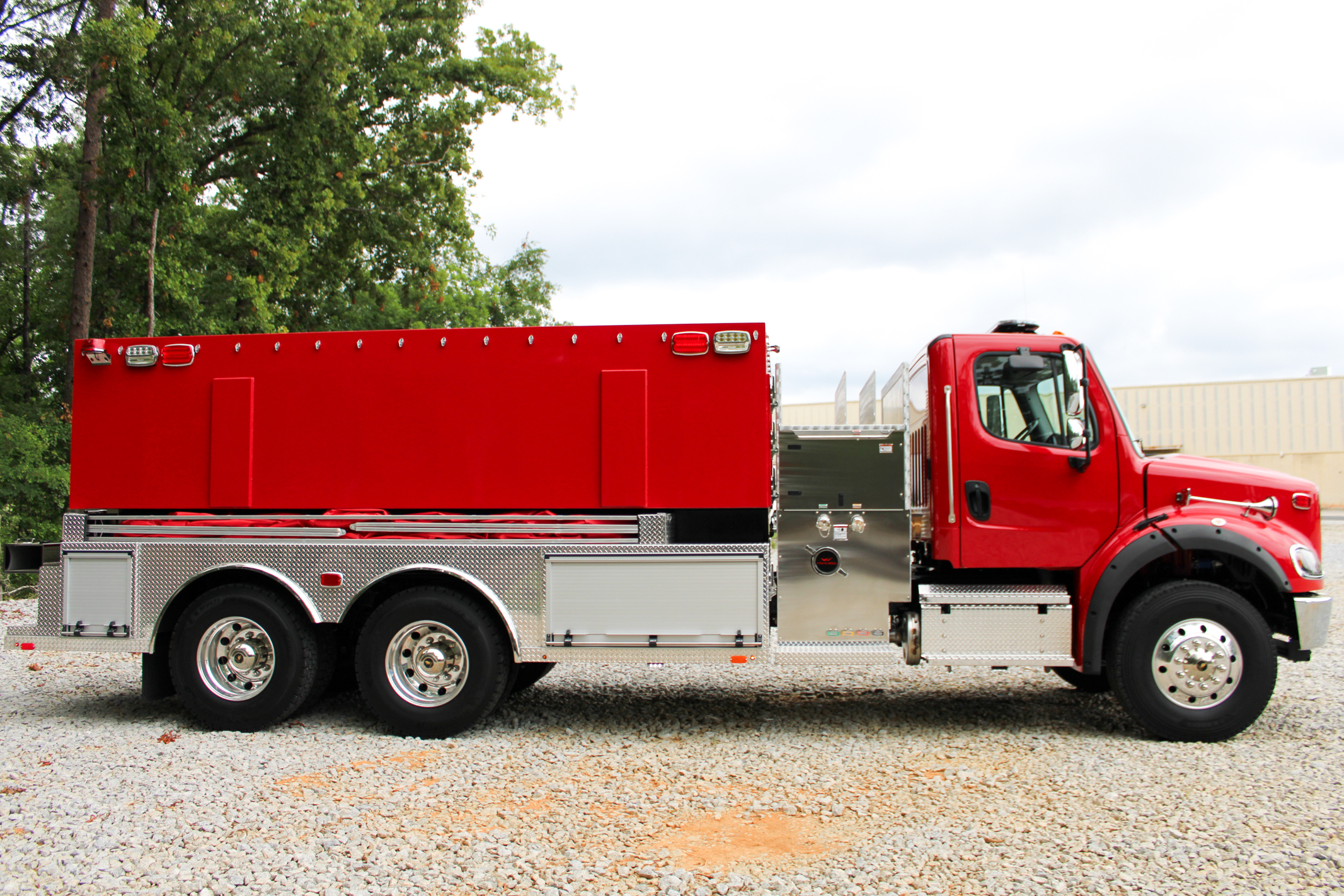

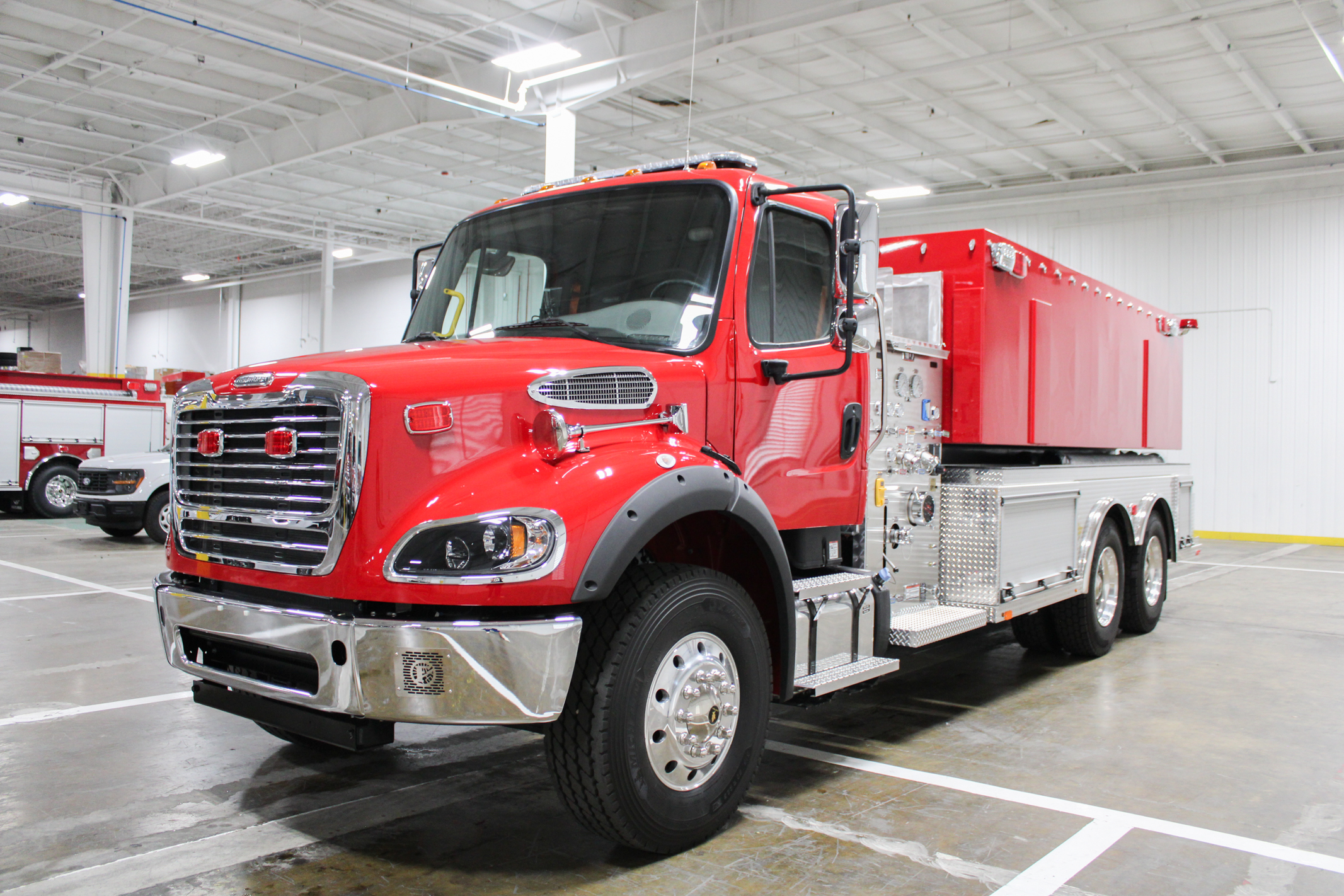

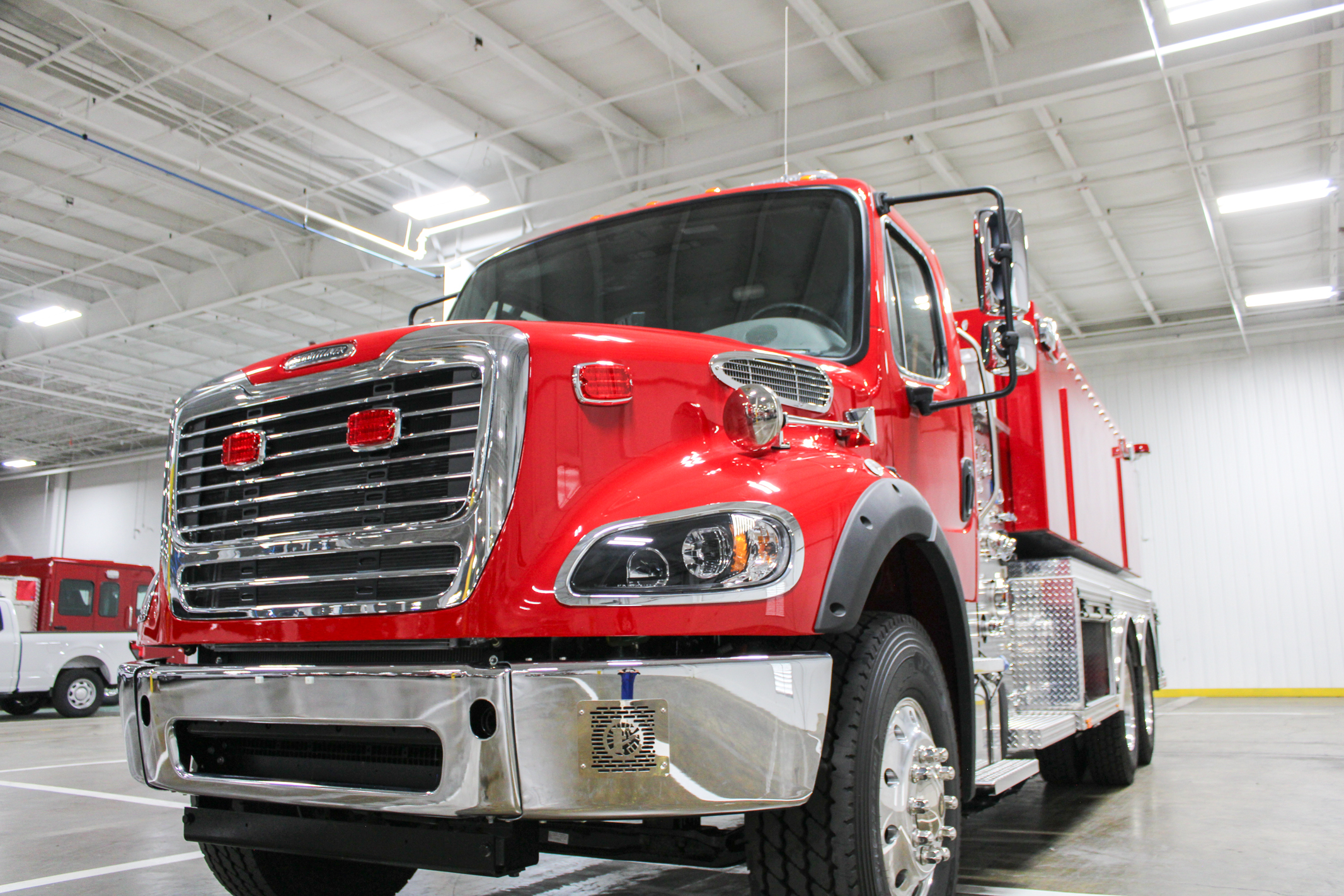

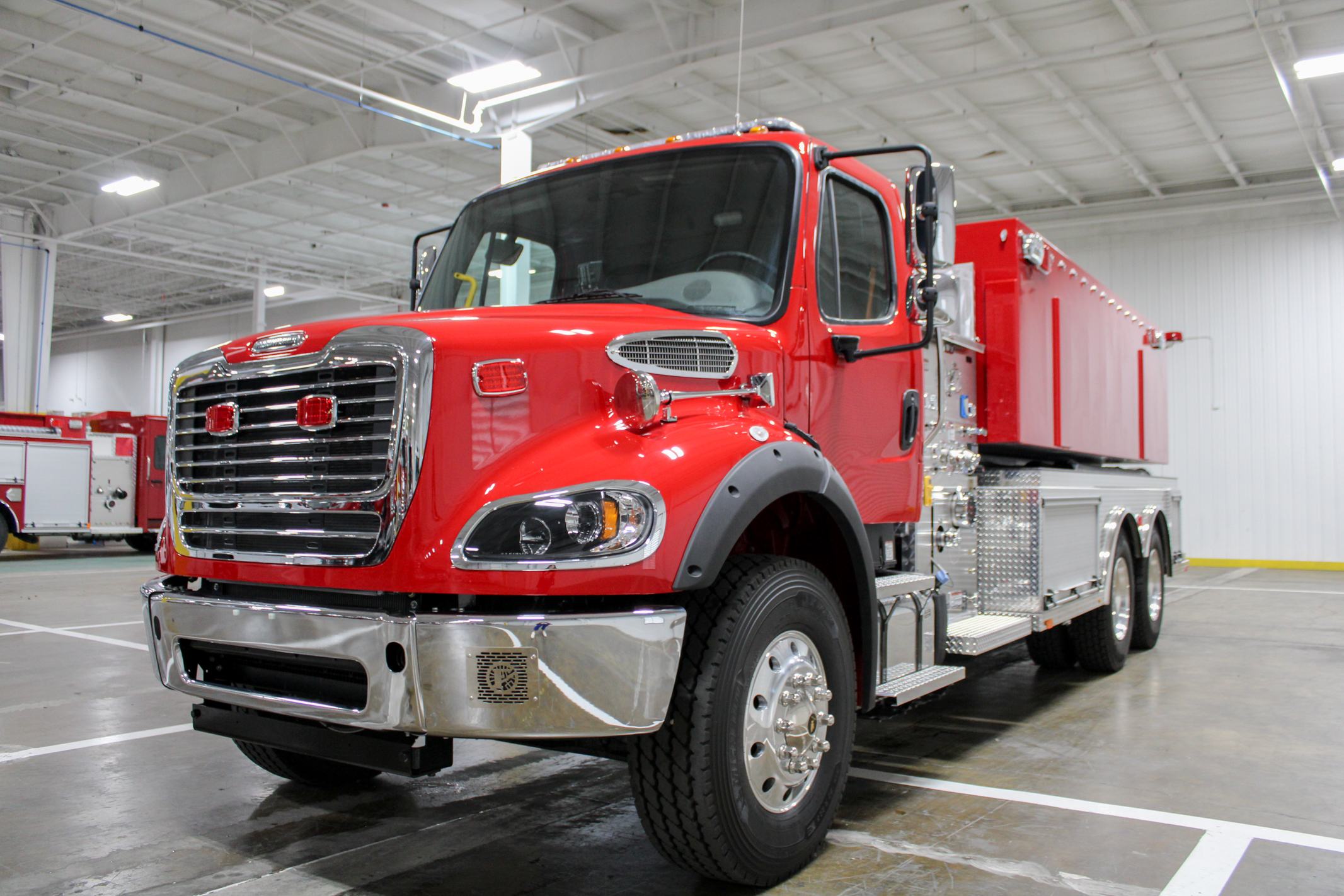

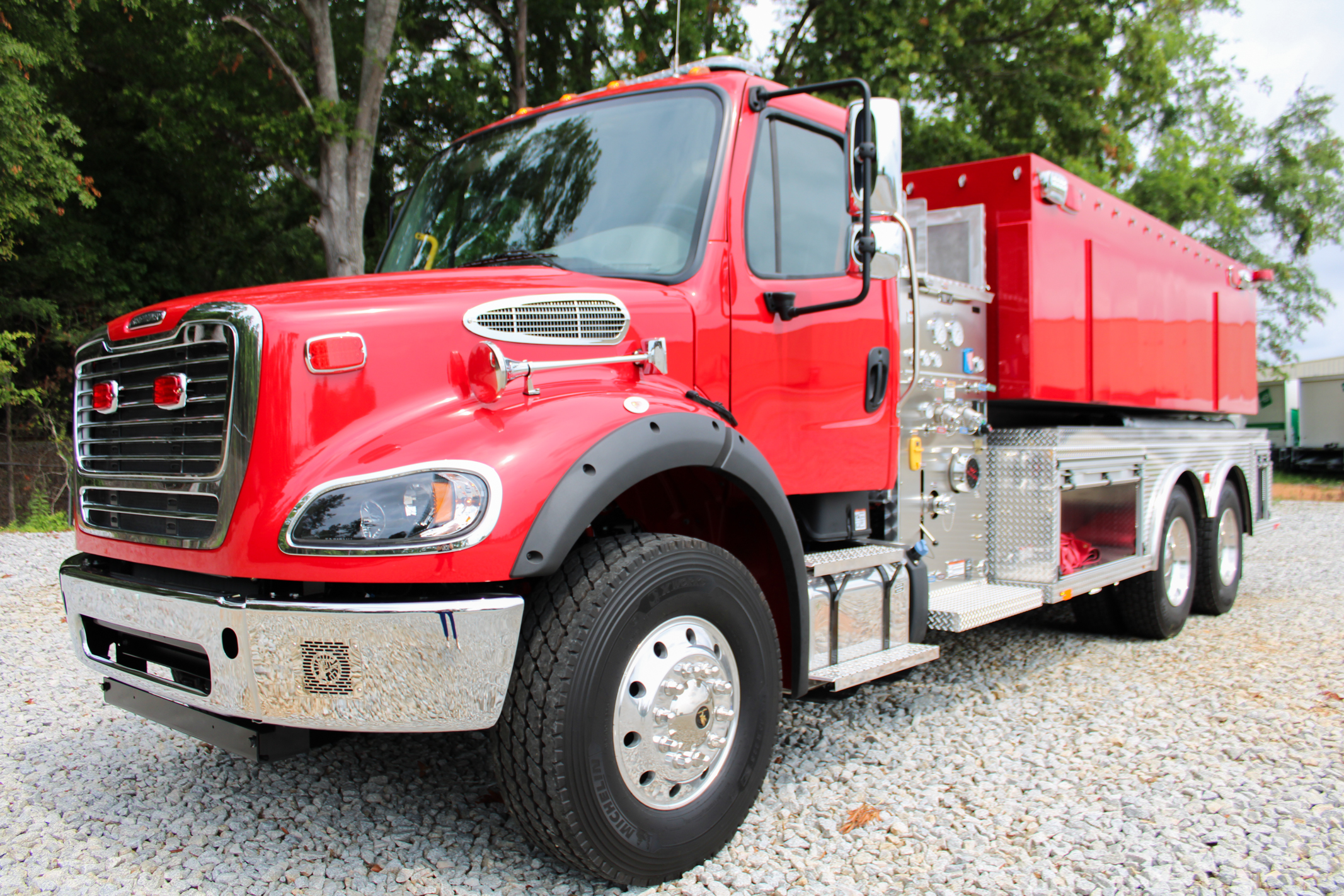

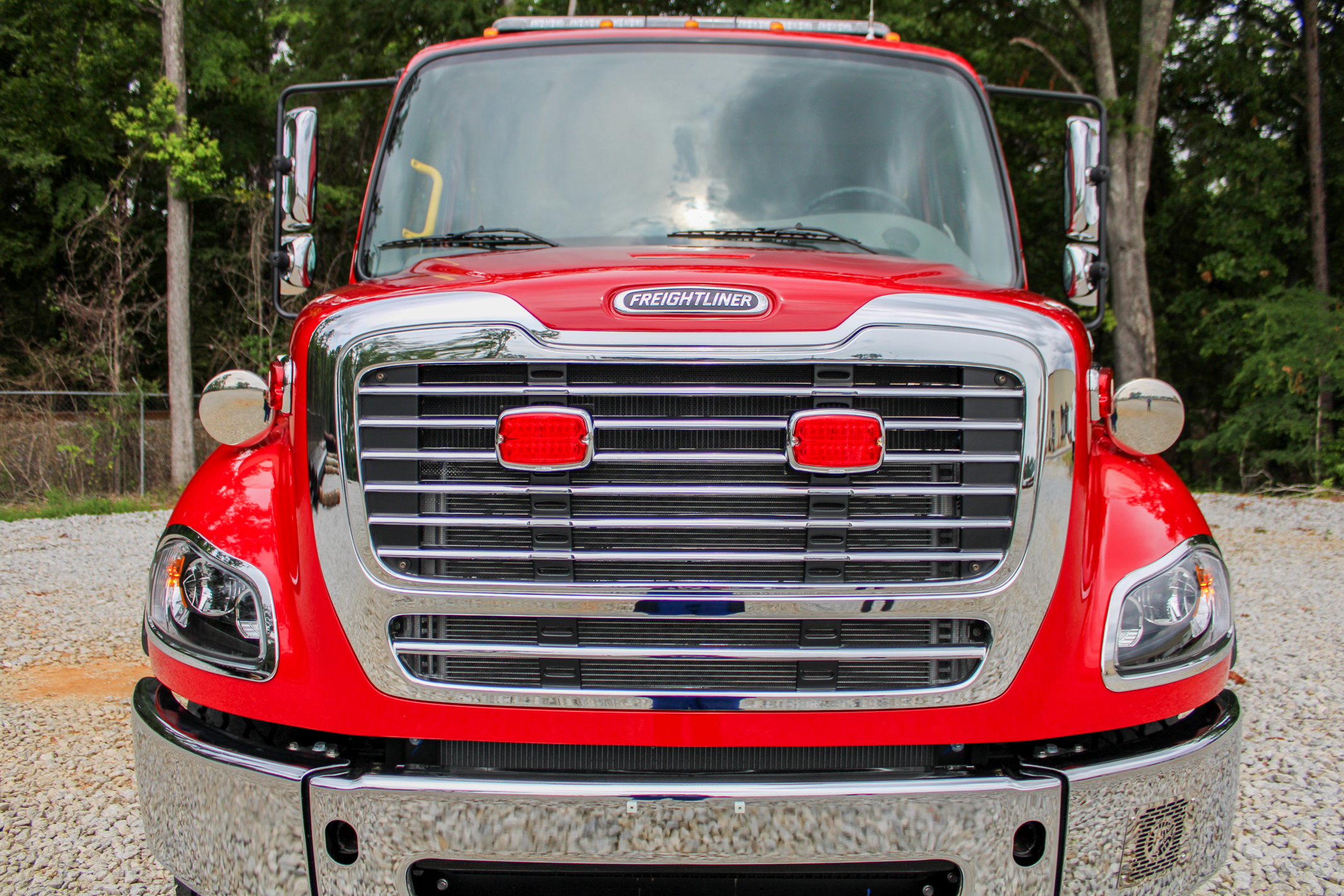

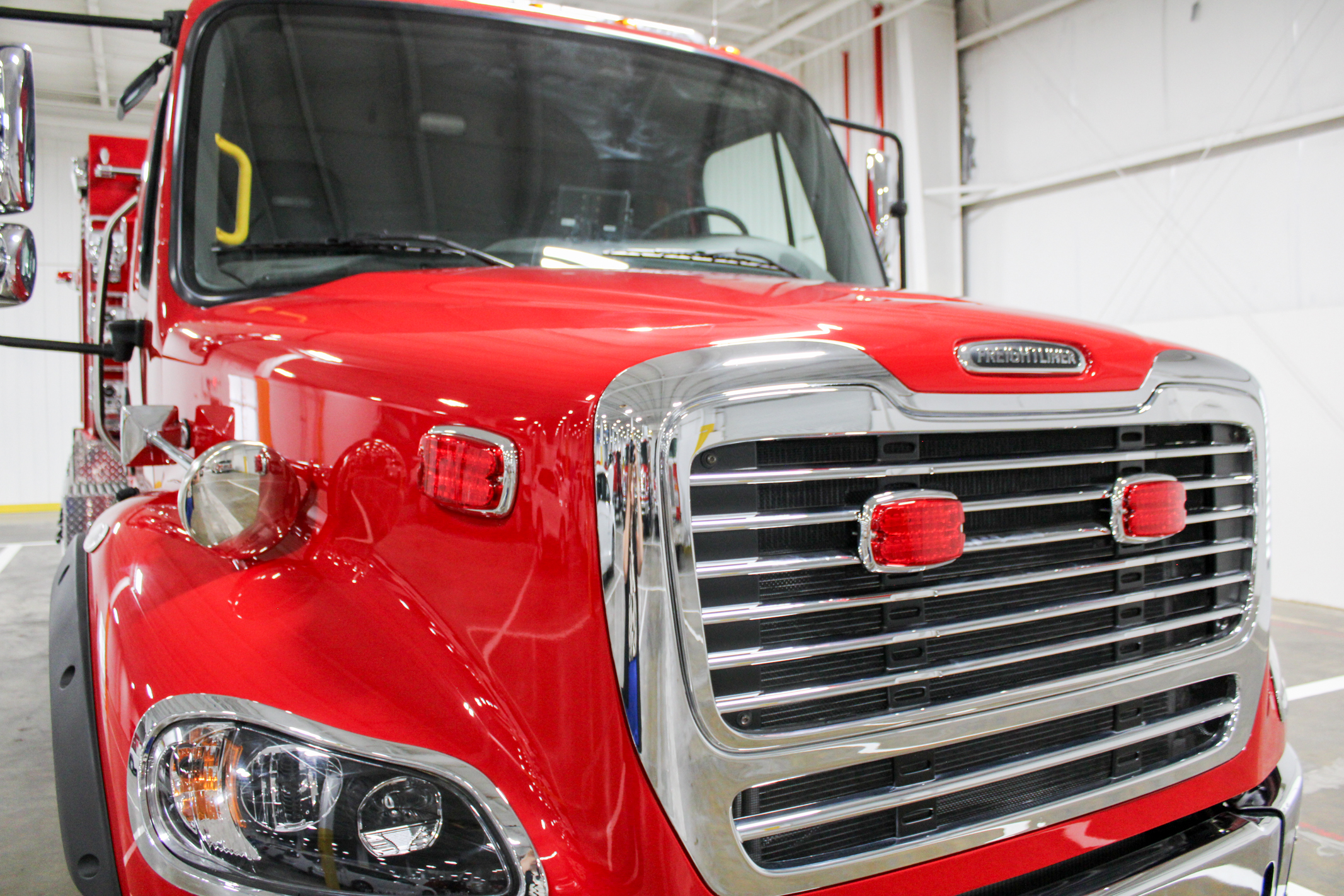

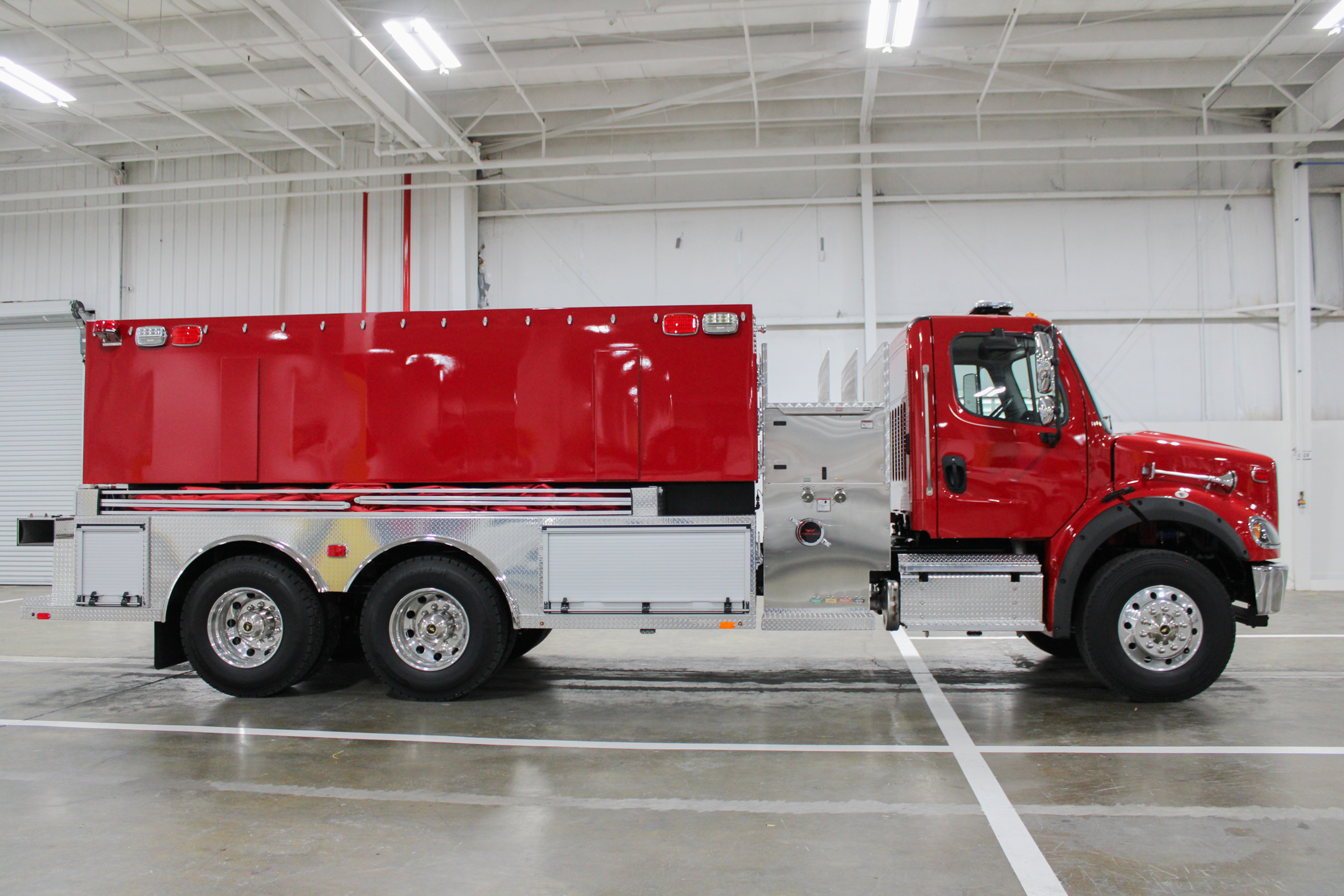

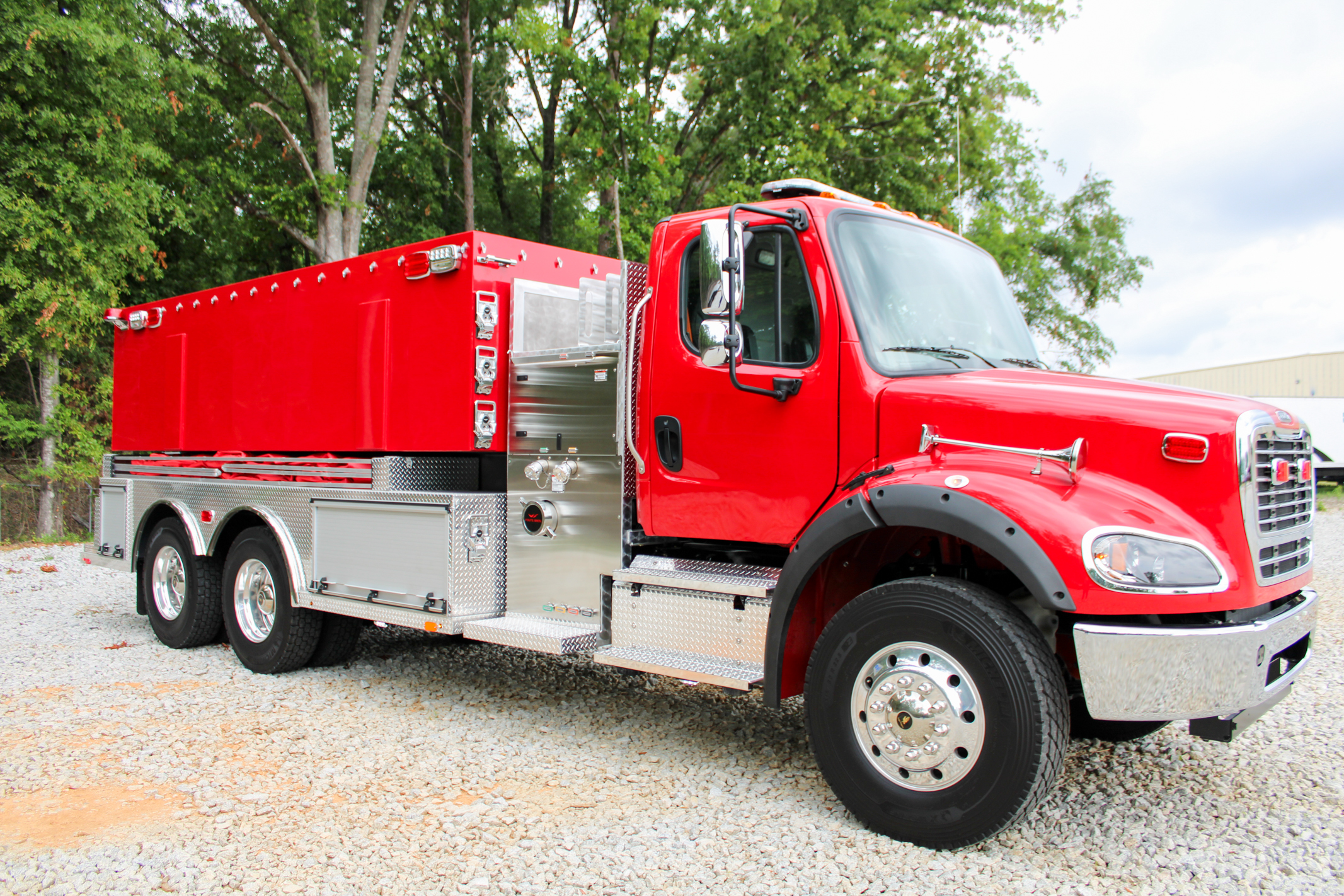

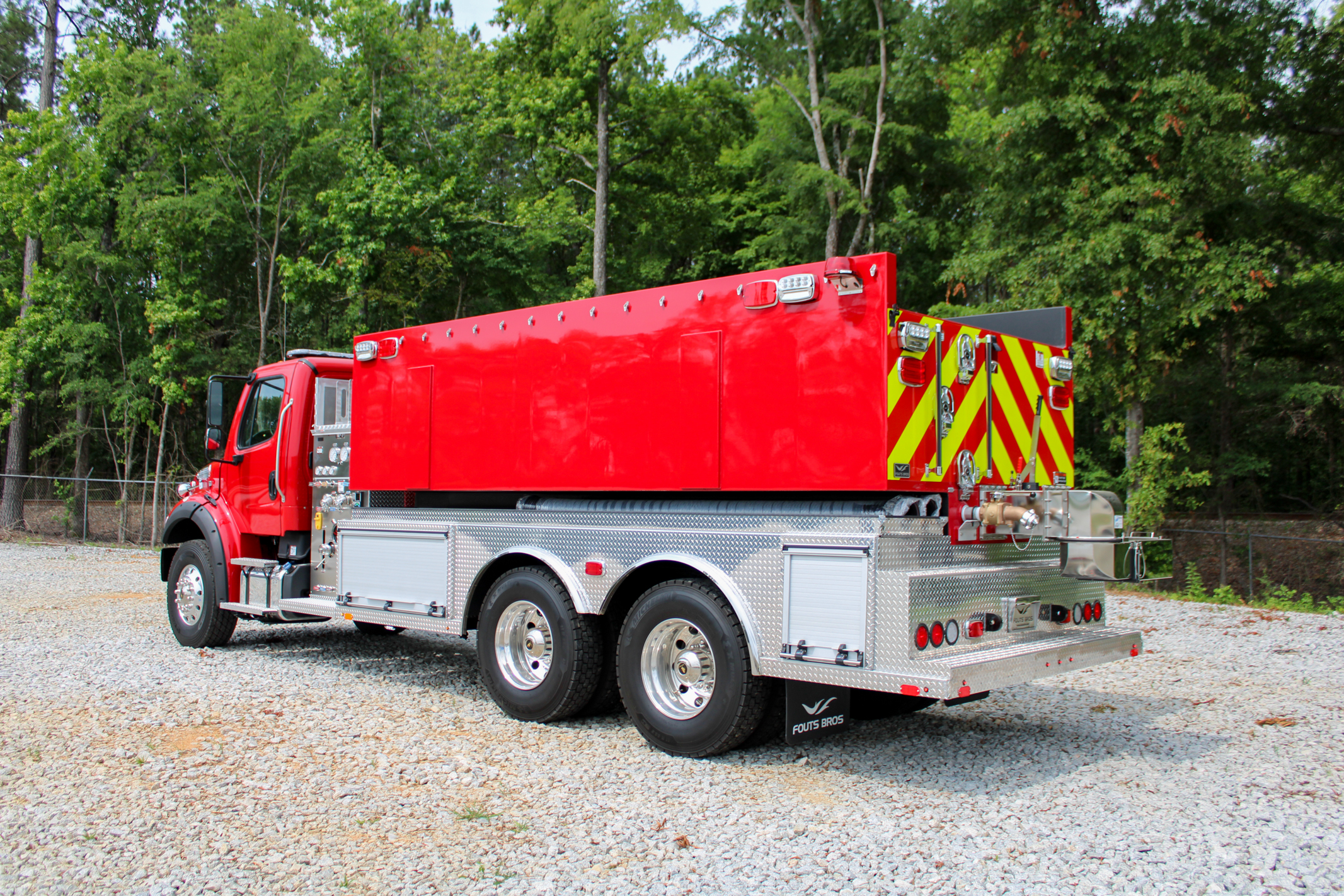

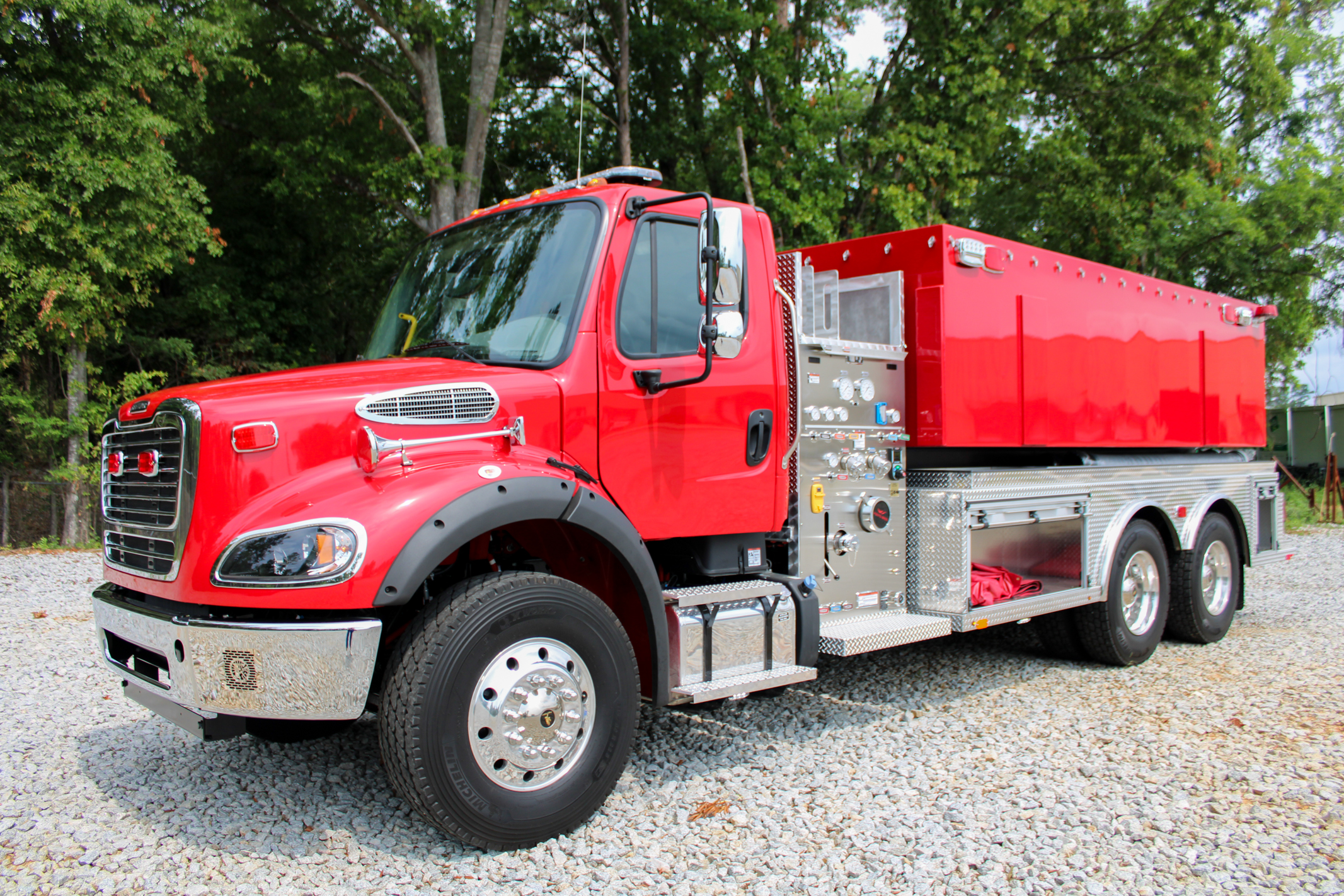

• CHASSIS: FREIGHTLINER, M2 112, 2 DOOR, TANDEM AXLE
• ENGINE: CUMMINS L9 360EV HP
• TRANSMISSION: ALLISON 3000EVS AUTO
• FRONT AXLE: 14,700 LBS.
• REAR AXLE: 40,000 LBS.
• PAINT COLOR: RED ELITE EY

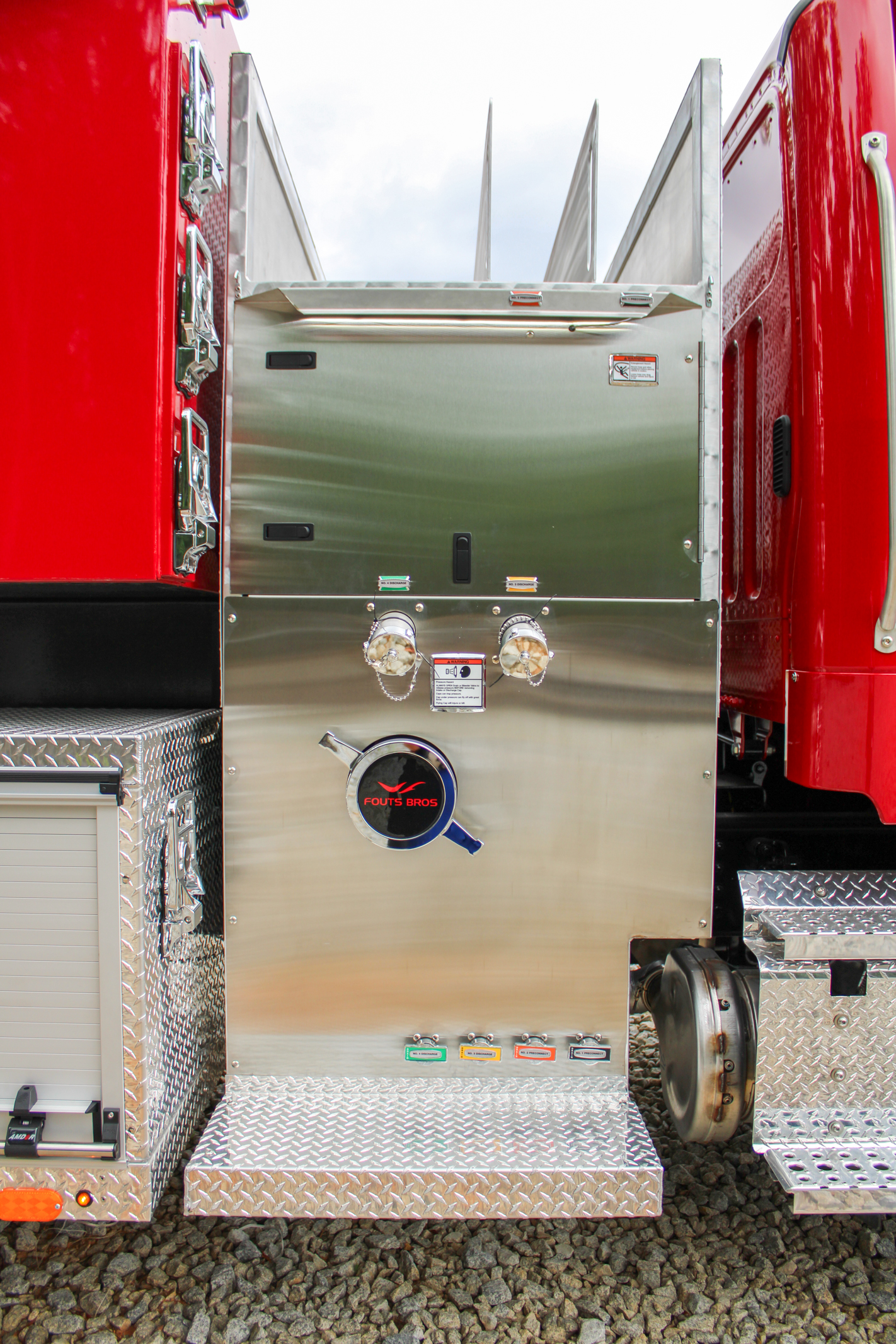

PUMP INFO

• PUMP: HALE MBP, 1000GPM, SIDE MOUNT, 36.00”

INTAKES

• DRIVER SIDE: ONE (1) 6.00″ & ONE (1) 2.50″ AUX
• OFFICER SIDE: (1) 6.00”

DISCHARGES

• DRIVER SIDE: TWO (2) 2.50″
• OFFICER SIDE: TWO (2) 2.50″
• PRECONNECTS: TWO (2) 1.75″ & ONE (1) 2.50″

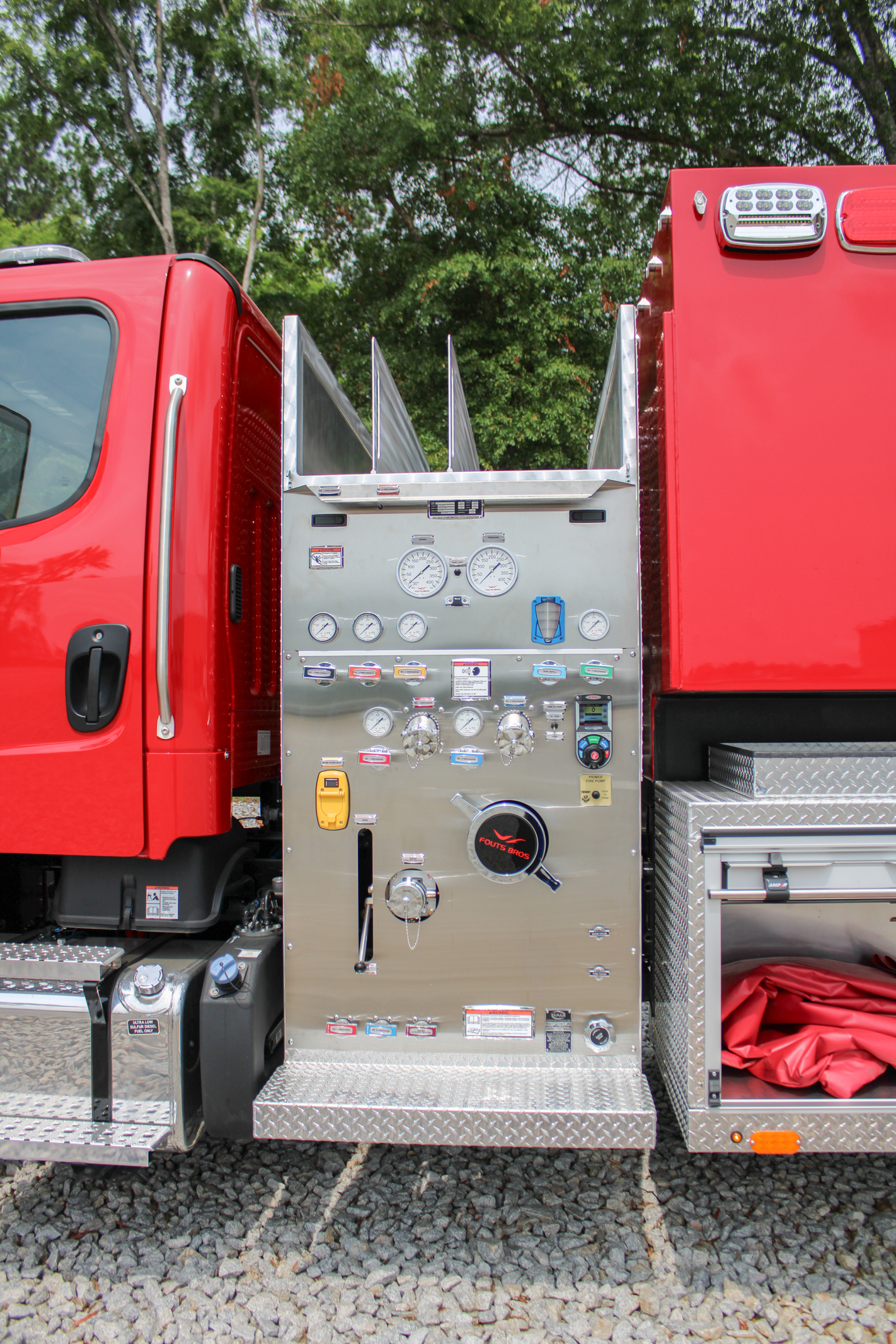

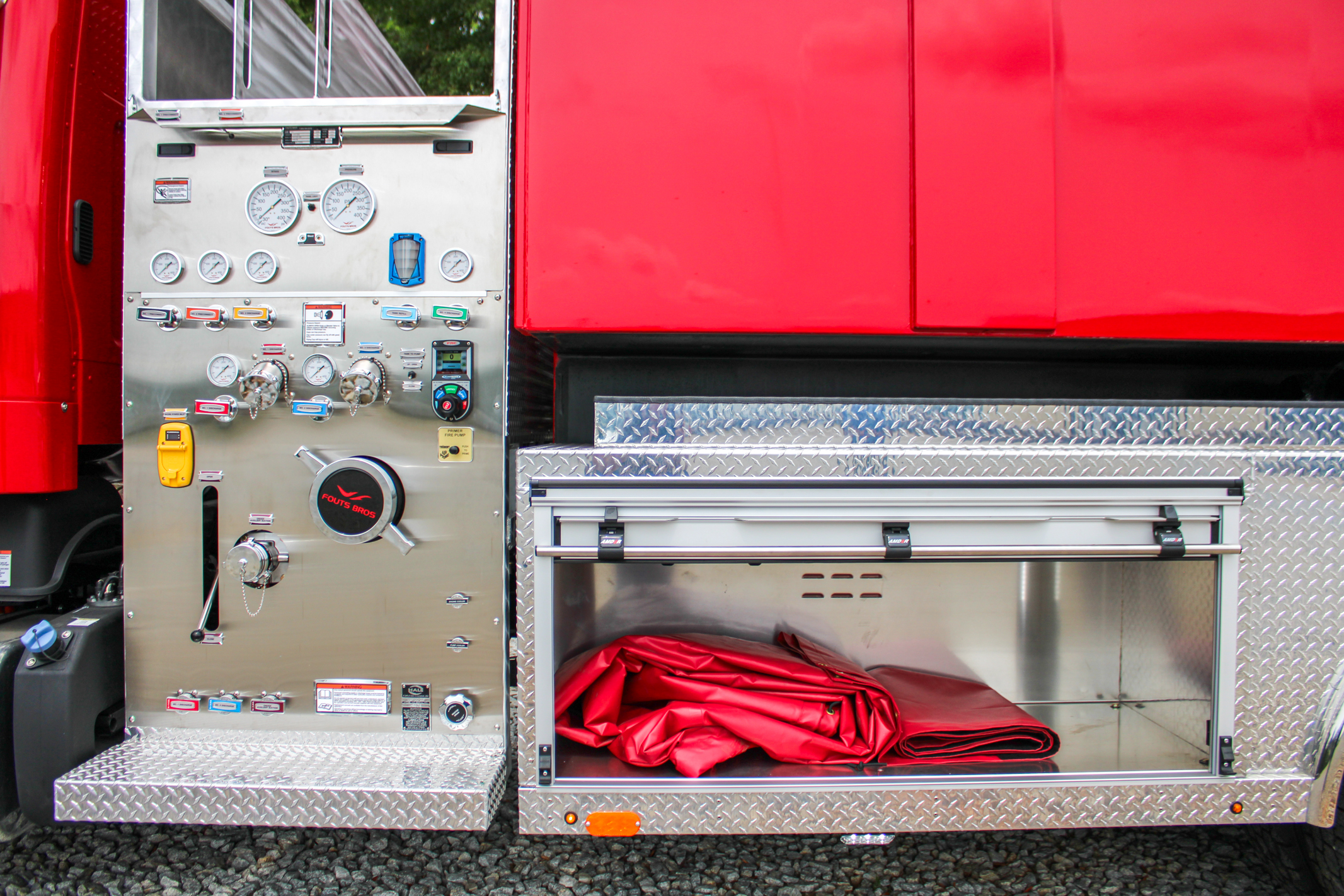

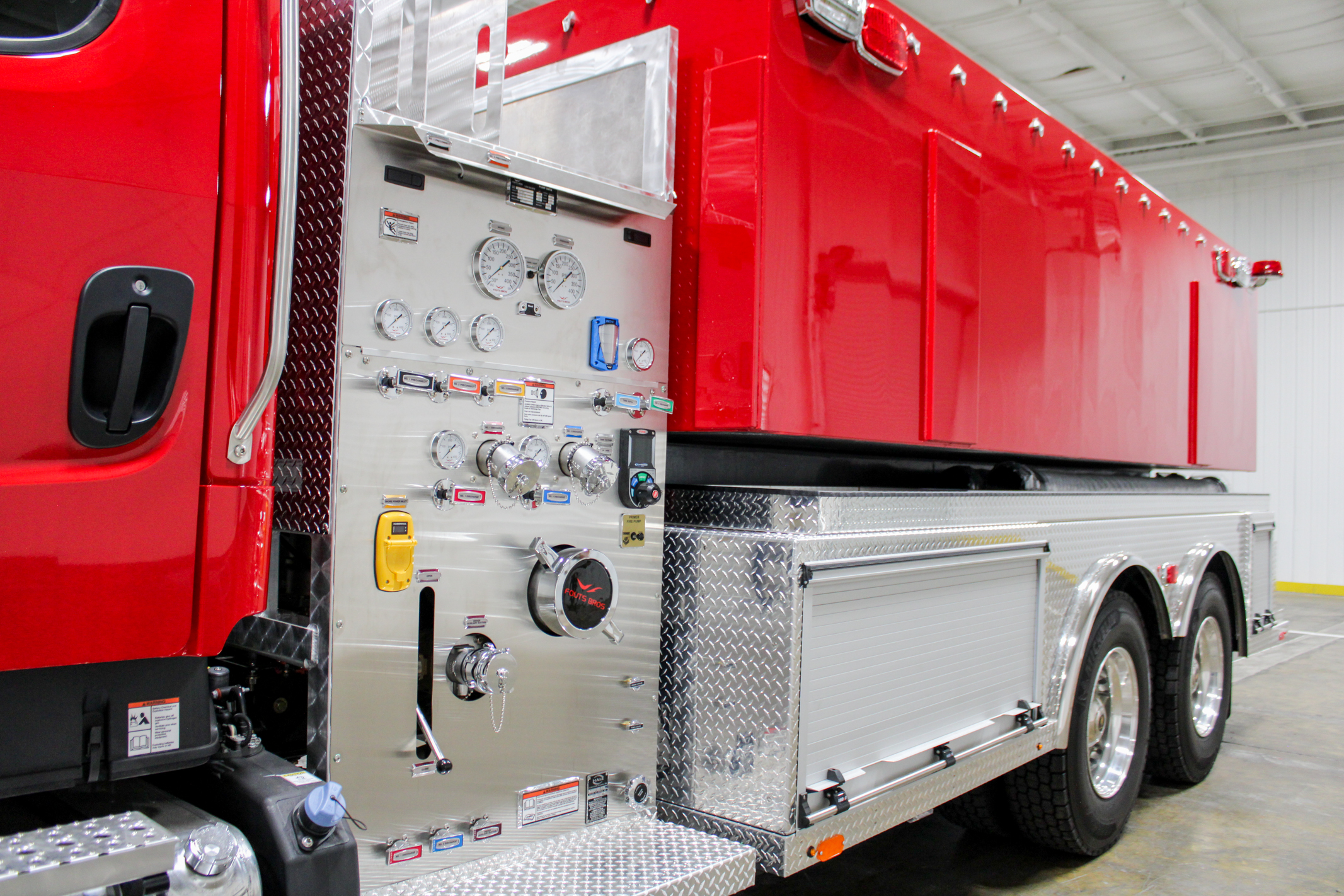

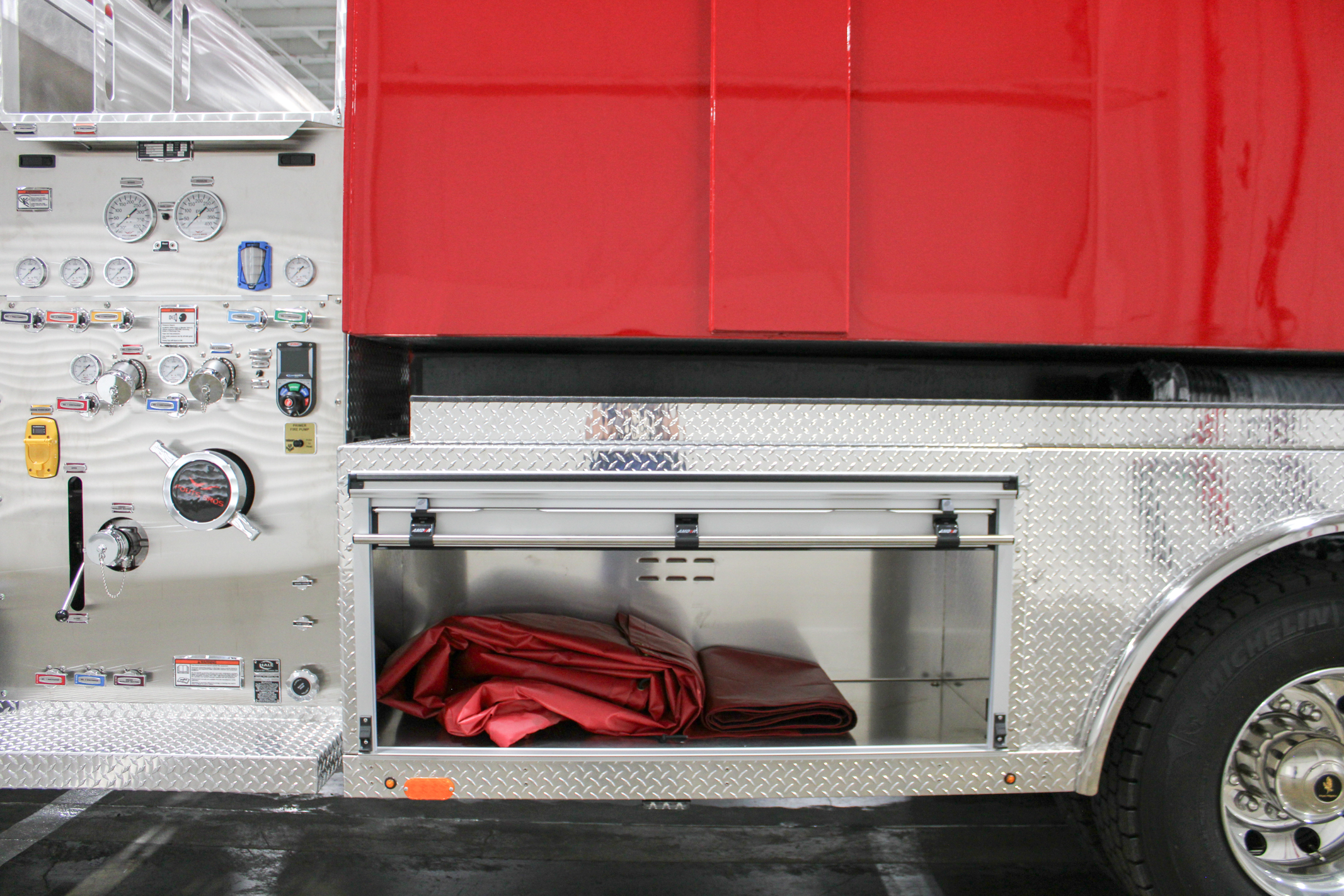

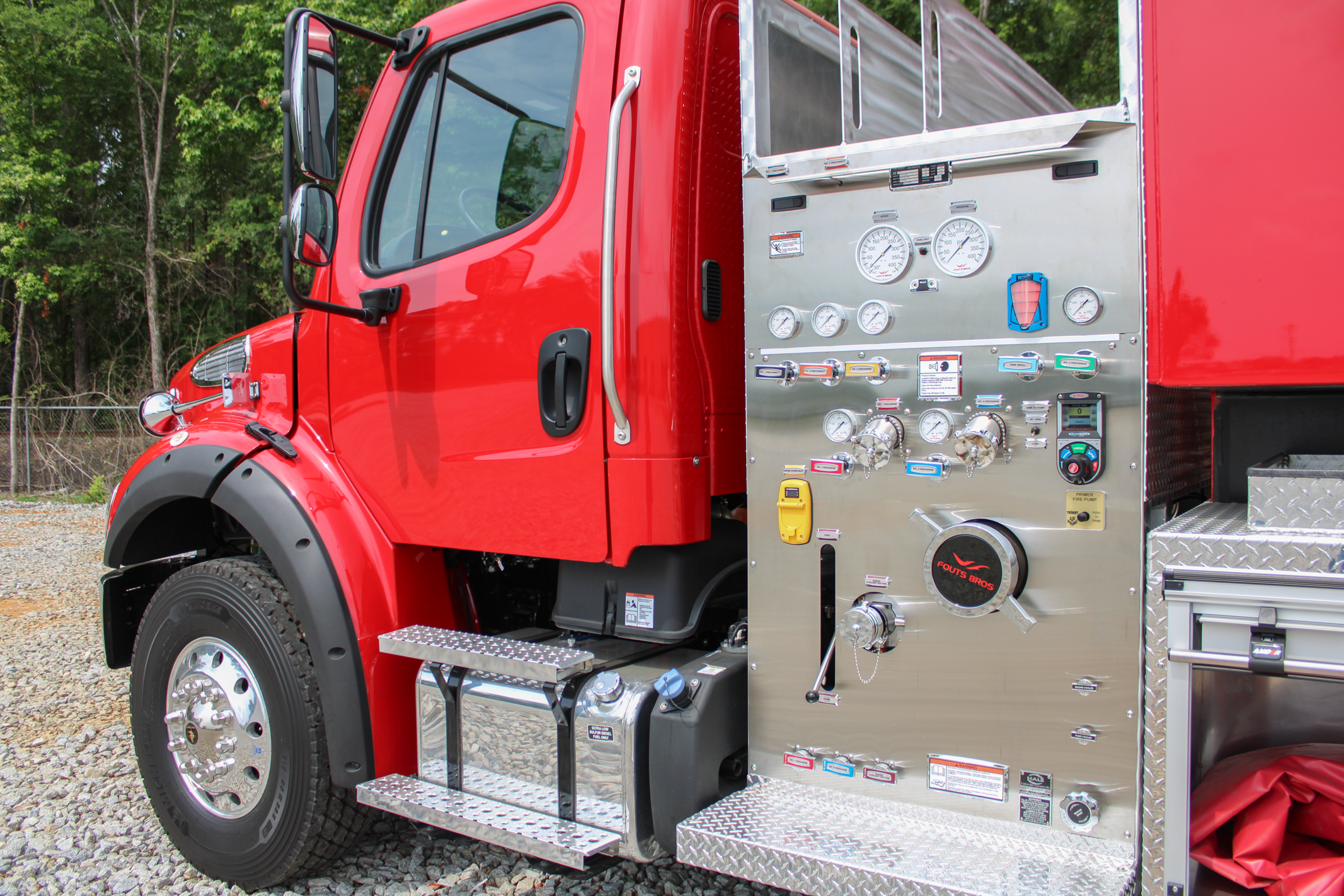

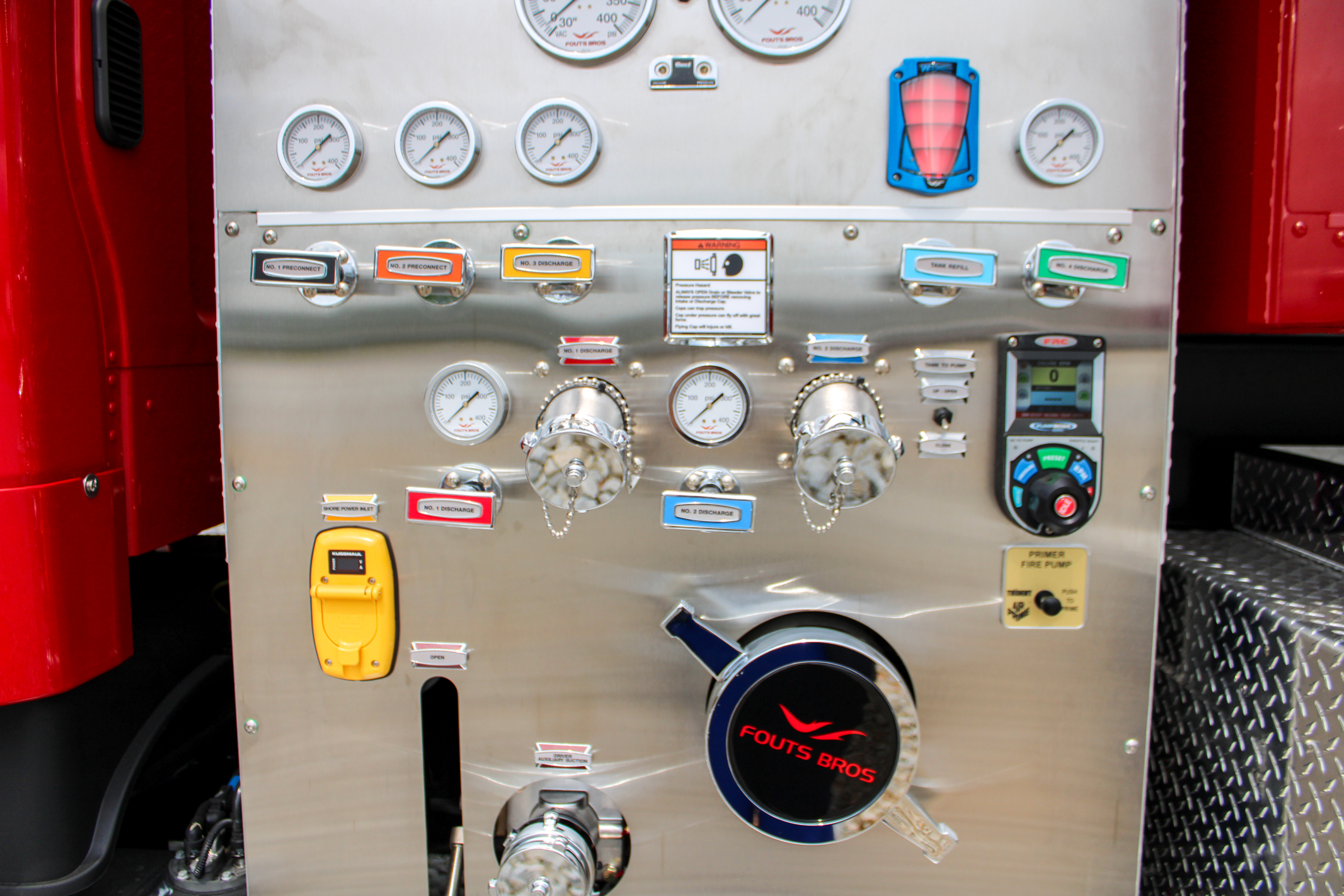

PUMP MISC

• PUMP SHIFT SPECS: STATIONARY PUMPING
• PRESSURE GOVERNOR : FRC PUMPBOSS PBA501
• PRIMING SYSTEM : TRIDENT #31.003.7 AIRPRIME SYSTEM
• TANK TO PUMP: ONE (1) 3.00”
• TANK FILL: ONE (1) 2.00”
• WATER LEVEL GAUGE: ONE (1) IC SOFT-GLO #3050869-03-W-37 (PUMP): ONE (1) IC SOFT-GLO #3050853-W-37 (CAB)

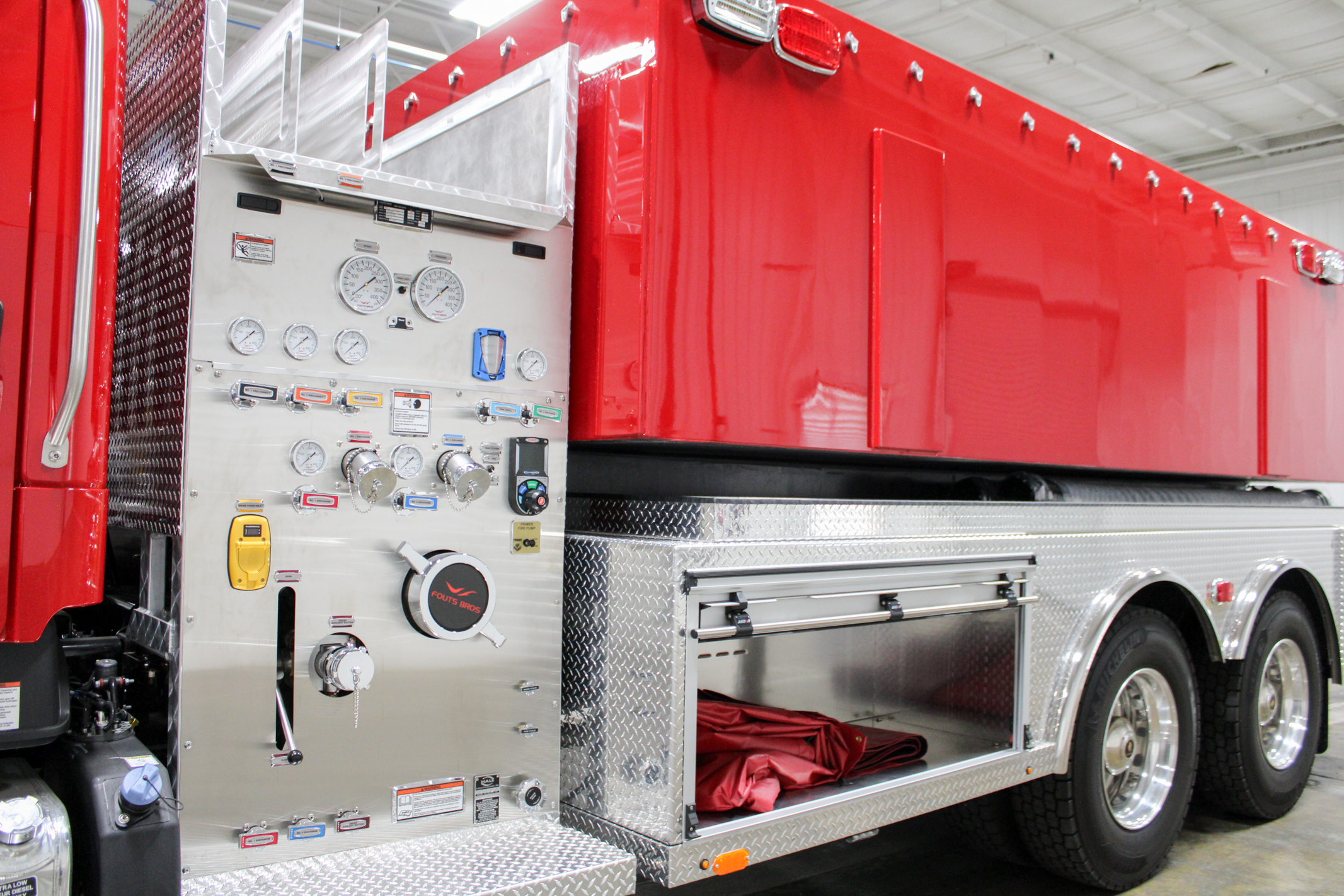

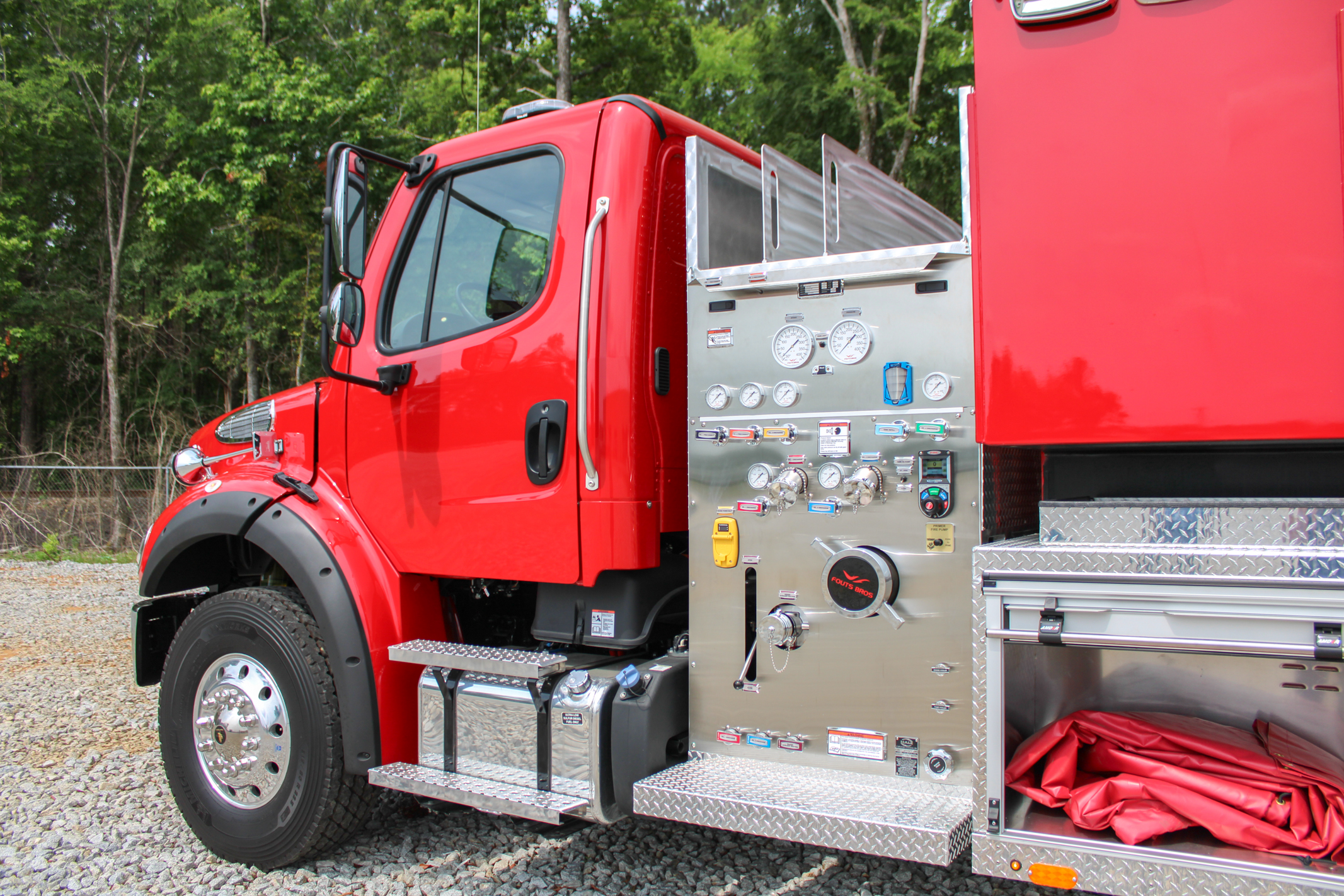

• PUMP PANEL MATERIAL: 14 GAUGE 304L SS, BRUSHED FINISH
• CROSSLAY COVER : VINYL, RED

TANK INFO

• CAPACITY: 3000 US GALLONS

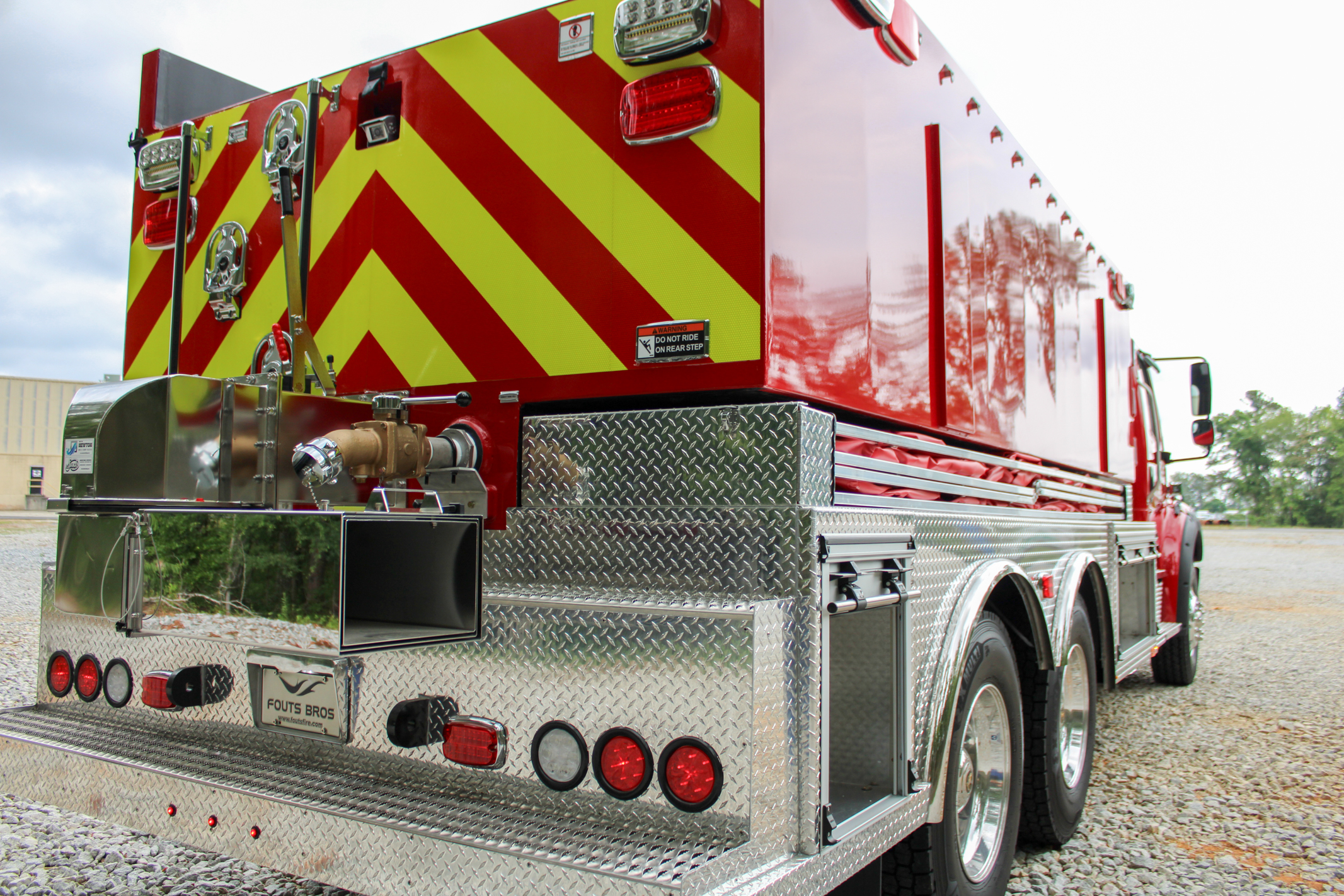

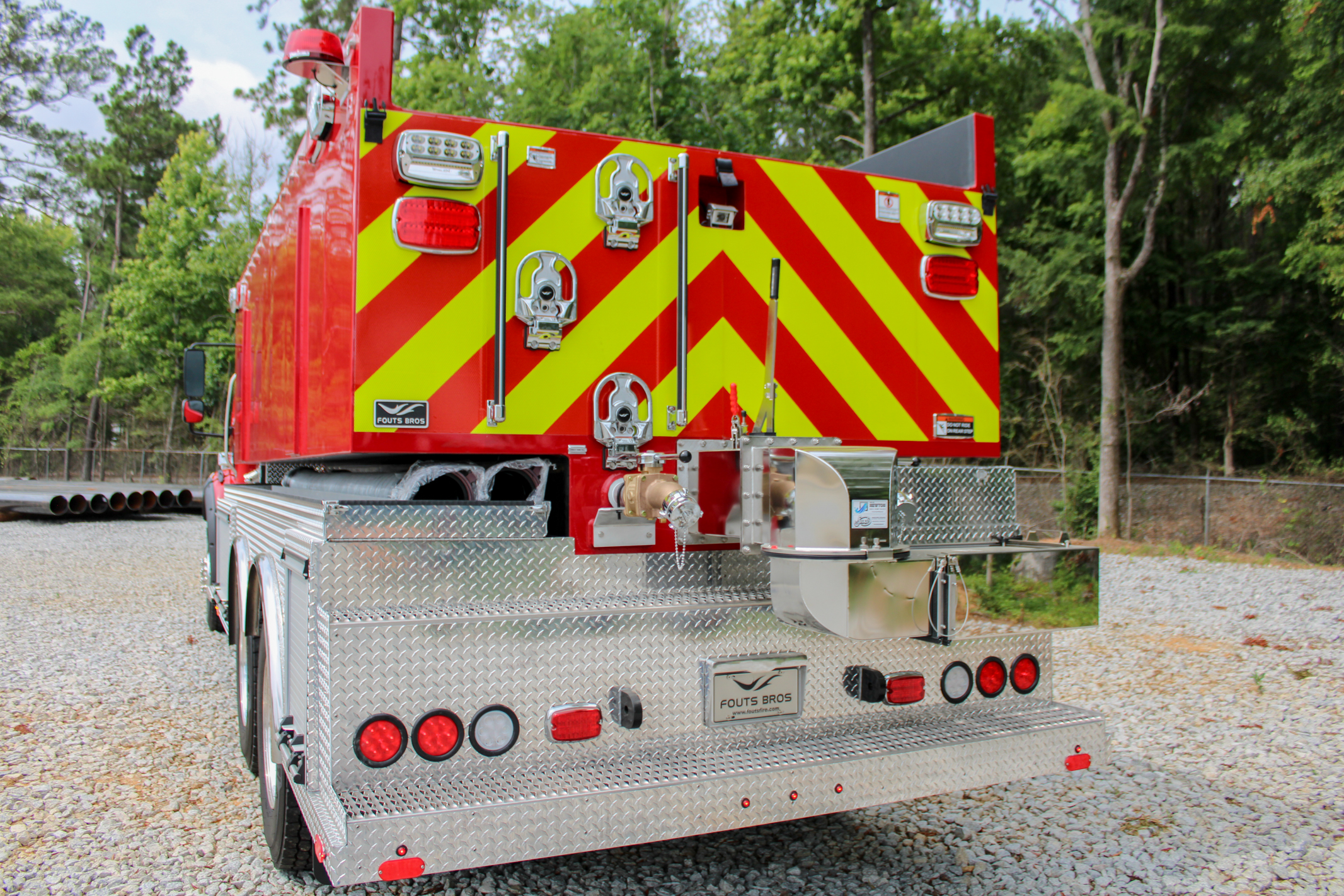

• DIRECT TANK FILLS: ONE (2) 2.50″, AKRON: ONE (1) 4.00″FNPT INLET REDUCED TO 2.50″ FNPT

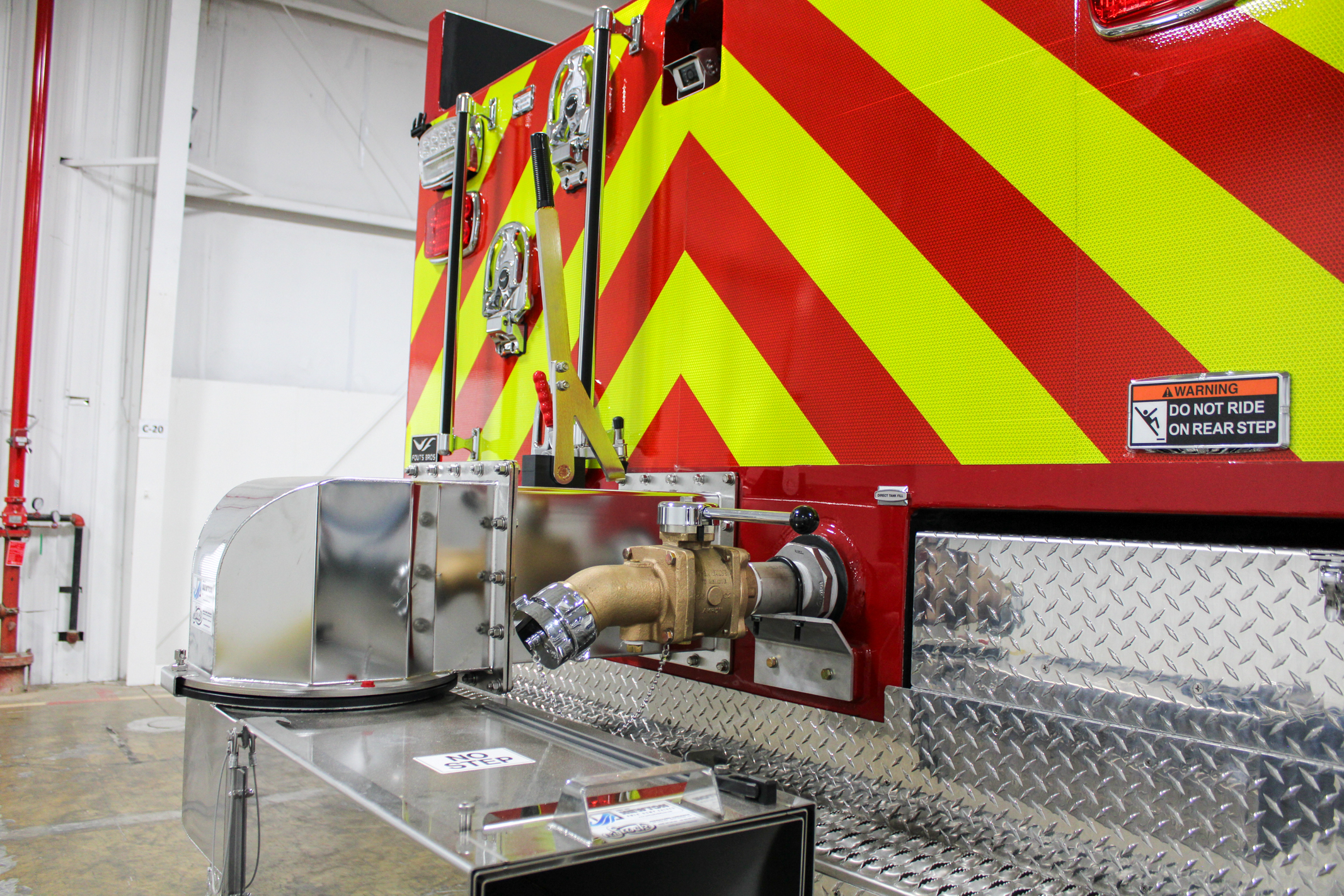

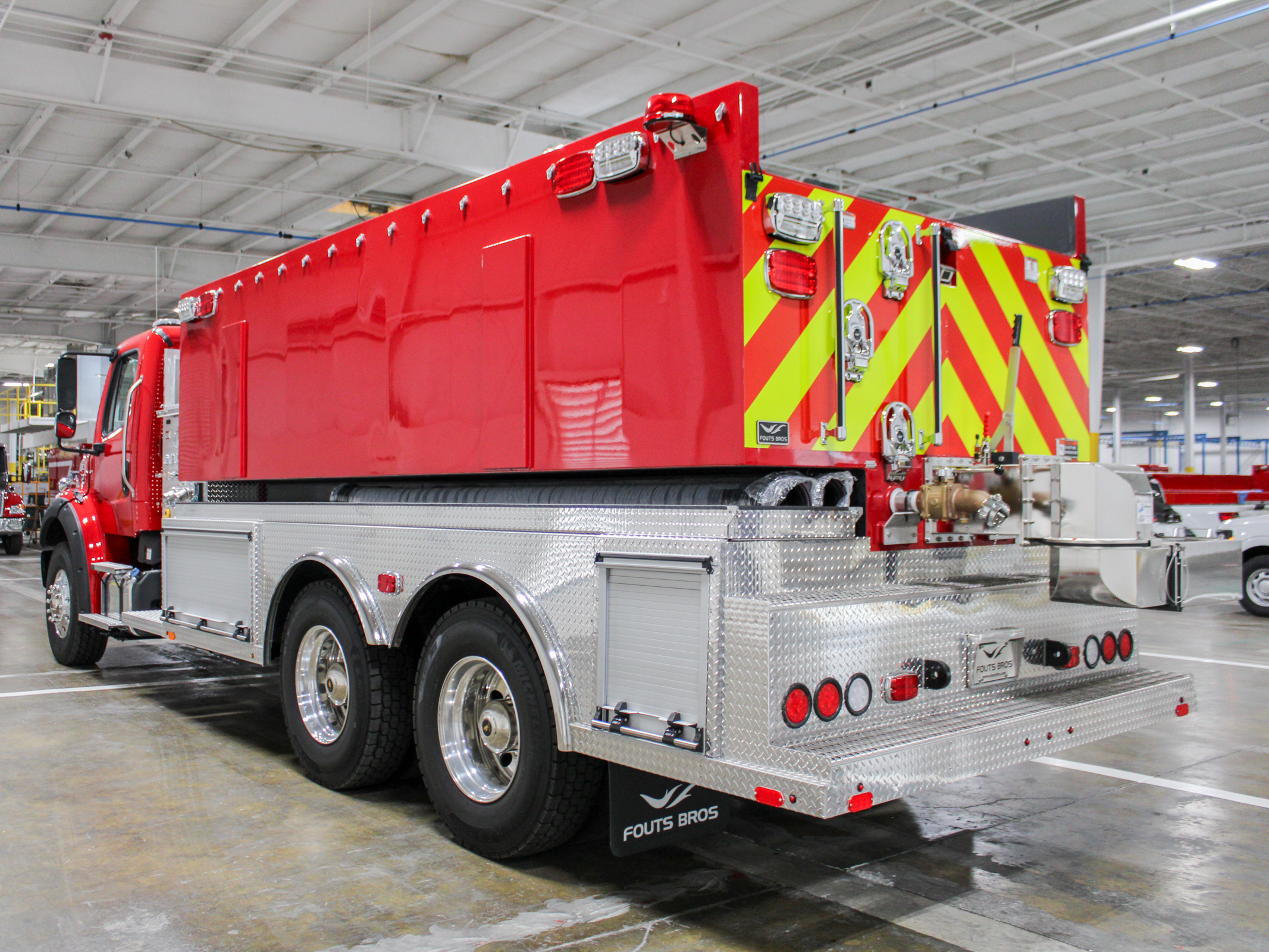

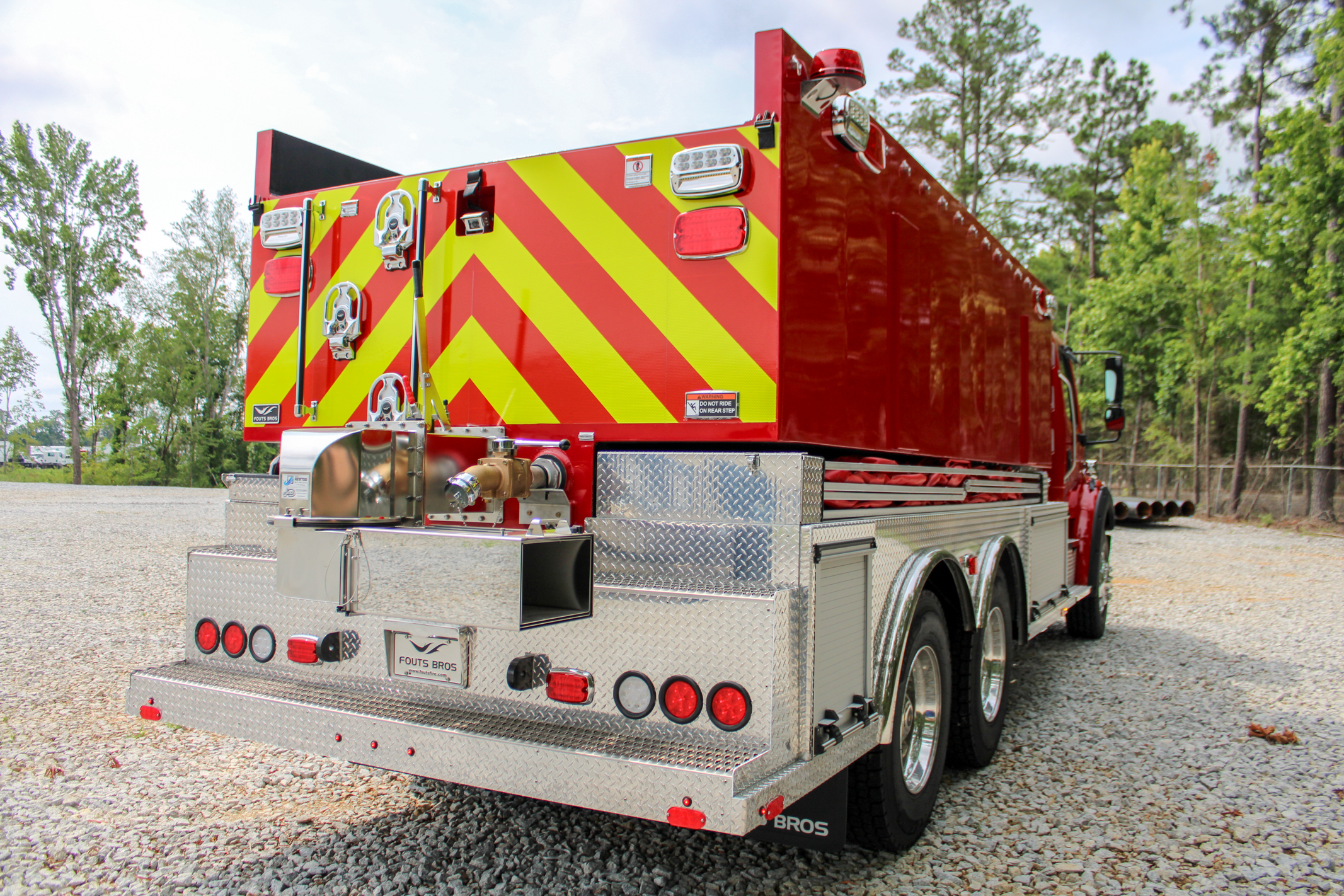

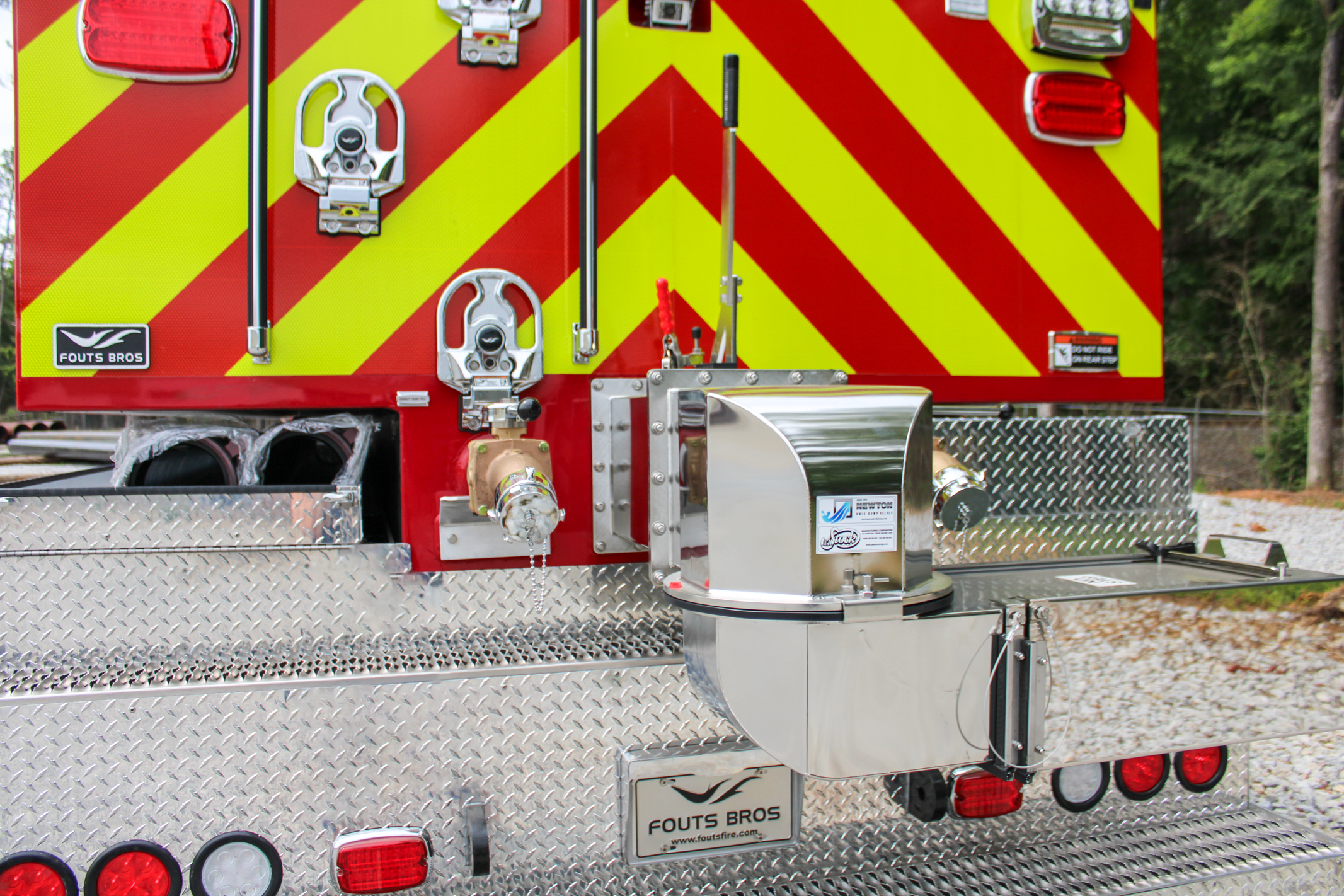

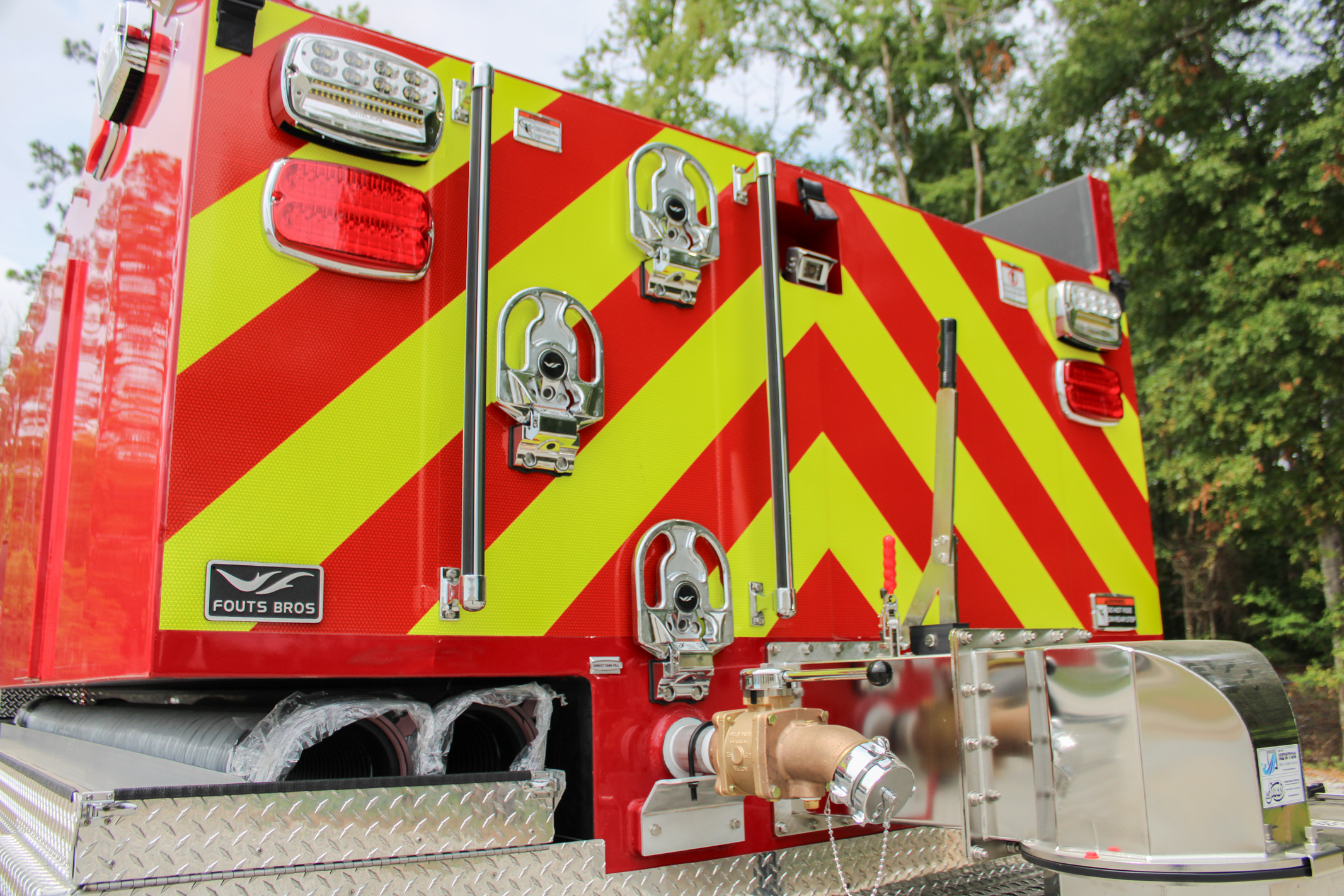

• DUMP SYSTEM: MANUAL WITH SWIVEL & EXTENSION C
• HOSEBED COVER: : VINYL, RED IN COLOR

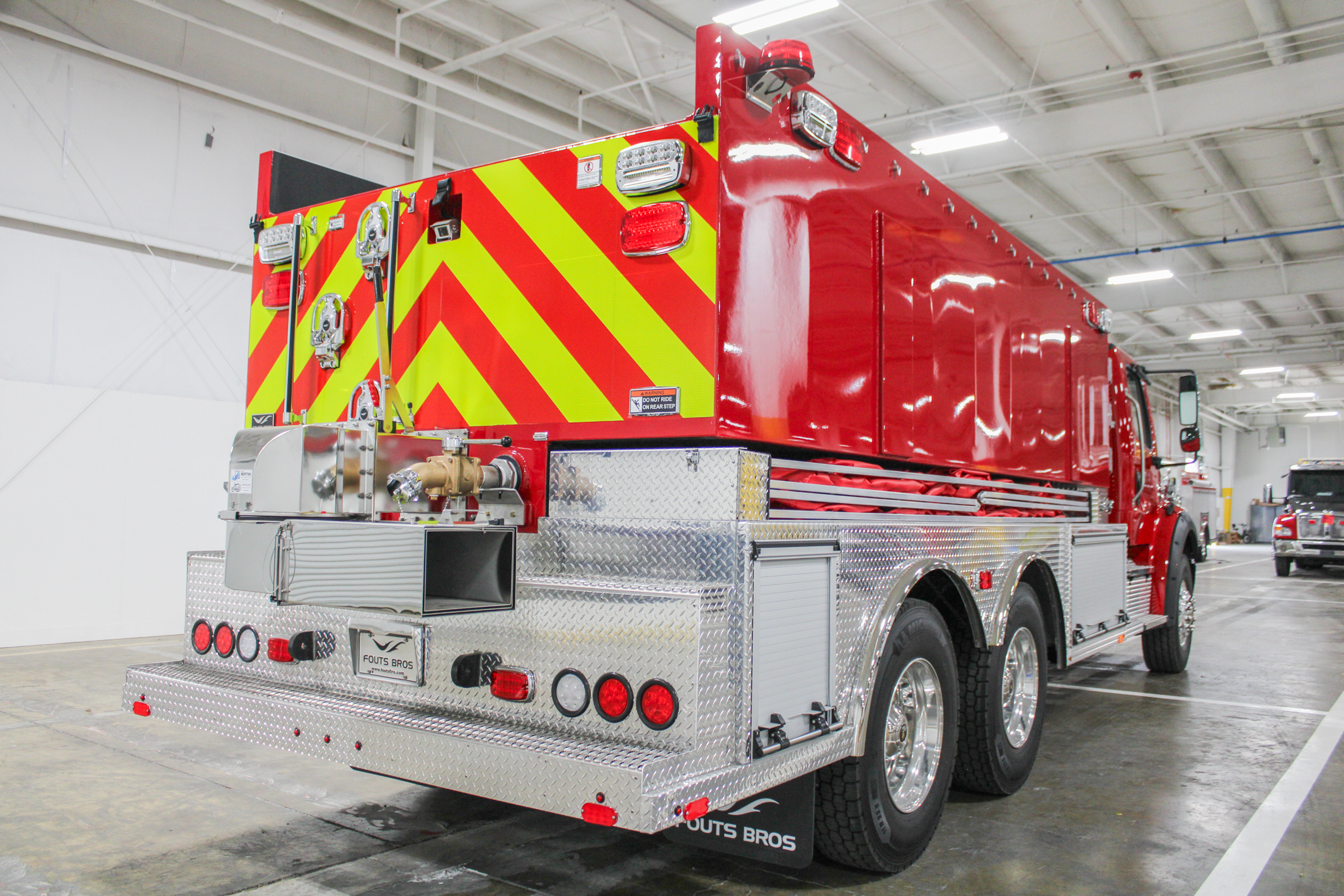

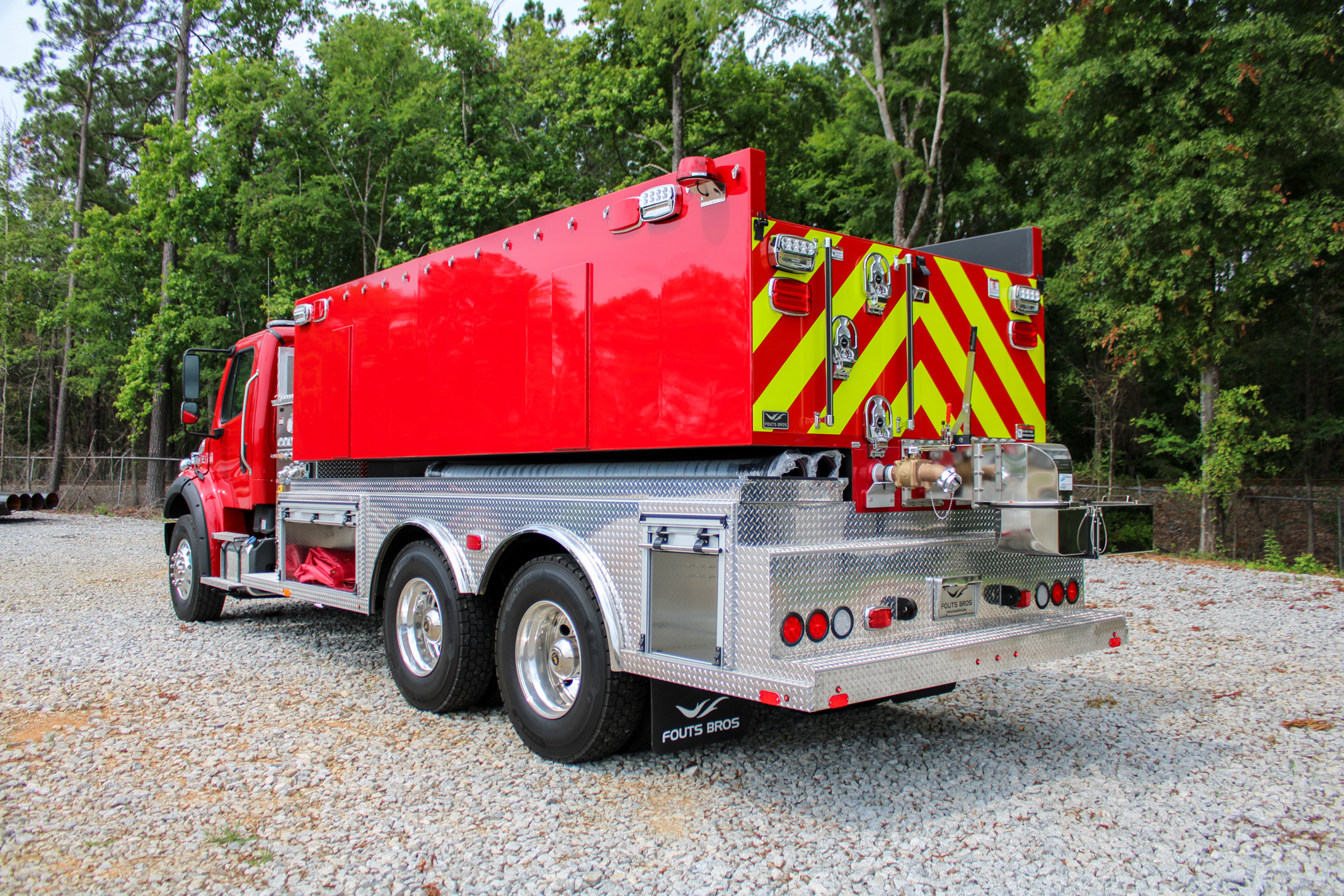

BODY INFO

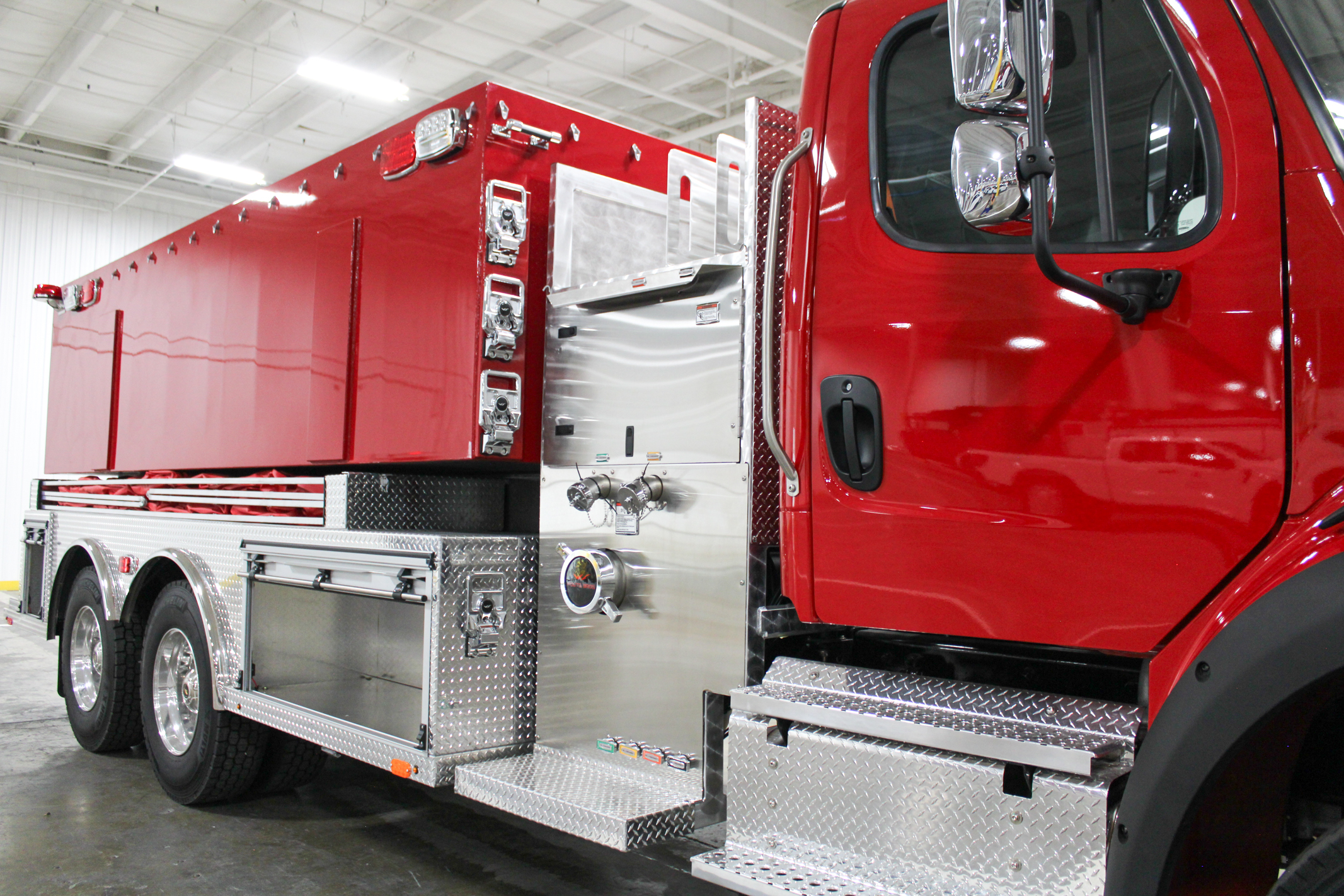

• BODY TYPE: ATP-4-COMPARTMENTS

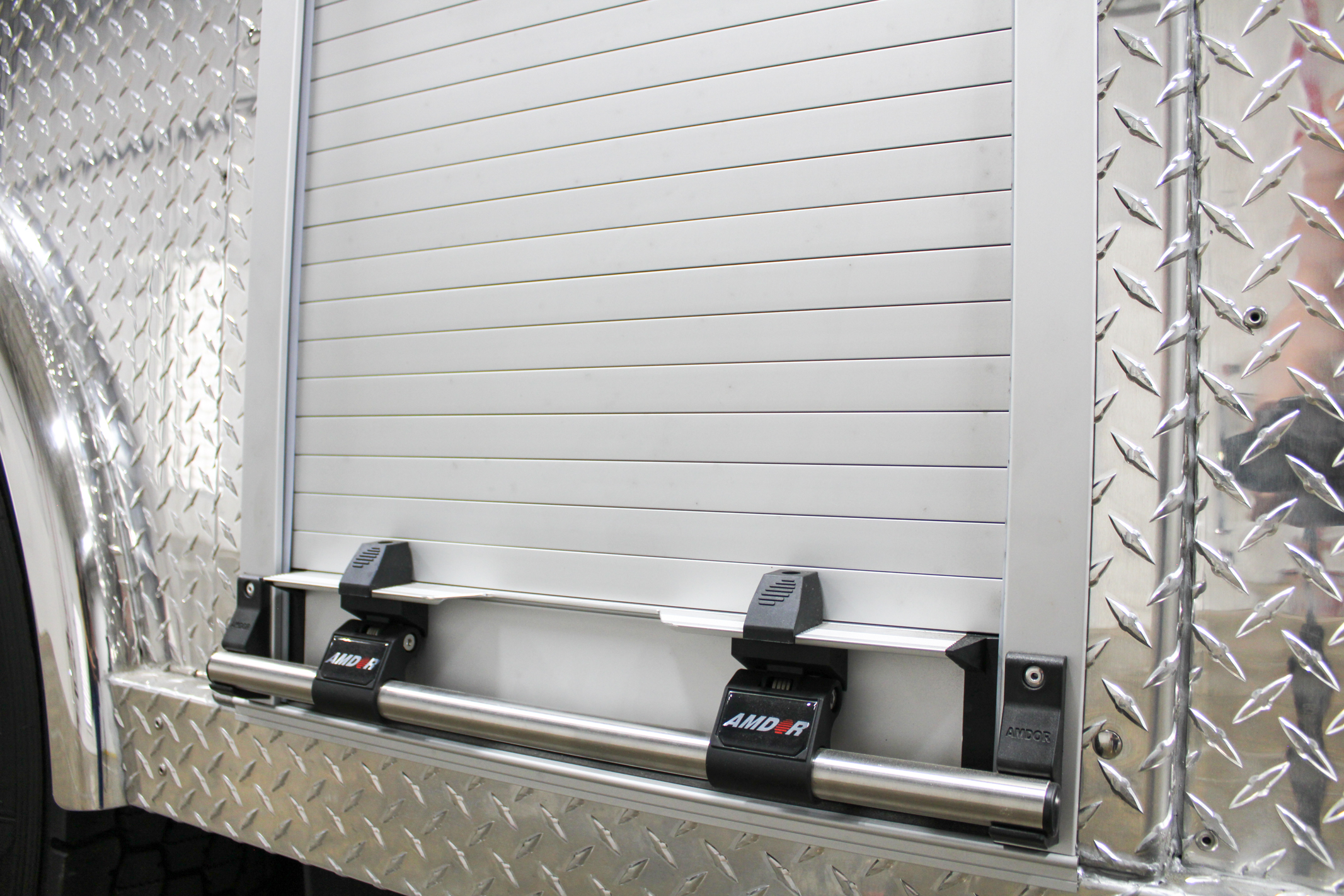

• DOOR TYPE: AMDOR ROLL – UP DOOR(SATIN FINISH)

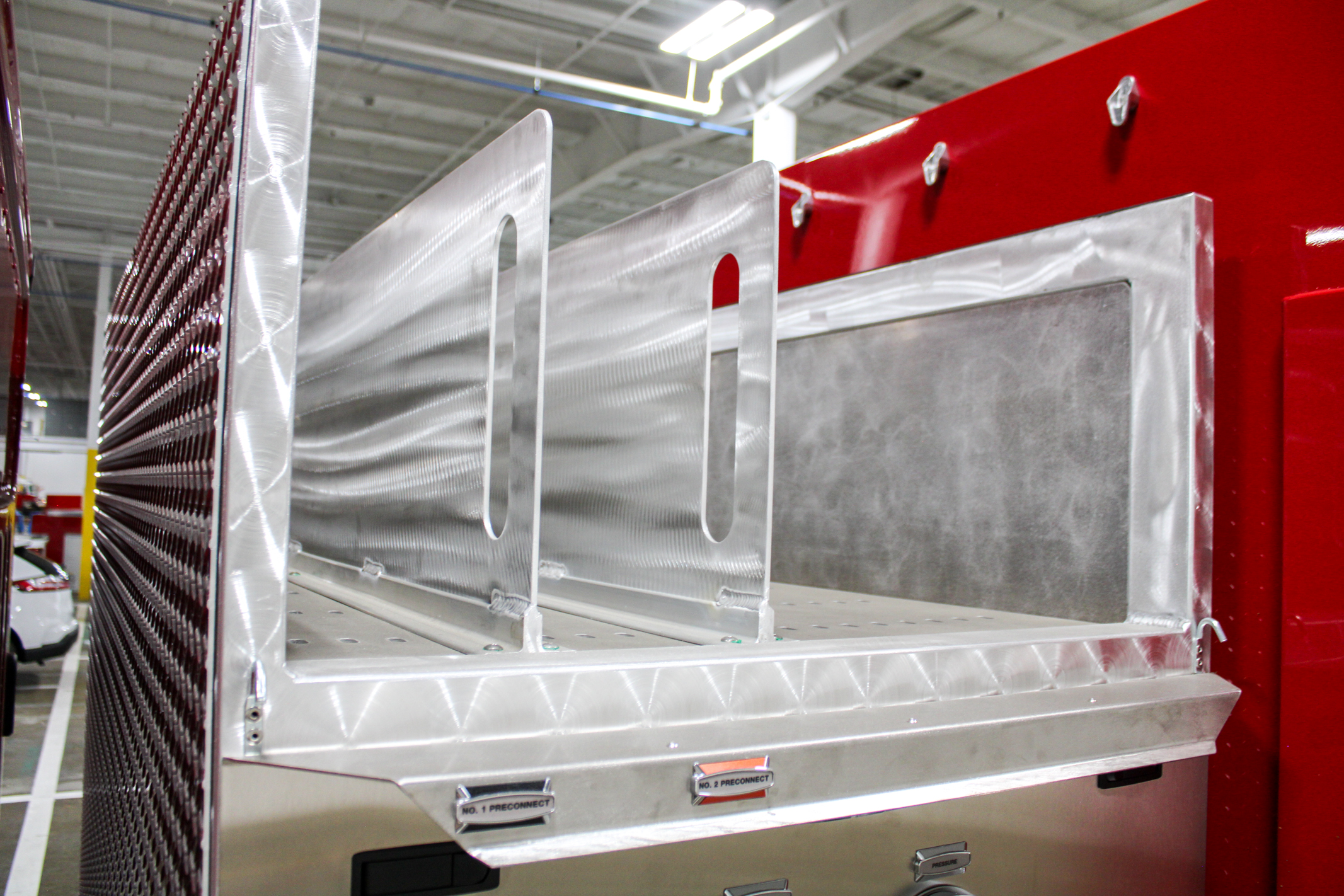

• DROP TANK STORAGE: RH

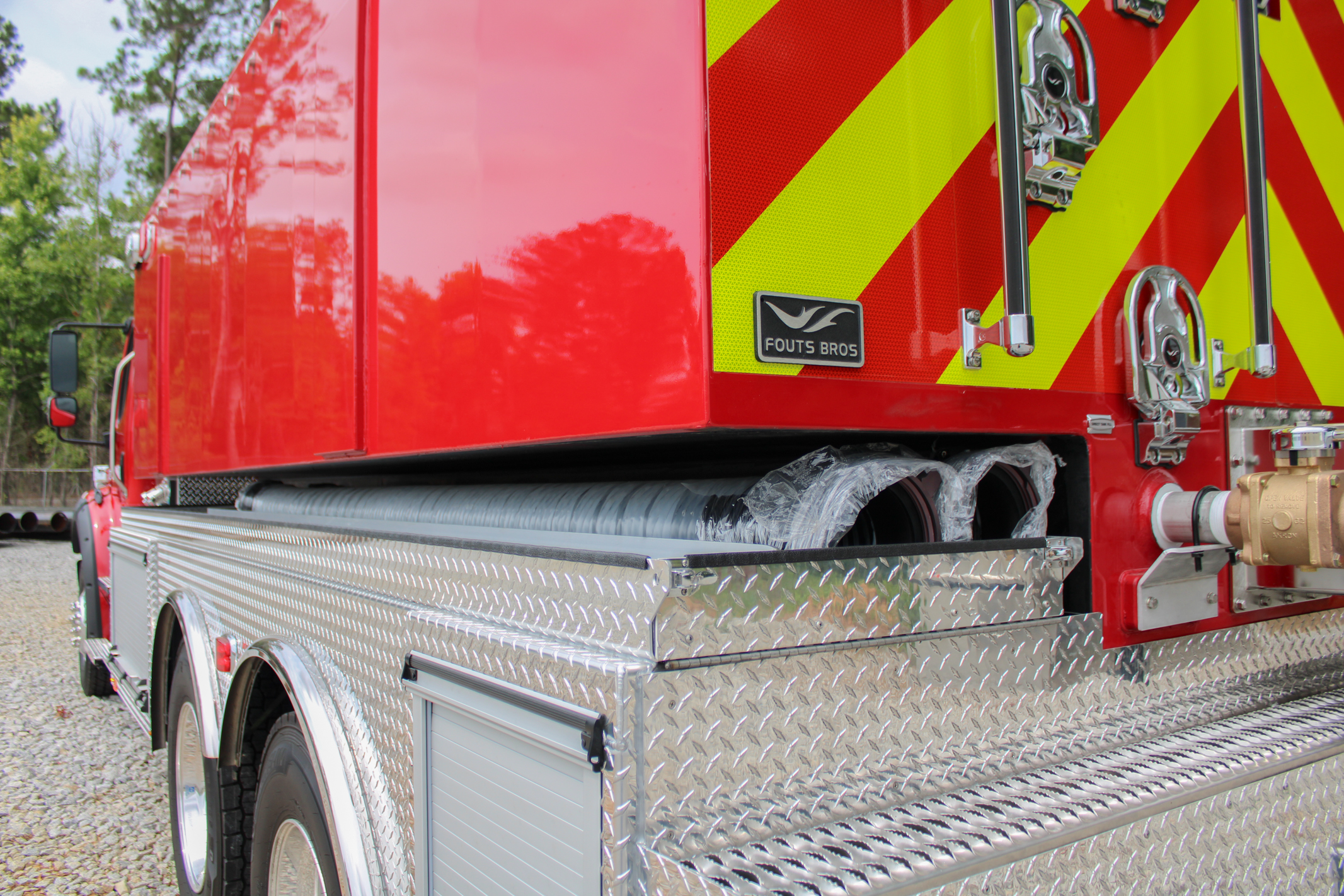

• HARD SUCTION STORAGE : LH

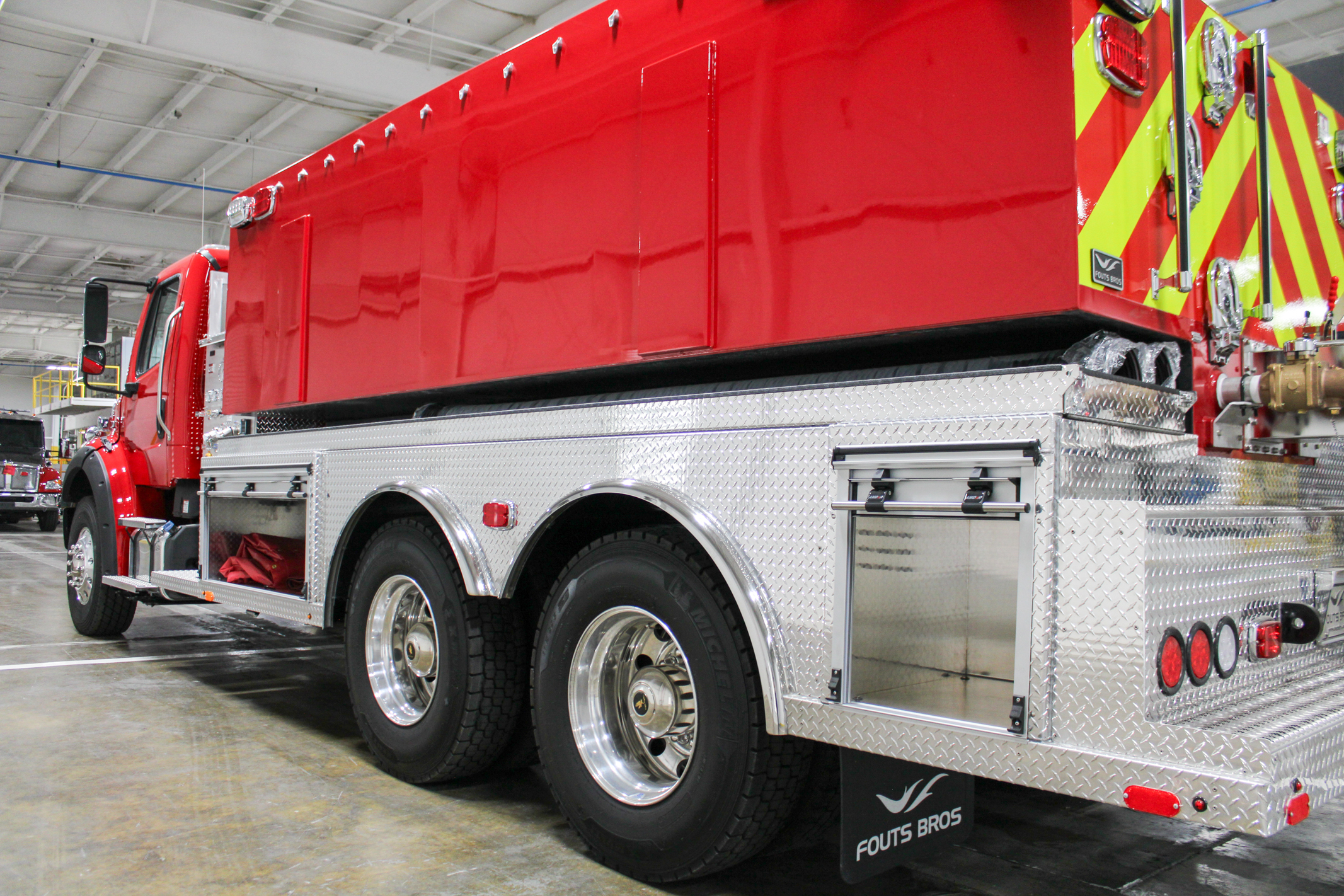

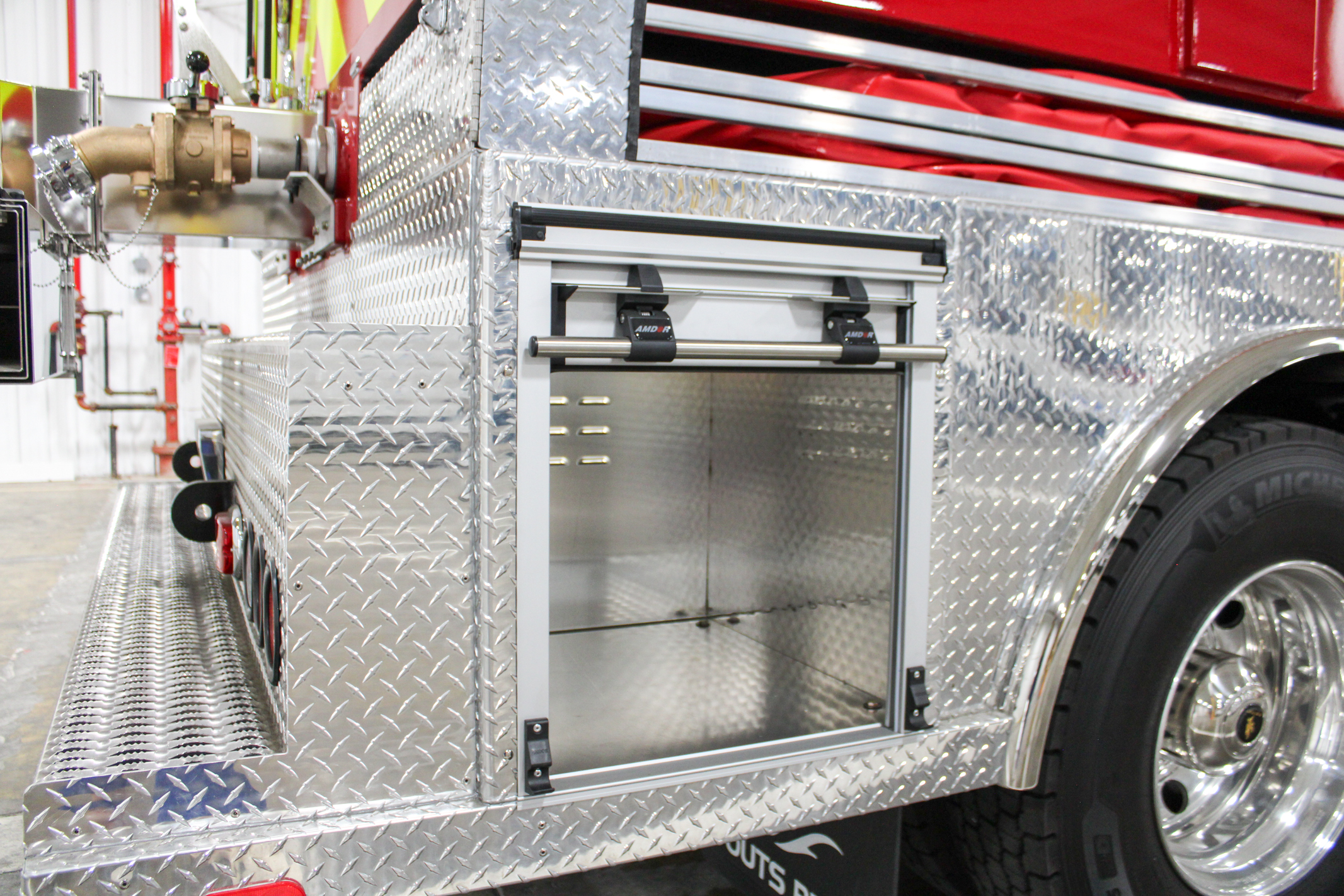

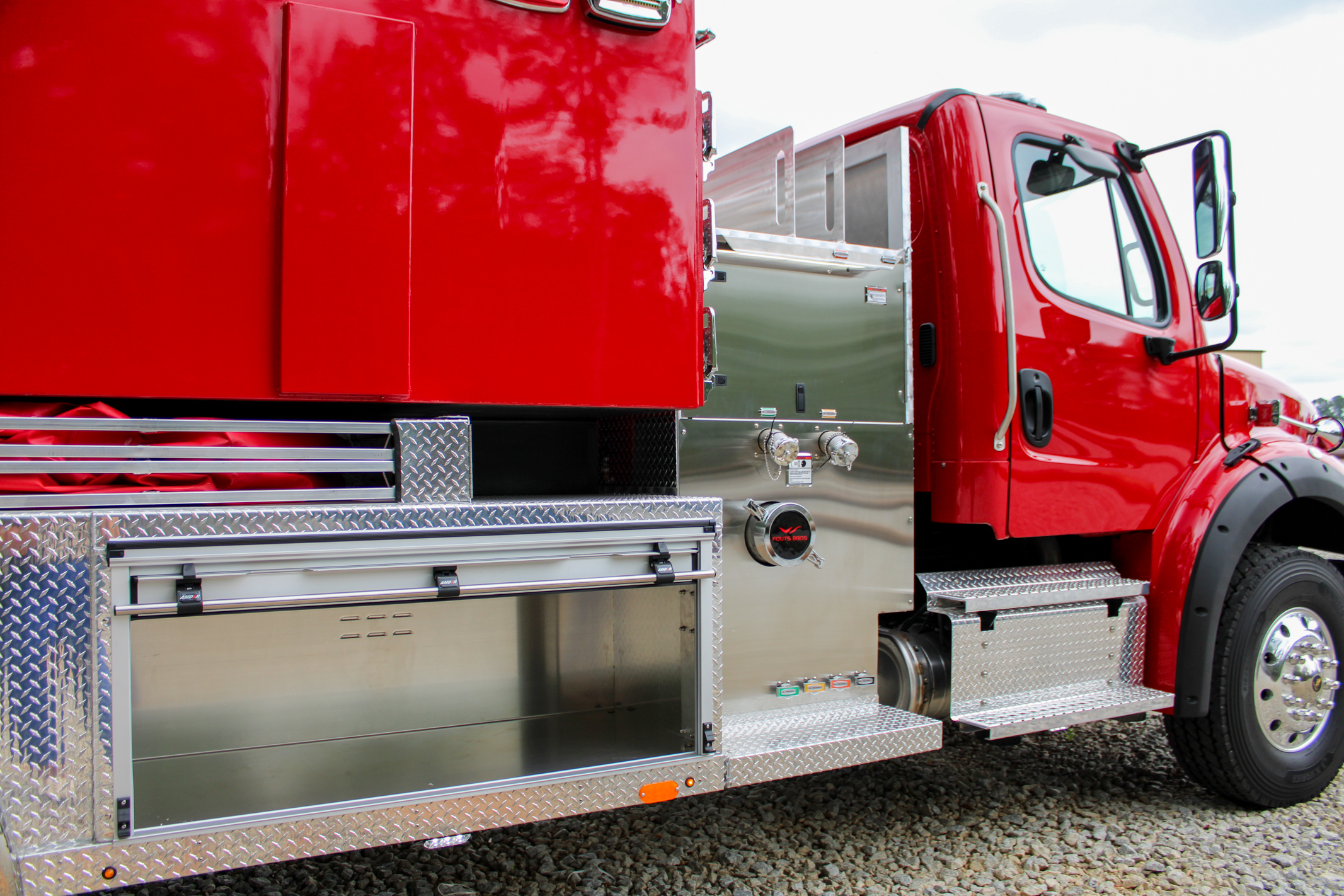

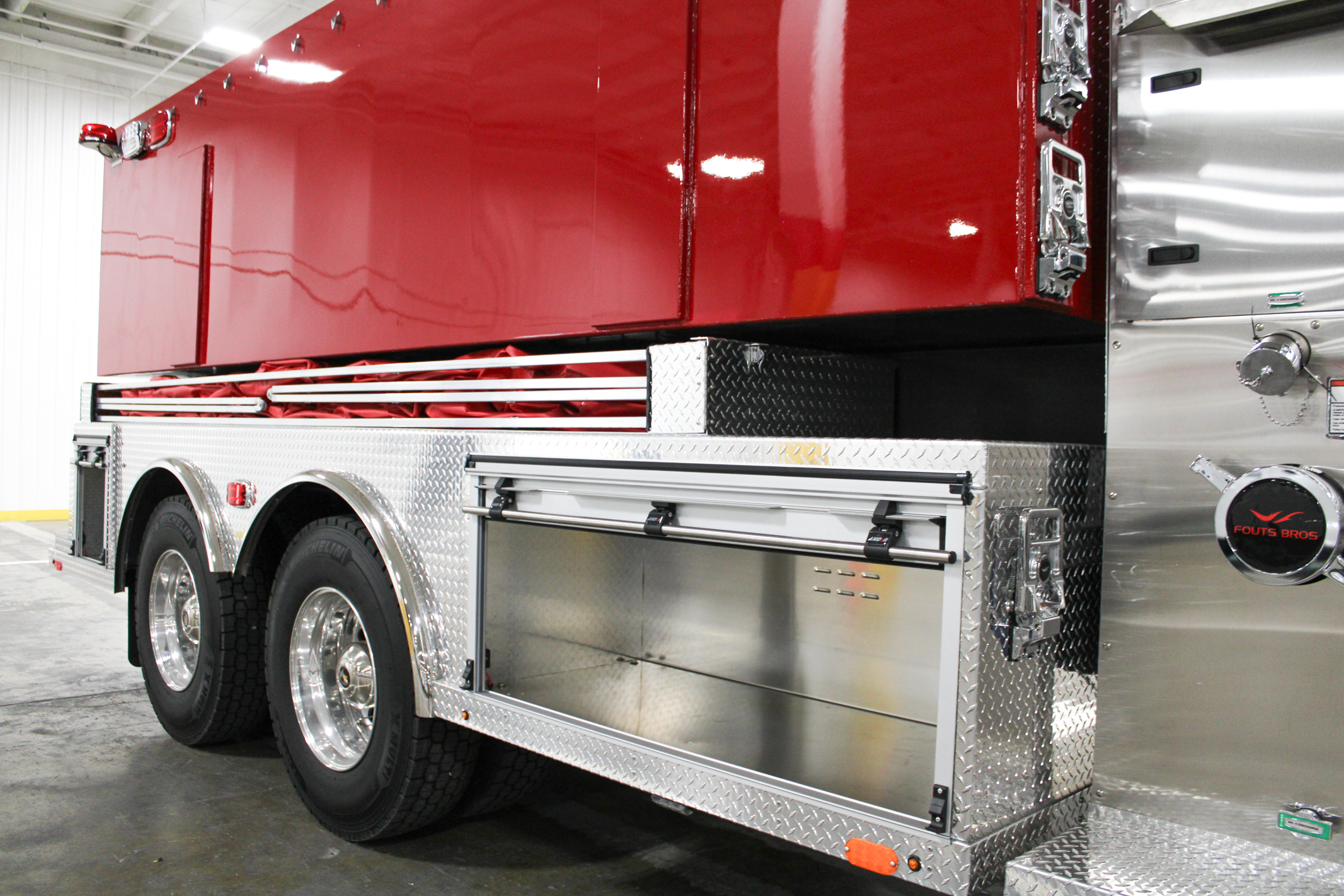

LH SIDE COMPARTMENTS

• L1: 60.00” W X 26.00” D X 27.00” H = 24.375 CU.FT.
• L2  : 24.00” W X 26.00” D X 27.00” H = 9.75 CU.FT

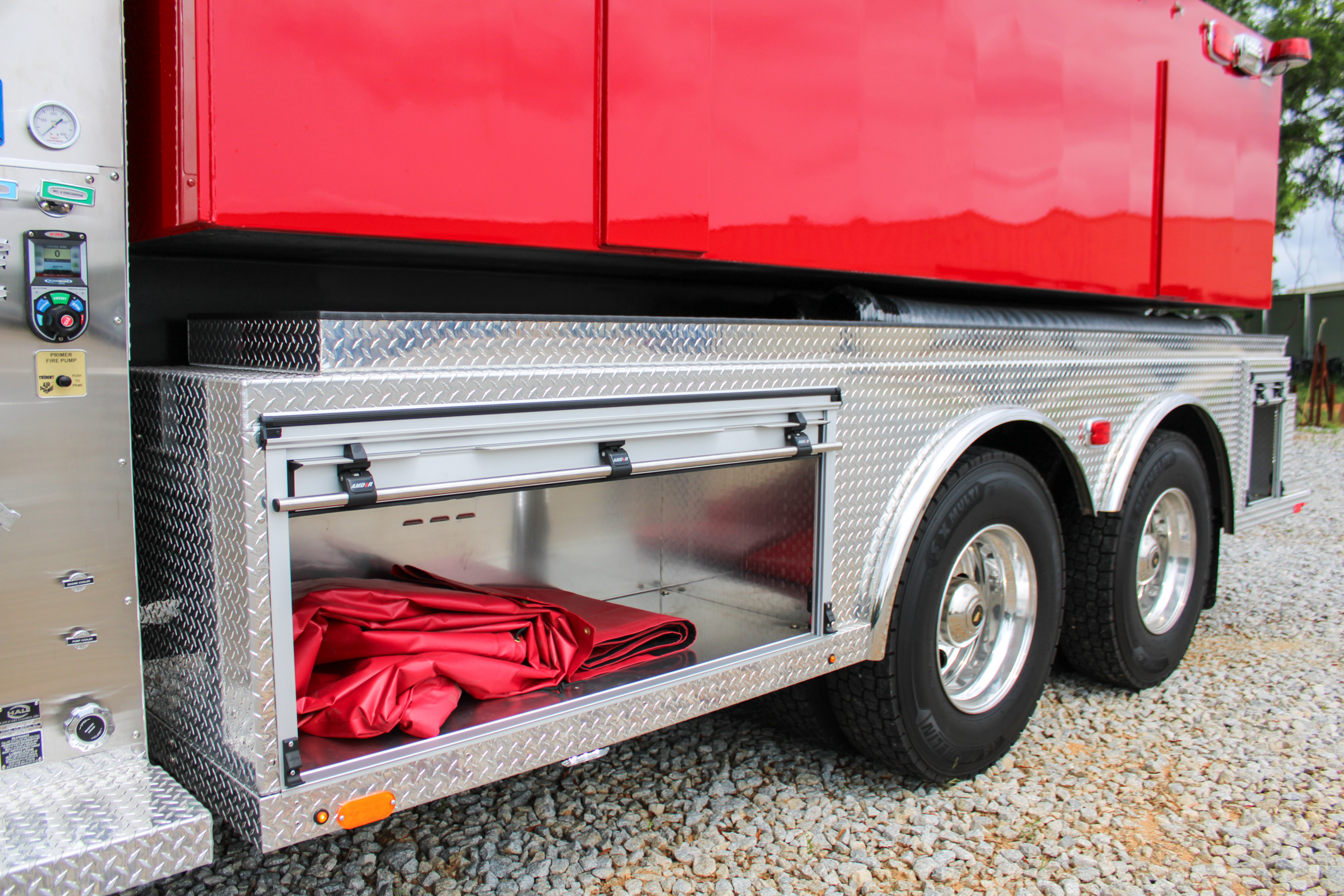

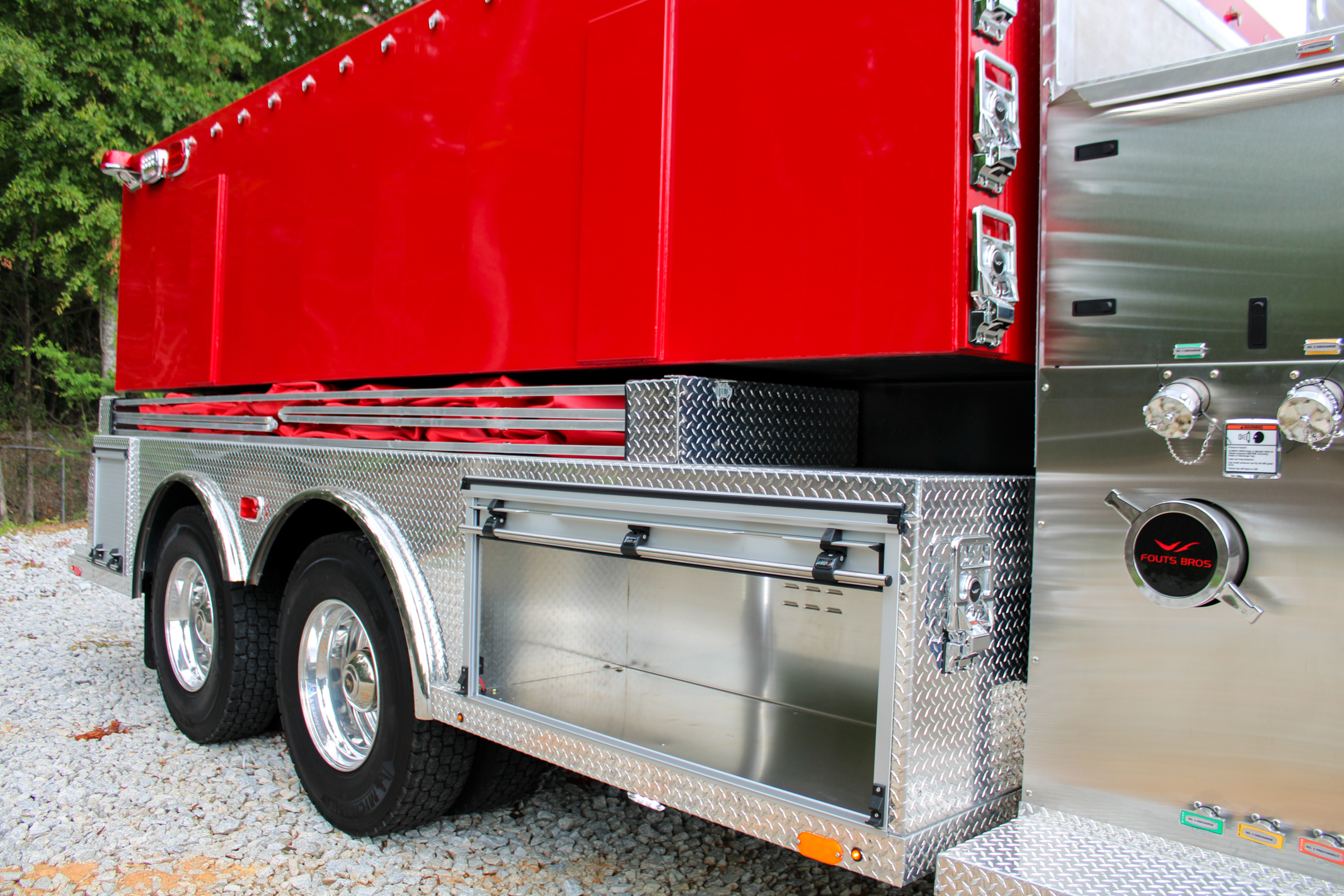

RH SIDE COMPARTMENTS

• R1: 60.00” W X 26.00” D X 27.00” H = 24.375 CU.FT.
• R2: 24.00” W X 26.00” D X 27.00” H = 9.75 CU.FT.

TOTAL VOLUME : 68.26 CU.FT.

LOOSE EQUIPMENT

• FOLDING TANK: ONE (1) 3000 US GALLONS

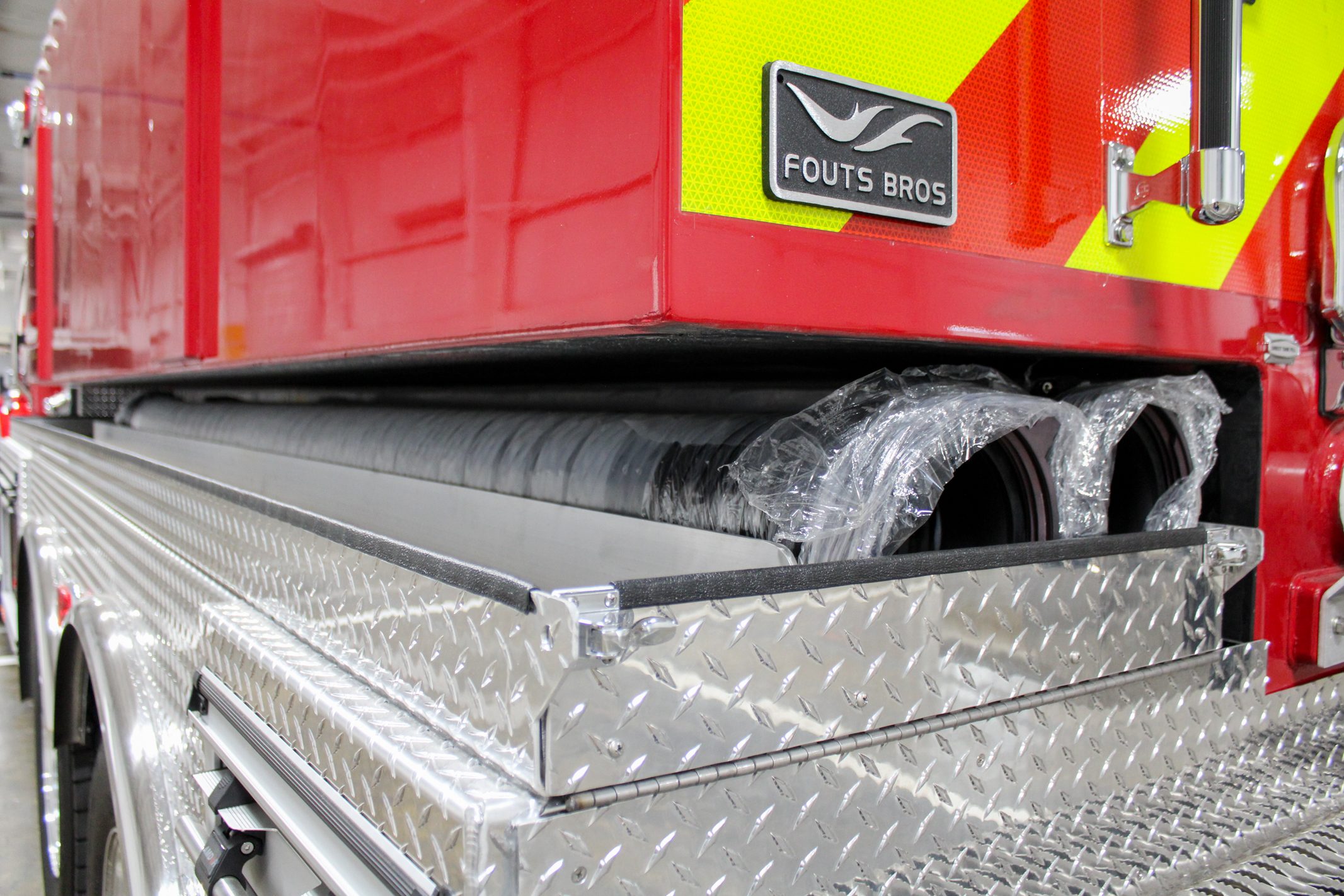

• HARD SUCTION HOSE(S): TWO (2) 6″ X 10′ KOCHEK
