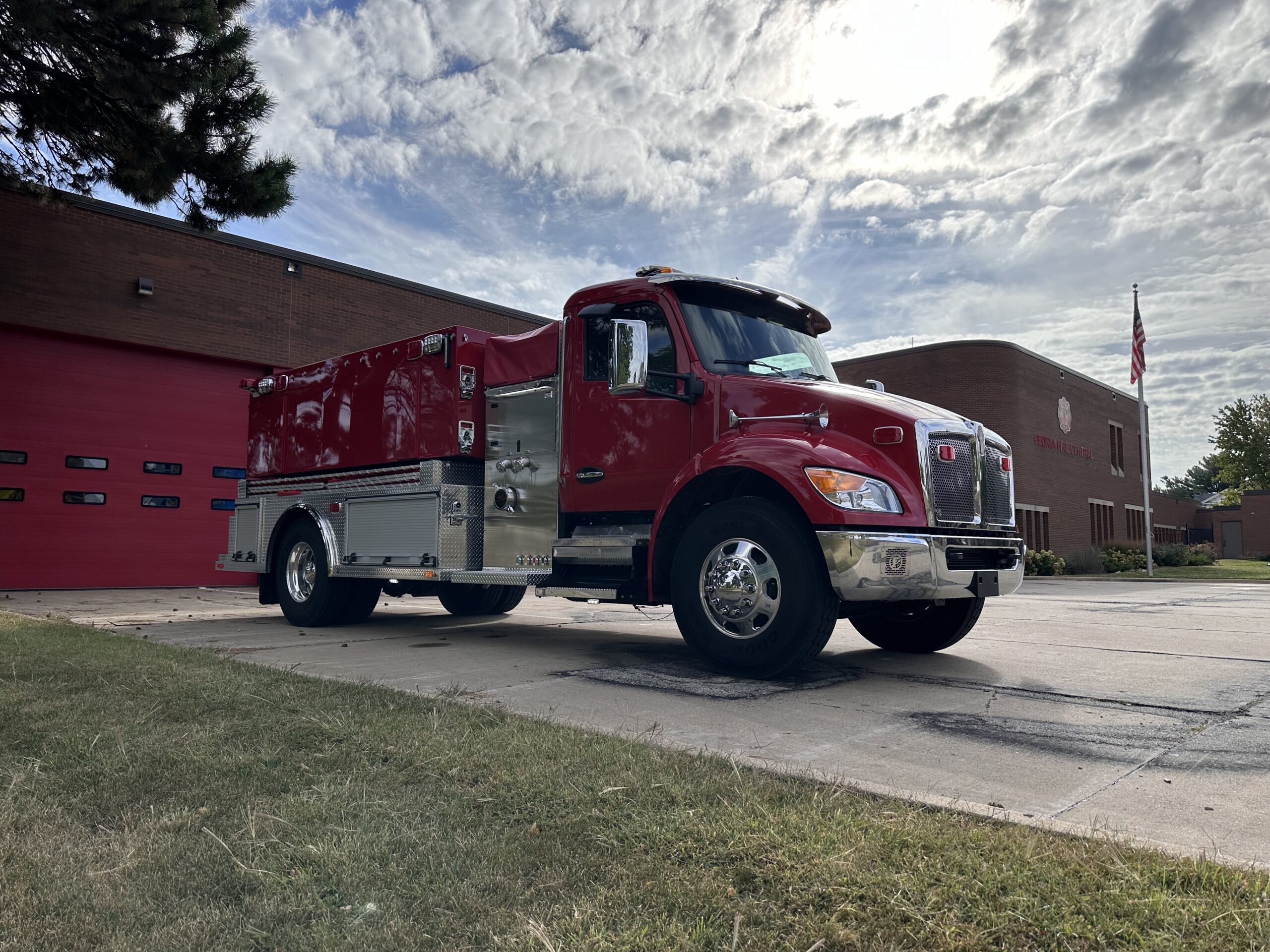

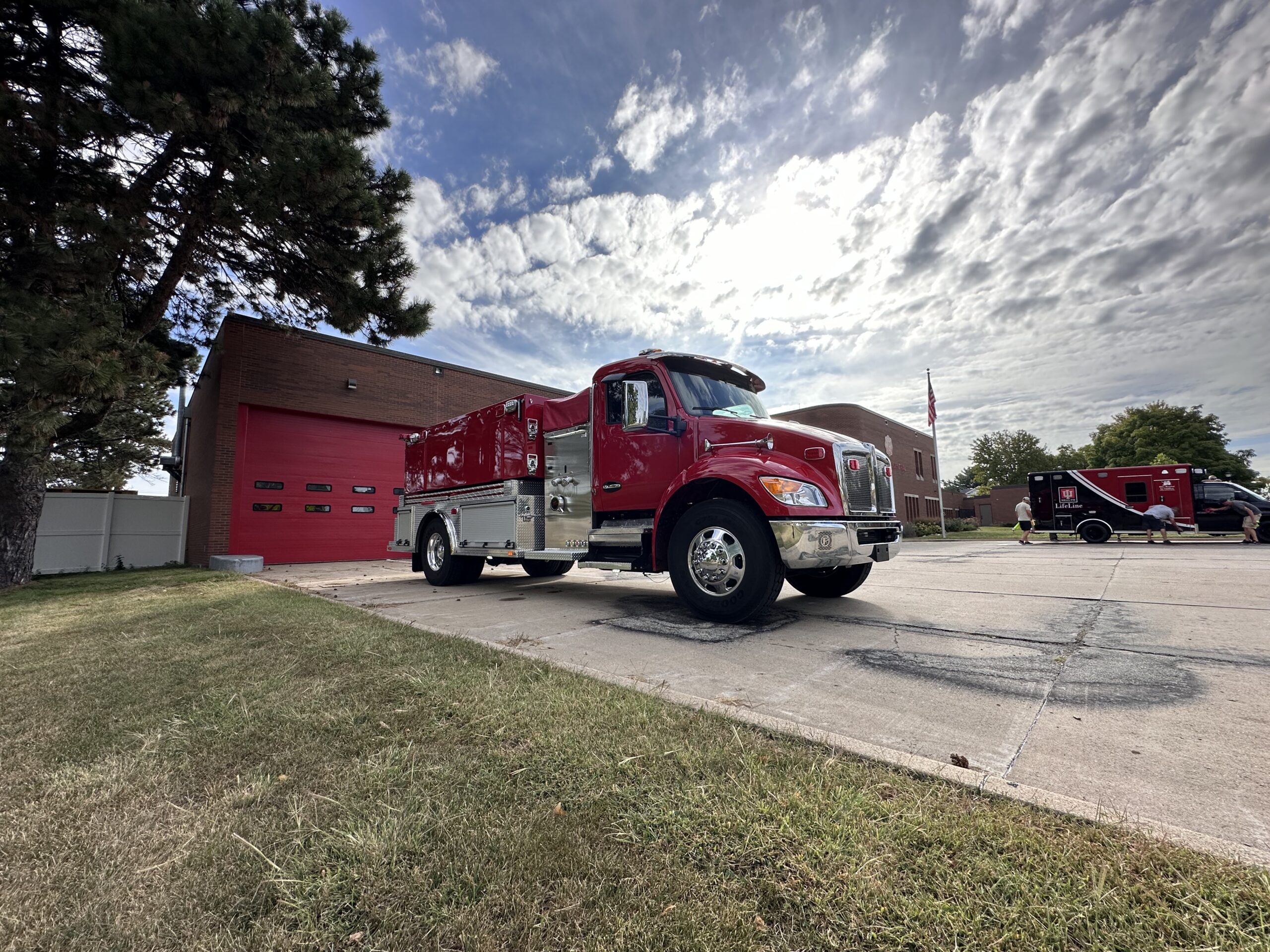

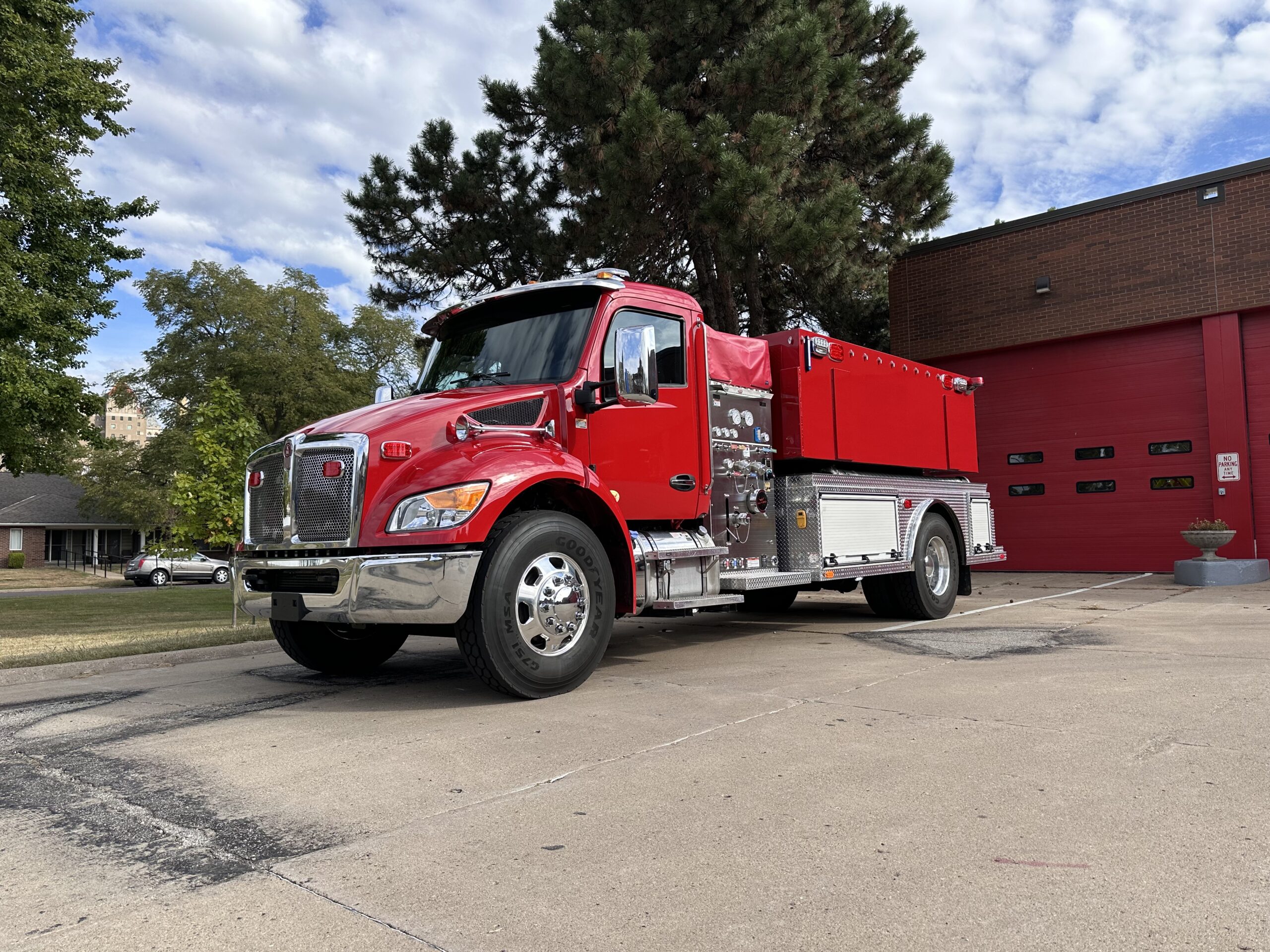

CHASSIS INFO:

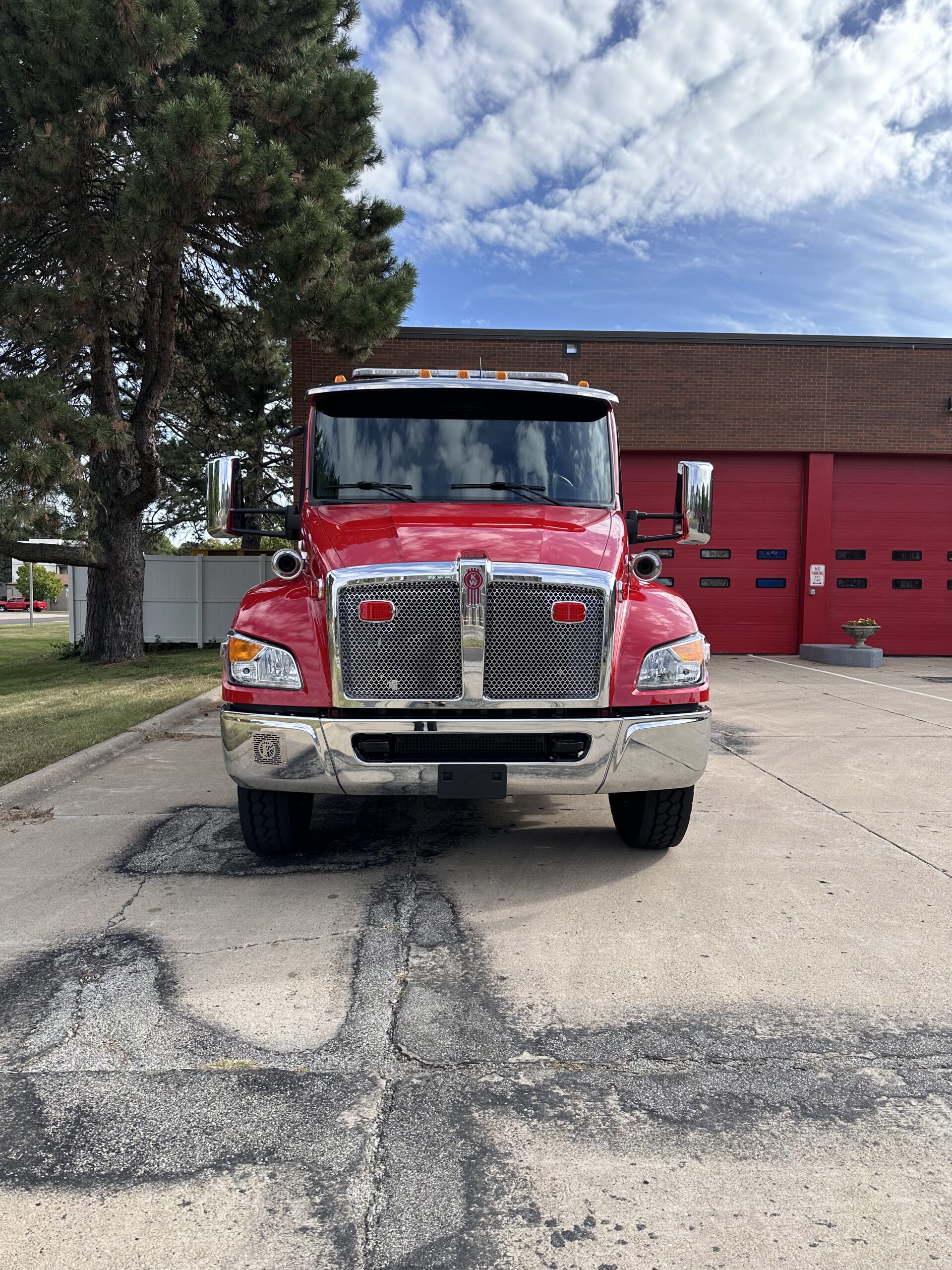

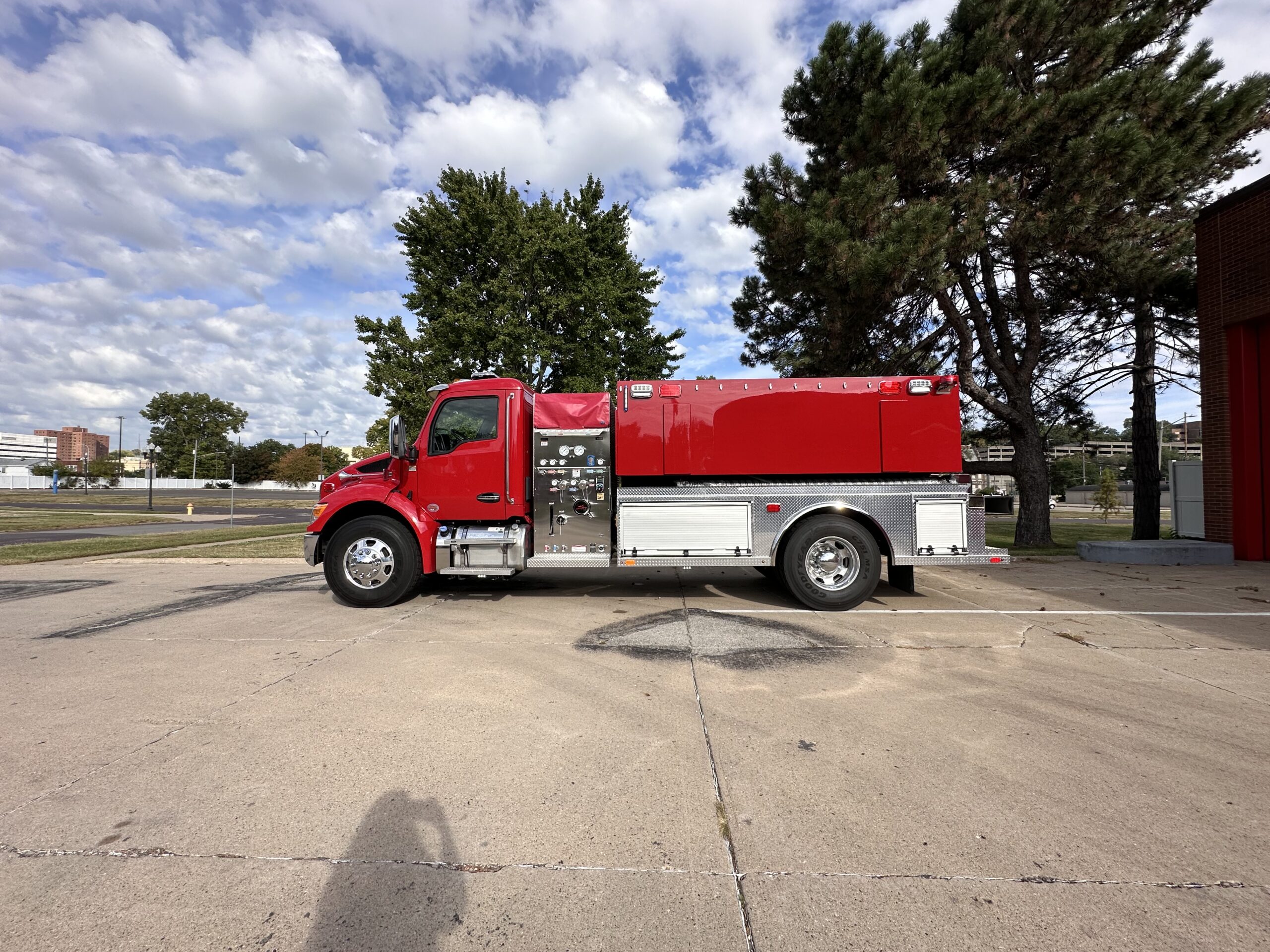

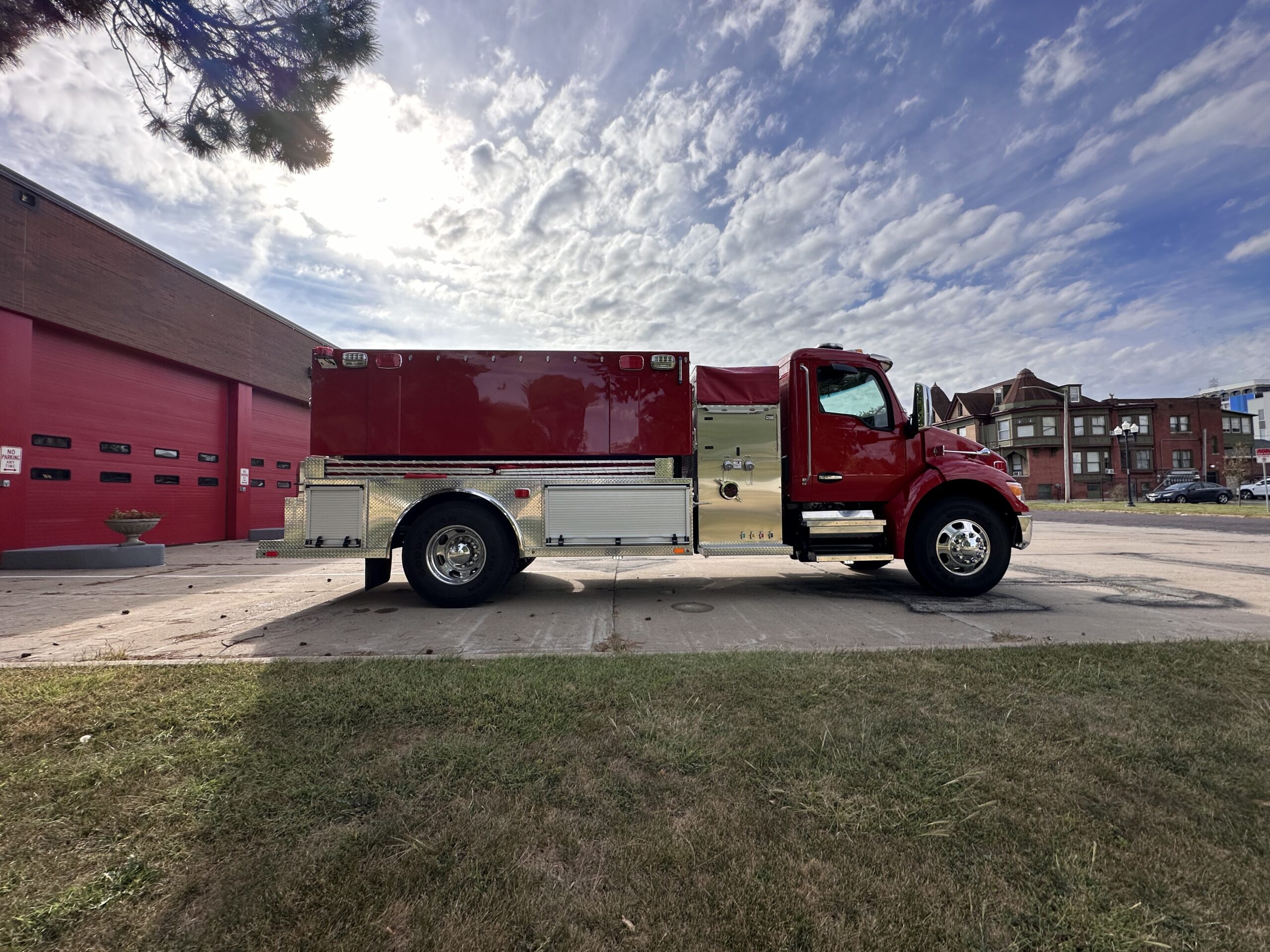

• CHASSIS: KENWORTH T480, 2 DOOR, TANDEM AXLE
• ENGINE: PACCAR CUMMINS PX-9 380HP
• TRANSMISSION: ALLISON 3000EVS 5-SPEED
• FRONT AXLE: 14,600 LBS.
• REAR AXLE: 26,000 LBS.
• PAINT COLOR: FOUTS BROS, RED

PUMP INFO

• PUMP: HALE MBP, 1000GPM, SIDE MOUNT

INTAKES

• DRIVER SIDE: ONE (1) 6.00″ & ONE (1) 2.50″ AUX
• OFFICER SIDE: (1) 6.00”

DISCHARGES

• DRIVER SIDE: TWO (2) 2.50″
• OFFICER SIDE: TWO (2) 2.50″
• PRECONNECTS: TWO (2) 1.75″

PUMP MISC

• PUMP SHIFT: PUMP AND ROLL
• PRESSURE GOVERNOR : FRC PUMPBOSS PBA501
• PRIMING SYSTEM : TRIDENT #31.003.7 AIR OPERATED
• TANK TO PUMP: ONE (1) 3.00”
• TANK FILL: ONE (1) 2.00”
• CROSSLAY COVER : 18 OZ. VINYL, RED

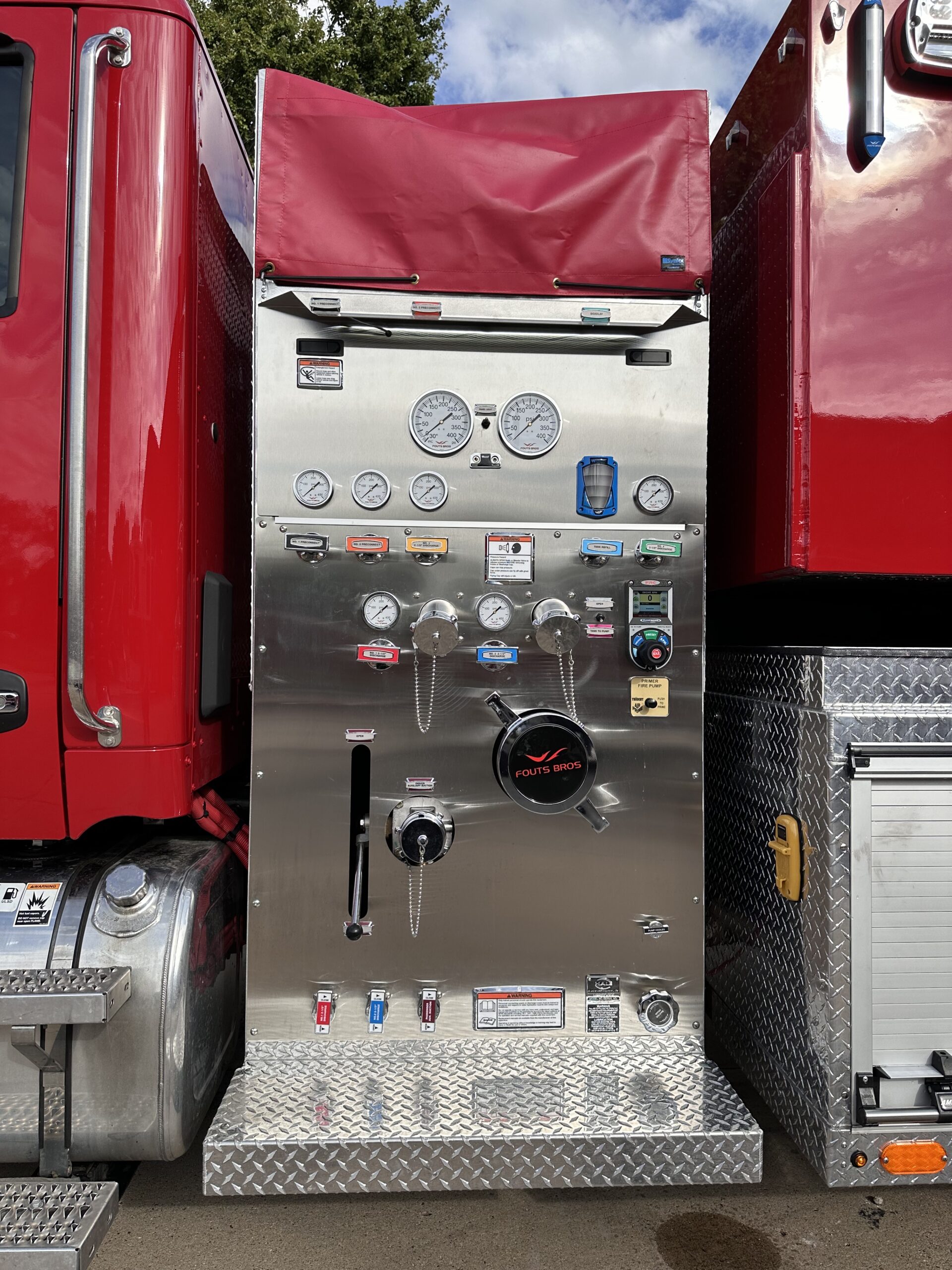

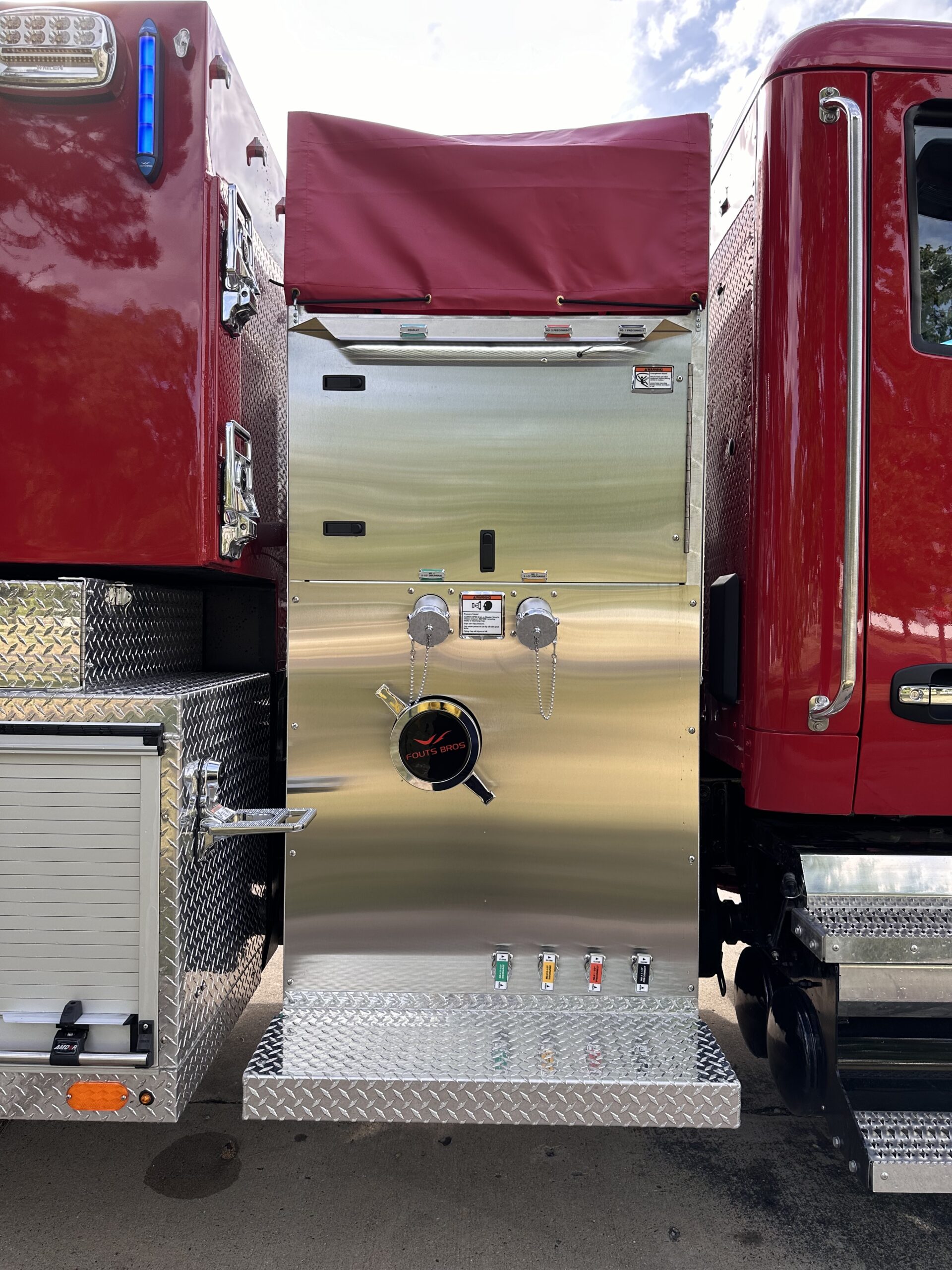

• PUMP PANEL MATERIAL : 14 GAUGE 304L SS, BRUSHED FINISH
• WATER LEVEL GAUGE: ONE (1) INNOVATIVE CONTROLS SOFT-GLO (PUMP PANEL): ONE (1) INNOVATIVE CONTROLS SOFT-GLO (CAB): THREE (3) INNOVATIVE CONTROLS SOFT-GLO (TANK)

TANK INFO

• CAPACITY: 2000 US GALLONS
• DIRECT TANK FILLS: TWO (2) 2.50″, AKRON

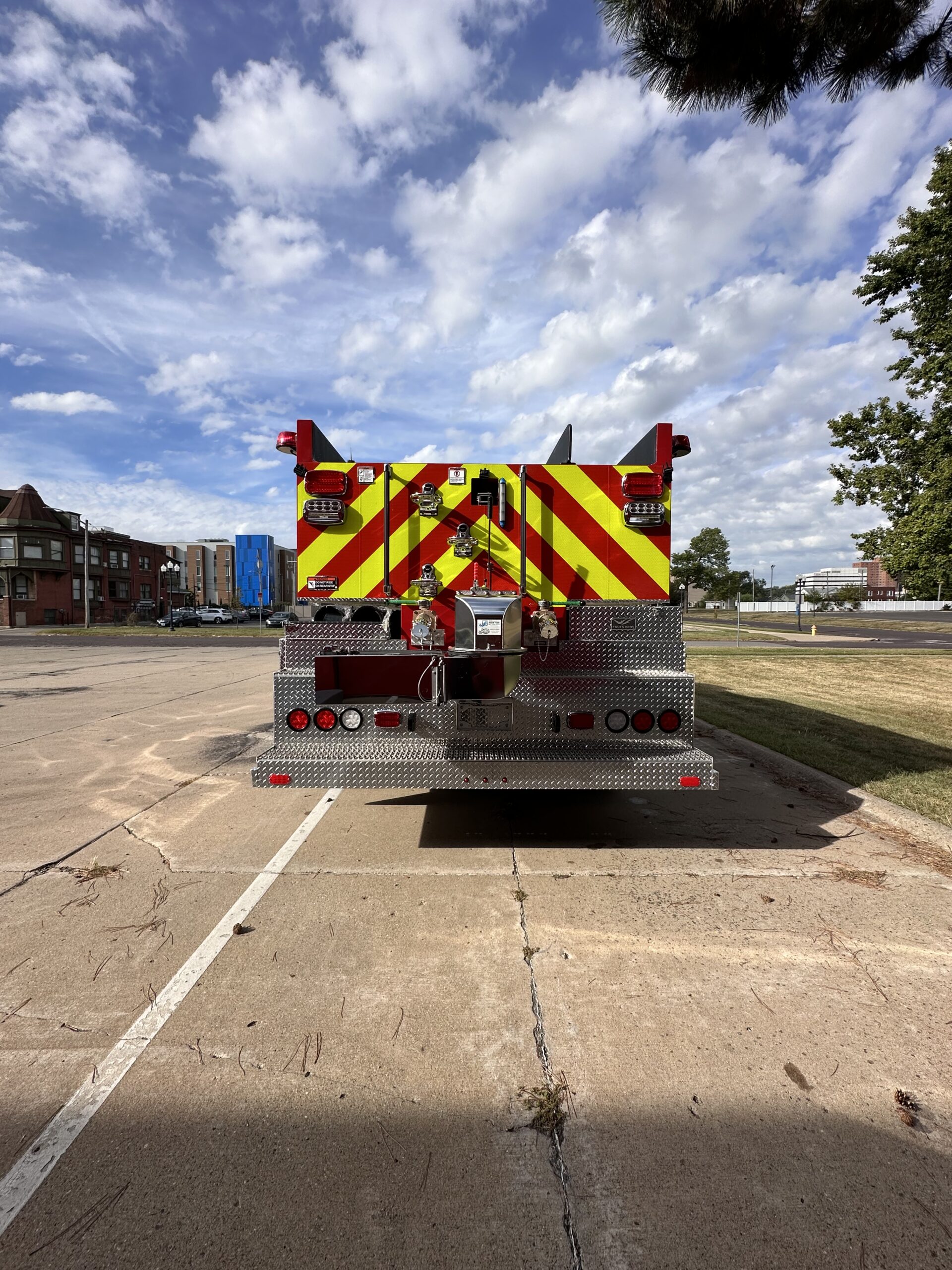

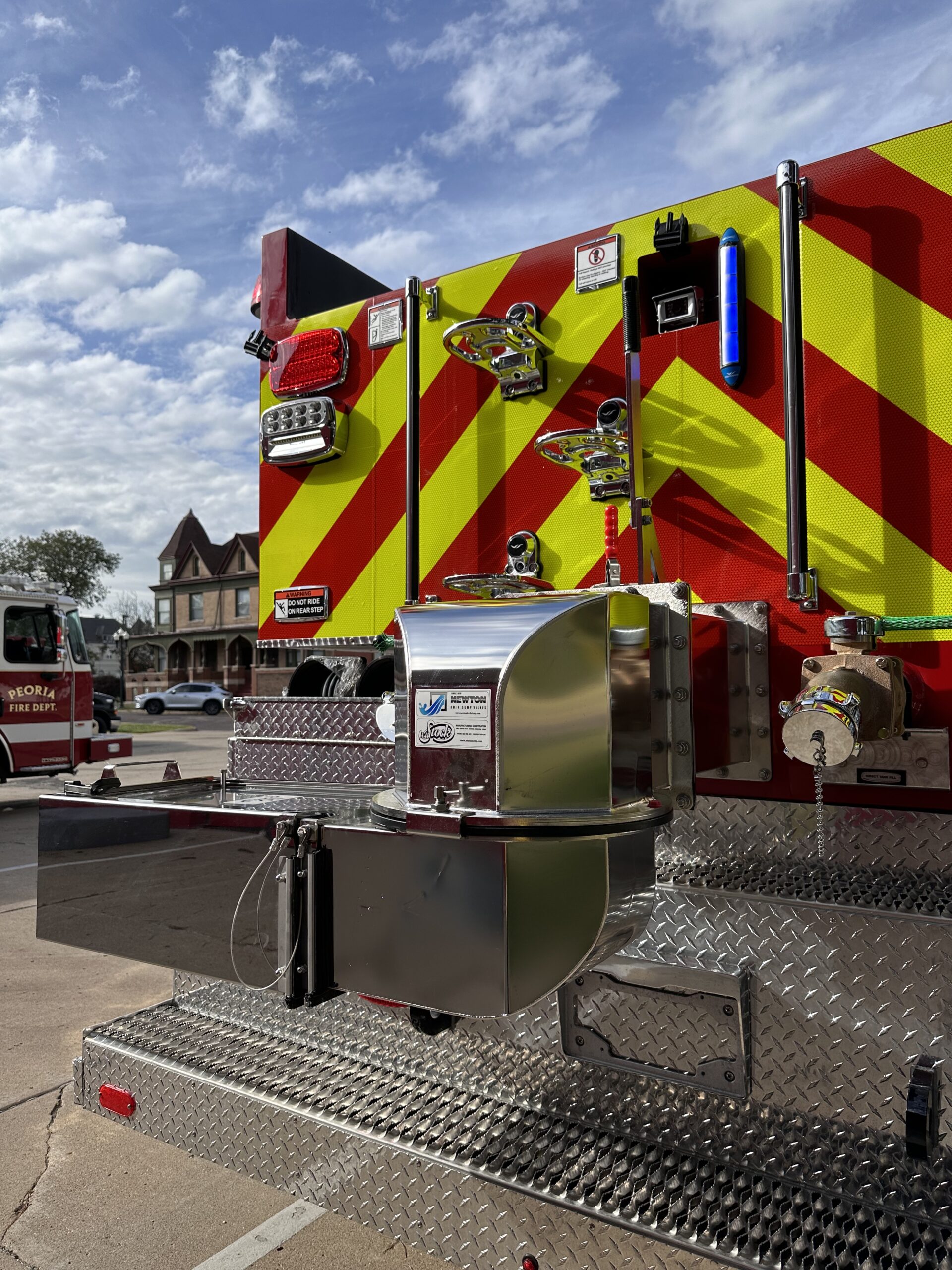

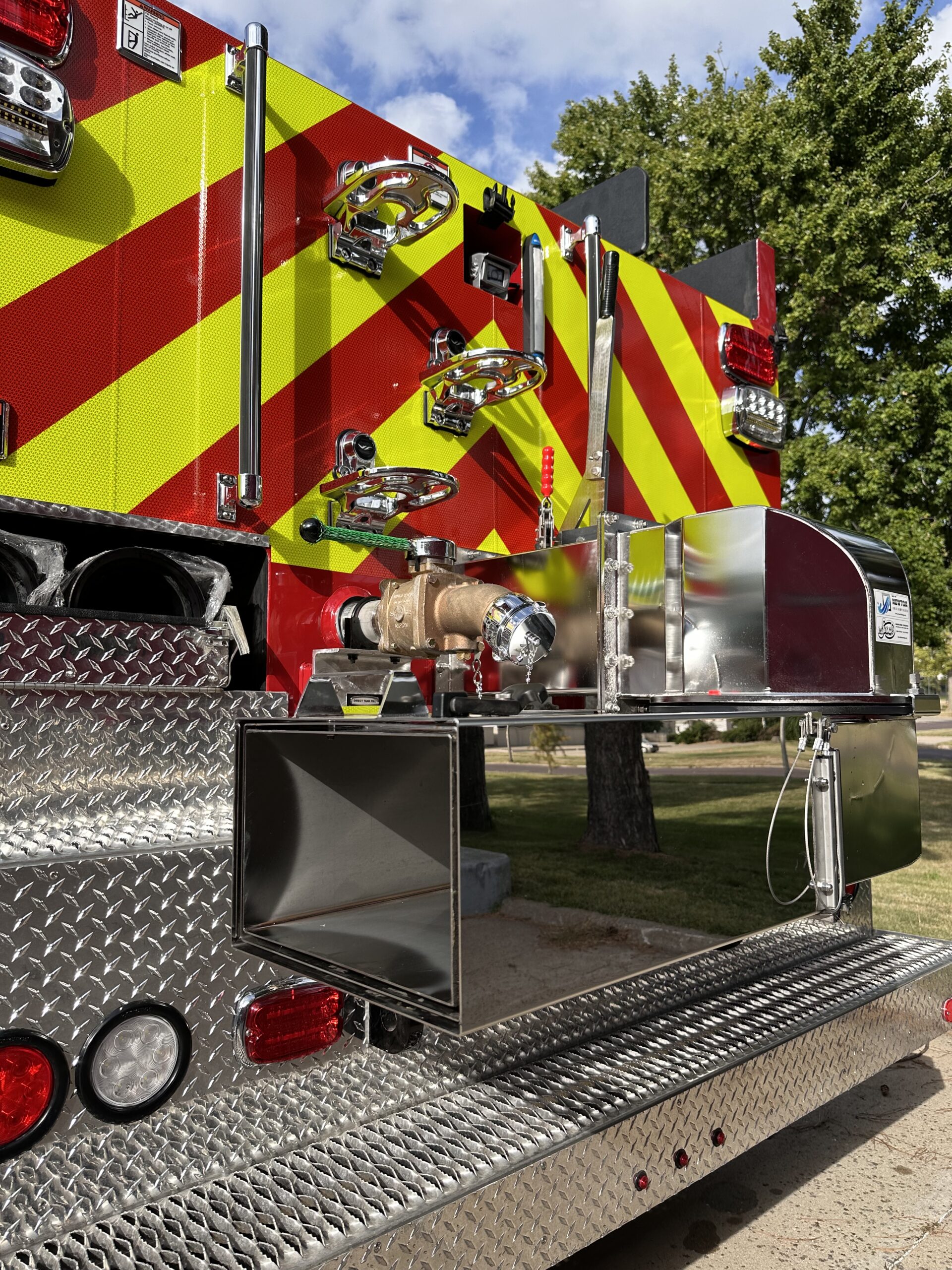

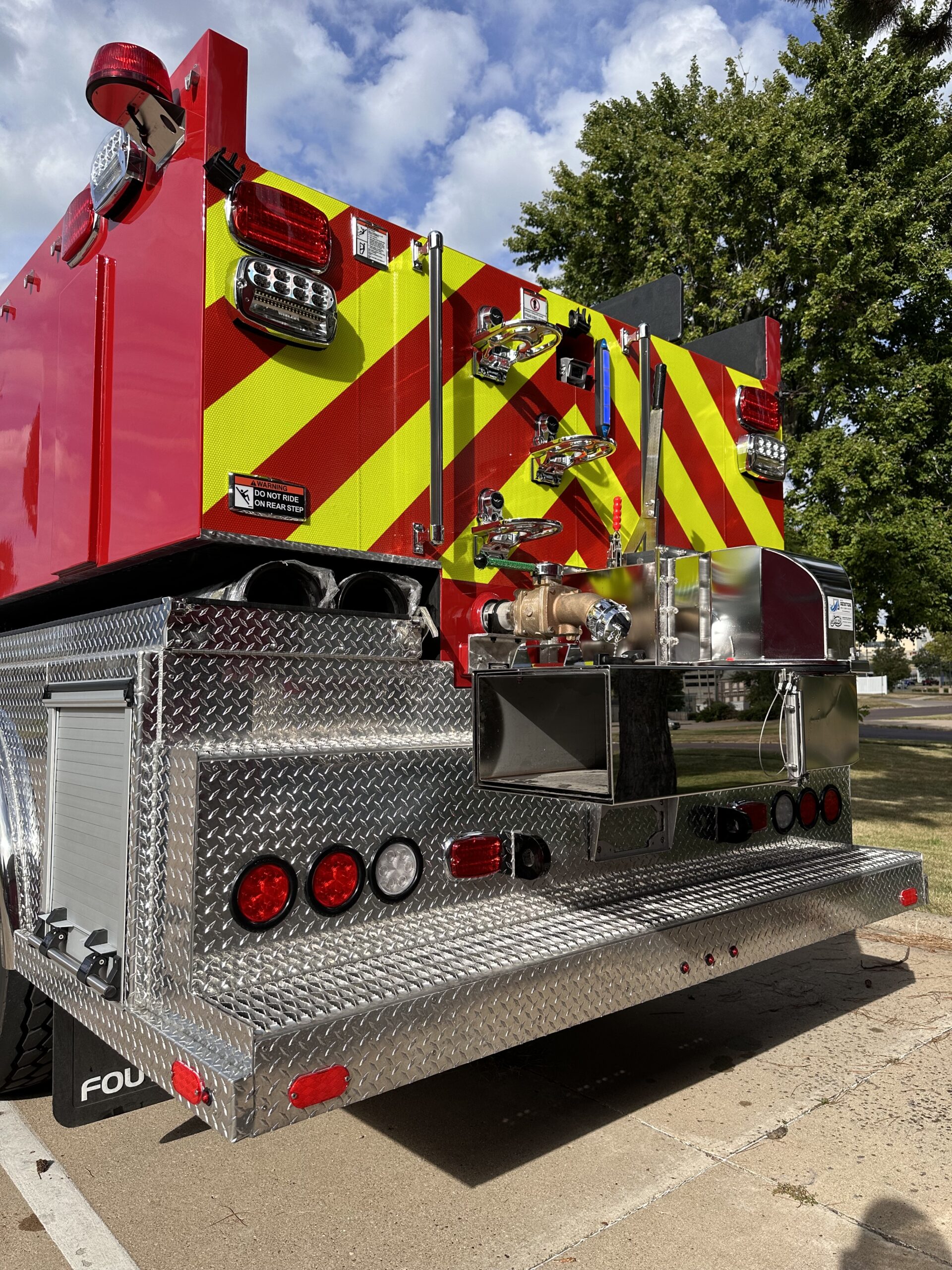

• REAR DUMP SYSTEM: MANUAL WITH SWIVEL & EXTENSION
• HOSEBED COVER: VINYL 18 OZ. RED

BODY INFO

• BODY TYPE: ATP-4-COMPARTMENTS
• DOOR TYPE: AMDOR ROLL – UP DOOR(SATIN FINISH)
• DROP TANK STORAGE: RH
• HARD SUCTION HOSE STORAGE : LH

LH SIDE COMPARTMENTS

• L1: 60.00” W X 26.00” D X 27.00” H = 24.38 CU.FT.
• L2  : 24.00” W X 26.00” D X 27.00” H = 9.75 CU.FT

RH SIDE COMPARTMENTS

• R1: 60.00” W X 26.00” D X 27.00” H = 24.38 CU.FT.
• R2: 24.00” W X 26.00” D X 27.00” H = 9.75 CU.FT.
• TOTAL VOLUME : 68.26 CU.FT.

LOOSE EQUIPMENT

• FOLDING TANK: ONE (1) 2100 US GALLONS
• HARD SUCTION HOSE(S): TWO (2) 6″ X 10′ KOCHEK
